| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | BSNPA20ARC |
| Manufacturer No: | NPA20ARC |
| Delivery: | In Stock: 5-7 Days |
 |

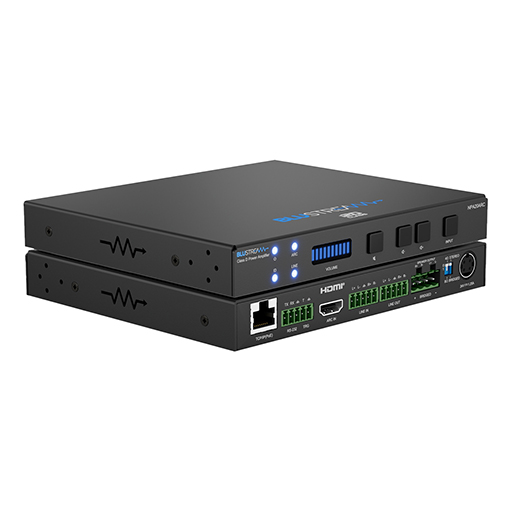

The NPA20ARC is a compact networked power amplifier designed for zone-based audio enhancement where video is also present. With HDMI ARC support, integrated DSP, and flexible control options, it enables simple audio integration directly from compatible displays or analogue sources without the need for a centralized amplifier.
The NPA20ARC delivers 2 x 10W stereo output or 1 x 20W mono output at 4 or 8 ohms, making it ideal for smaller rooms such as bedrooms, meeting spaces, or localized AV zones where higher power amplification is unnecessary.
A dedicated 2-channel HDMI ARC input allows direct audio connection from ARC-compatible displays. CEC control enables volume adjustment and basic control directly from the connected TV, reducing the need for additional control interfaces.

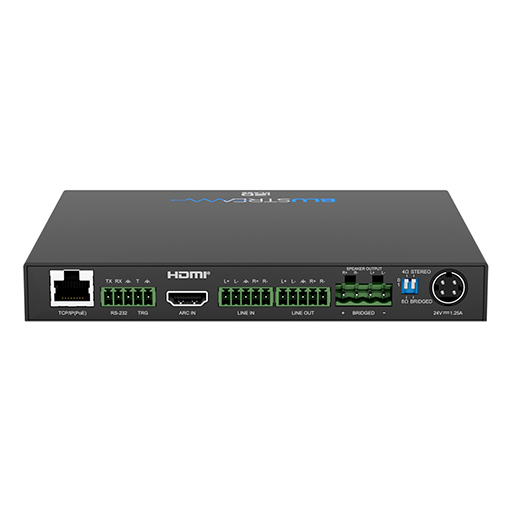

In addition to HDMI ARC, the amplifier supports 2-channel balanced and unbalanced analogue audio inputs and outputs, providing flexibility when integrating external audio source devices.
The NPA20ARC supports power delivery via PoE or PoE+ from a compatible network switch, with the option for local power when required. Output power can be automatically reduced based on available PoE capacity to ensure stable operation.
A master and slave control feature allows up to four NPA20ARC or NPA20ANA amplifiers to be linked together via the analogue audio output, enabling centralized control across multiple zones.
Integrated DSP provides a 31-band equalizer with +3dB to -10dB adjustment, along with audio delay functionality to support lip sync correction when paired with video content.

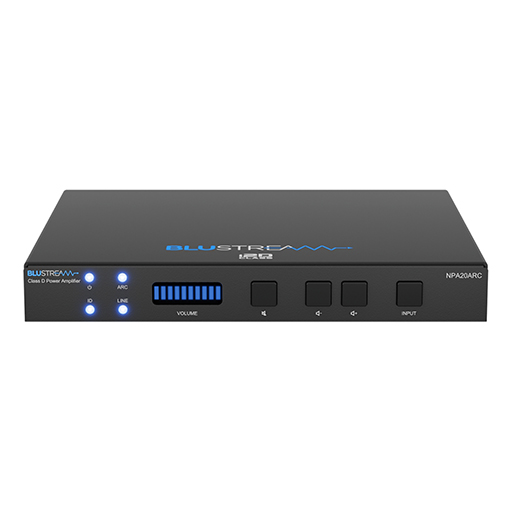

Control options include HDMI ARC (CEC), front panel buttons, RS-232, IP control, a built-in web-GUI, and a local 0V / 5–12V trigger input. An auto standby mode with signal sensing supports efficient power management.
The NPA20ARC is a compact networked power amplifier designed for zone-based audio enhancement where video is also present. With HDMI ARC support, integrated DSP, and flexible control options, it enables simple audio integration directly from compatible displays or analogue sources without the need for a centralized amplifier.
The NPA20ARC delivers 2 x 10W stereo output or 1 x 20W mono output at 4 or 8 ohms, making it ideal for smaller rooms such as bedrooms, meeting spaces, or localized AV zones where higher power amplification is unnecessary.
A dedicated 2-channel HDMI ARC input allows direct audio connection from ARC-compatible displays. CEC control enables volume adjustment and basic control directly from the connected TV, reducing the need for additional control interfaces.
In addition to HDMI ARC, the amplifier supports 2-channel balanced and unbalanced analogue audio inputs and outputs, providing flexibility when integrating external audio source devices.
The NPA20ARC supports power delivery via PoE or PoE+ from a compatible network switch, with the option for local power when required. Output power can be automatically reduced based on available PoE capacity to ensure stable operation.
A master and slave control feature allows up to four NPA20ARC or NPA20ANA amplifiers to be linked together via the analogue audio output, enabling centralized control across multiple zones.
Integrated DSP provides a 31-band equalizer with +3dB to -10dB adjustment, along with audio delay functionality to support lip sync correction when paired with video content.
Control options include HDMI ARC (CEC), front panel buttons, RS-232, IP control, a built-in web-GUI, and a local 0V / 5–12V trigger input. An auto standby mode with signal sensing supports efficient power management.
