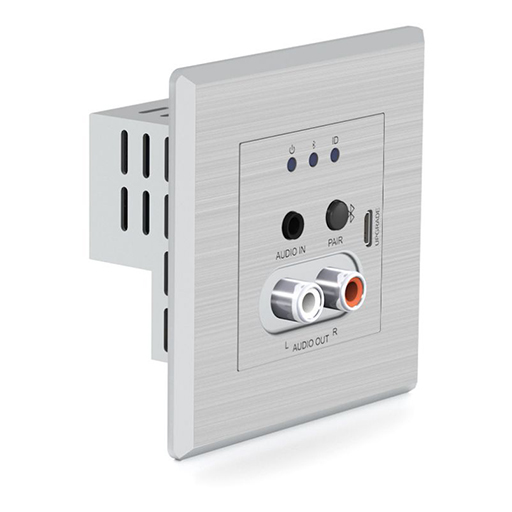

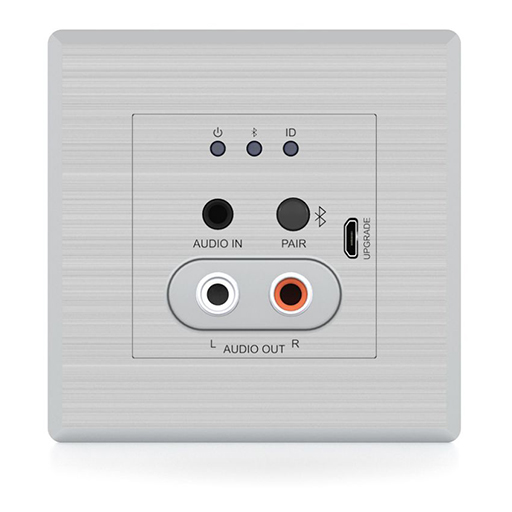

The DA11ABL-WP is a compact multi-input and output wall plate designed to bridge Bluetooth® and analogue audio sources with a Dante® networked audio system. Built for modern AV installations, it provides a clean and reliable interface for wireless and wired audio conversion within distributed digital audio environments.
The DA11ABL-WP allows seamless connection of Bluetooth-enabled devices or analogue audio sources directly into a Dante® audio network. This makes it well suited for BYOD environments where users need instant wireless audio access without additional adapters or converters.
In addition to sending Bluetooth or analogue audio into the network, the DA11ABL-WP also converts two Dante® audio channels back to unbalanced analogue outputs. This enables local audio playback from the network to external amplifiers, powered speakers, or other analogue equipment.
Input sensitivity and output gain can be precisely adjusted using control software, supporting a wide operating range from professional line-level signals to consumer-level devices. This ensures consistent audio performance across different source types.
The DA11ABL-WP supports 44.1kHz, 48kHz, and 96kHz sample rates at 16, 24, or 32-bit depth. Dante® device latency is configurable at 1ms, 2ms, or 5ms using Dante® Controller, allowing optimisation for system size and network conditions.

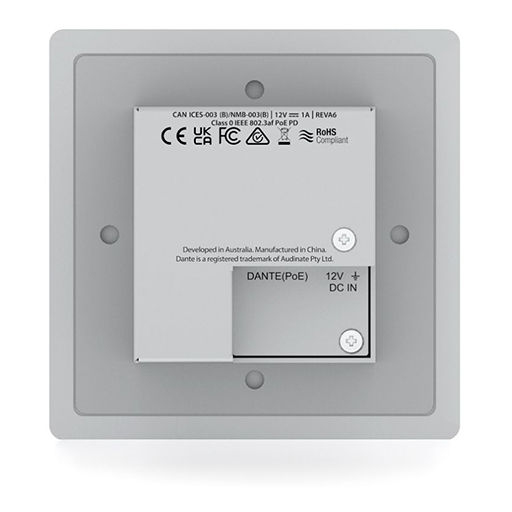

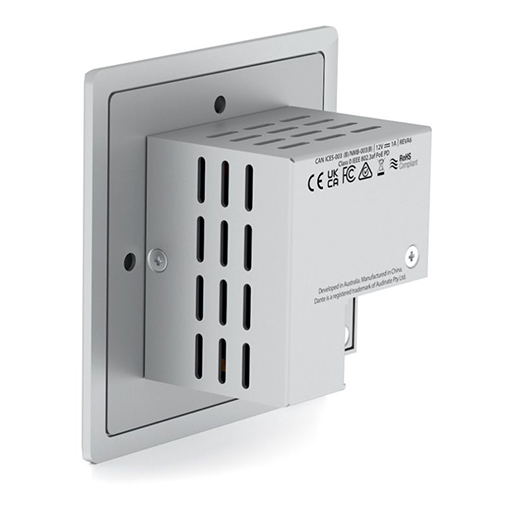

Power is supplied via Class 0 IEEE 802.3af Power over Ethernet from a compatible network switch, reducing the need for additional cabling. For installations without PoE, a 12V DC power option is available. The magnetic faceplate design supports both UK and EU backbox formats for streamlined installation.
The DA11ABL-WP is a compact multi-input and output wall plate designed to bridge Bluetooth® and analogue audio sources with a Dante® networked audio system. Built for modern AV installations, it provides a clean and reliable interface for wireless and wired audio conversion within distributed digital audio environments.
The DA11ABL-WP allows seamless connection of Bluetooth-enabled devices or analogue audio sources directly into a Dante® audio network. This makes it well suited for BYOD environments where users need instant wireless audio access without additional adapters or converters.
In addition to sending Bluetooth or analogue audio into the network, the DA11ABL-WP also converts two Dante® audio channels back to unbalanced analogue outputs. This enables local audio playback from the network to external amplifiers, powered speakers, or other analogue equipment.
Input sensitivity and output gain can be precisely adjusted using control software, supporting a wide operating range from professional line-level signals to consumer-level devices. This ensures consistent audio performance across different source types.
The DA11ABL-WP supports 44.1kHz, 48kHz, and 96kHz sample rates at 16, 24, or 32-bit depth. Dante® device latency is configurable at 1ms, 2ms, or 5ms using Dante® Controller, allowing optimisation for system size and network conditions.
Power is supplied via Class 0 IEEE 802.3af Power over Ethernet from a compatible network switch, reducing the need for additional cabling. For installations without PoE, a 12V DC power option is available. The magnetic faceplate design supports both UK and EU backbox formats for streamlined installation.
