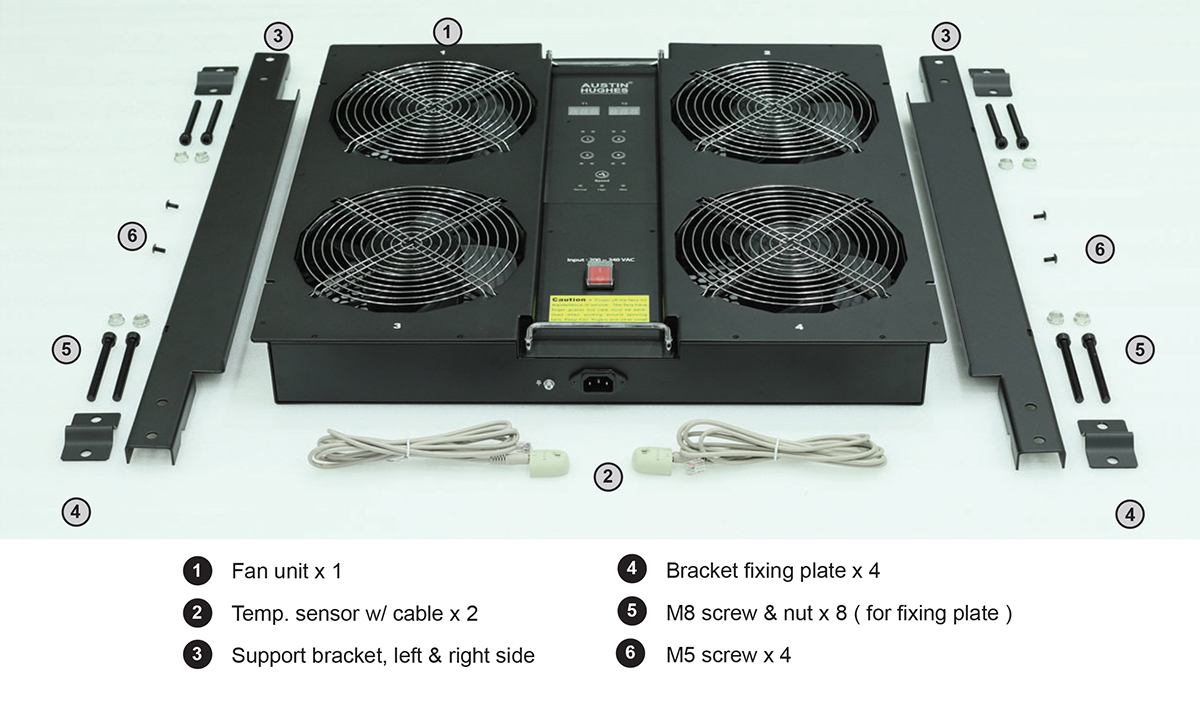

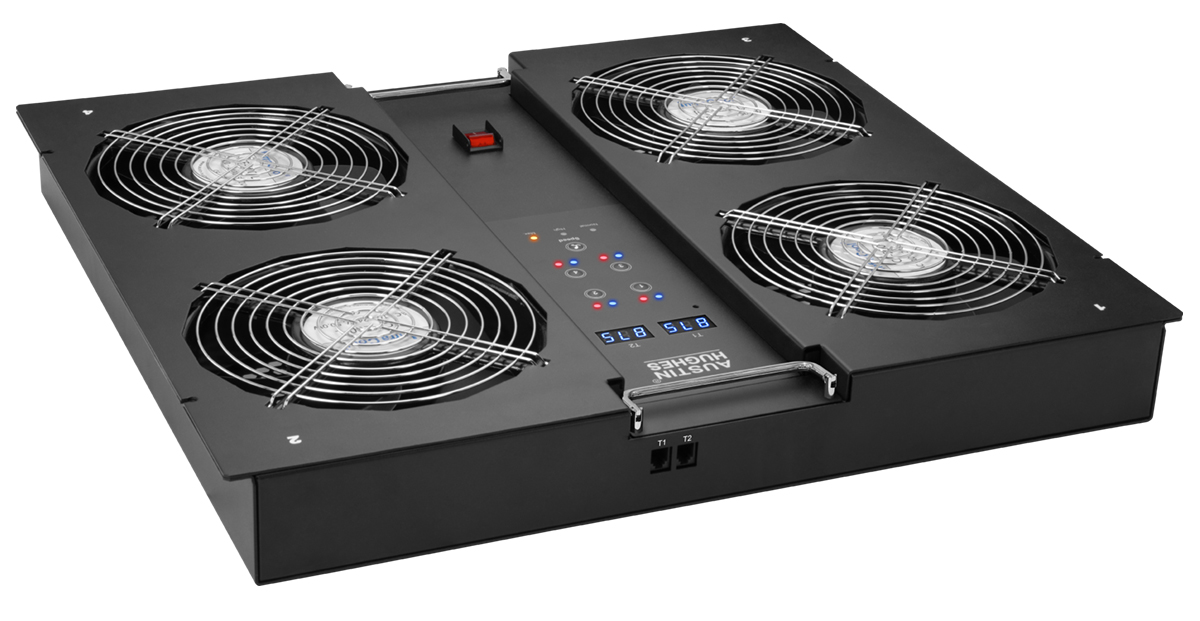

The Austin Hughes F-66.4 Basic Raised Floor Mount Fan Unit intakes Cool Air from the Bottom of the rack. It maximizes aisle containment cooling performance and minimizes hot spots in server racks.
The F-66.4's efficient cooling design is engineered to draw cool air from the raised floor plenum and channel it efficiently through contained aisles into server racks. This approach enhances airflow direction and ensures consistent cooling where it is needed most, especially in high-density deployments.
With an impressive maximum total airflow capacity of up to 2172 CFM at 230V and 2104 CFM at 208V, the F-66.4 supports demanding cooling requirements. Adjustable fan speed settings allow operators to fine-tune airflow based on real-time thermal conditions. (CFM = Cubic Feet per Minute)
Local Control and Monitoring
The fan unit features local control for fan speed adjustment and ON / OFF operation at both the unit and individual fan level. Integrated local temperature monitoring and front panel LED indicators provide immediate visibility of operating conditions.
Built for Continuous Operation
Designed for data center reliability, the F-66.4 offers an MTBF rating of 50,000 hours and complies with CE, FCC, REACH, and RoHS3 standards. Its robust construction supports continuous operation in mission-critical environments.
Compact Raised Floor Form Factor
The unit features a low-profile raised floor mount design, measuring 520 x 540 x 65 mm (21.26 x 20.47 x 2.56 inches). This compact footprint allows seamless integration beneath server racks without disrupting floor layouts or airflow paths.
Key Features:
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
*For complete specifications see the documentation tab above
