| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | APCAPDU9981EU3 |
| Manufacturer No: | APDU9981EU3 |
| Delivery: | In Stock: Next Day |
 |

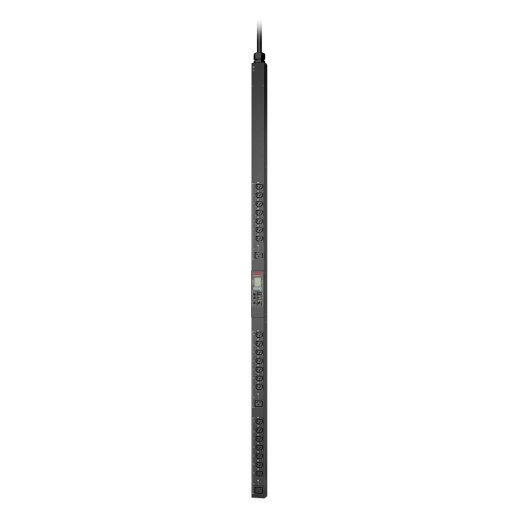

With industry-leading reliability, manageability, and security, APC Switched Rack PDUs provide advanced load management plus on/off outlet-level power cycling and sequencing control.
9000 series PDUs provide Gigabit Ethernet to enhance and standardize network connectivity across all assets in the data center. All other models provide 10/100 Ethernet connectivity.
Define alarm thresholds to avoid overloaded circuits. Network and visual alarms inform the user of potential issues.
Providing the same level of accuracy as a utility company meter by adhering to IEC 62053-21 class 1, 1% metering accuracy provides confidence for billing based on power usage and ensures precise capacity planning and threshold monitoring. Available on 9000 series PDUs.
9000 series PDUs include an APC Network Management Card with secured interfaces and a modified password policy for improved security.
Full-featured network interfaces provide management via Web, SNMP, and Telnet. Allows remote access and configuration to save time, with firmware upgrade capability for future enhancements.
Connect and manage multiple PDUs from one IP address to simplify deployment and reduce network costs. Manage up to 32 PDUs (9000 series) or 4 PDUs (8000 series).
Supports up to four access levels—Administrator, Device User, Read-Only User, and Network-only User—each with username and password authentication.
Outlet sequencing can be configured to group outlets to power up or down together for operational flexibility.
Provide increased availability by maintaining trip current consistency over a wide temperature range.
Without requiring special power cords, these outlets provide up to twice the holding force to reduce accidental disconnect risk on 9000 series PDUs.
9000 series PDUs operate in ambient temperatures up to 60°C (140°F) at full load, ensuring reliability in high-density deployments. Other models allow up to 45°C (113°F).
The integrated Network Management Card/Display Module can be replaced in the field to minimize downtime.
The product family includes a variety of input/output connections to distribute 120V, 208V, or 230V power to multiple outlets. Options allow adaptation to varying power requirements, supporting up to 17.3kW with a single branch whip.
Available on select 9000 series PDUs, these hybrid outlets operate at 60°C, are compatible with C14/C20 cords, and support future high-temperature-rated devices using C16/C21 cords.
Upgrade firmware via network download for future product enhancements, eliminating the need for product replacement. (Networked units only).
Compatible with the optional APC USB WiFi Device for wireless connectivity, simplifying setup and configuration (9000 Series PDUs only; available post-March 2021).
Available in horizontal, vertical, and toolless-mount varieties, placing power directly where needed—at the rack level near the equipment.
Supply power from one branch whip to multiple devices, simplifying installation and saving time and cost with a single power feed.
Providing the same level of accuracy as a utility company meter by adhering to IEC 62053-21 class 1, 1% metering accuracy provides peace of mind to use these PDUs to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Available on 9000 series PDUs.
9000 series PDUs include APC Network Management card with security features including secured interfaces and a modified password policy providing peace of mind.
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU. Manage up to 32 PDUs with 9000 series and up to 4 PDUs with 8000 series.
9000 series PDUs provide Gigabit Ethernet to enhance and standardize network connectivity across all assets in the data center. All other models provide 10/100 ethernet connectivity.
Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Seamless integration of one or many PDUs including alerts and control with EcoStruxure IT. Allows IT and data center professionals to monitor and manage all of their critical IT infrastructure on-premise, in the cloud, and at the edge from anywhere.
Outlet power sequencing can be configured to group any combination of outlets to power up or down together providing flexibility.
Provide increased availability by maintaining trip current over a wide temperature range.
With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.
9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).
Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.
Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only).
Compatible with the optional APC USB WiFi Device for cableless connectivity over WiFi that speeds deployment and simplifies moves, adds, and changes (9000 Series PDUs only - expected to be available on units manufactured after March 2021).
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
