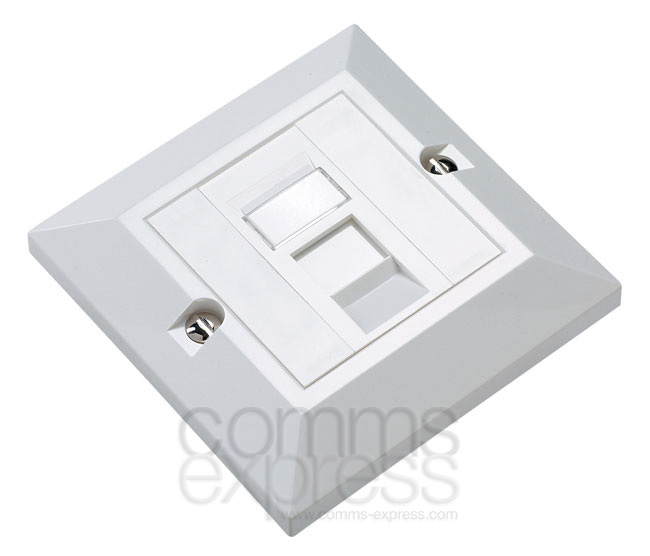

    1x RJ45 Cat6 Module in Singlegang Faceplate

    Cat6 UTP RJ45 1 in 1 Module/Faceplate

    A Single Gang Faceplate complete with one Data Module, centralised in the faceplate using blanks to enable future upgradeability to a double outlet. Individual port labelling is also quick and easy with standard Excel outlet slide in fields incorporated into the design..

    Excel Category 6 UTP Modules meet all current draft specifications for Category 6 connecting hardware. When installed with Excel Category 6 cables and patch panels full link and channel compliance can also be achieved. These outlets also provide backward compatibility with the Category 5 and 5e systems and interoperability with alternative Category 6 offerings. Product design is based around the established Category 5e module and provide quick and easy termination using LSA compatible tooling. Port identification can be completed by use of either the integral slide label or simple application of an adhesive icon

    Module Features
    • Supports Gigabit Ethernet
    • Category 6
    • 25 x 50mm Euromod Size
    • Power Sum Compliant
    • Backward Compatible
    • LSA Style Termination Blocks
    • Built in Slide Label System
    • One Piece, Snap-in Design
    • Integral Cable Tie Position

    Excel Module

    Performance Overview

    Excel Category 6 data outlets are manufactured and tested to the Category 6 performance standards. A range of performance characteristics are tested upto 250MHz including return loss, attenuation and near and far end crosstalk (NEXT and FEXT) for which both worst case and power sum tests are completed. Actual performance far exceeds the required standard - when tested in isolation and in circuit - resulting in significant headroom for even the most demanding of applications.

    As well as providing link and channel compliance - when installed with Excel category 6 components - with the aforementioned specification - the outlet is also backward compatible with Category 5 and 5e components.
