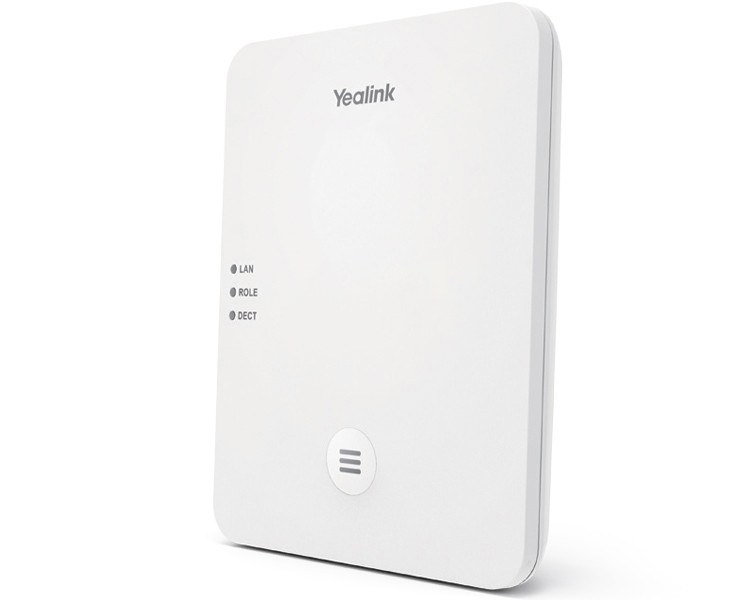

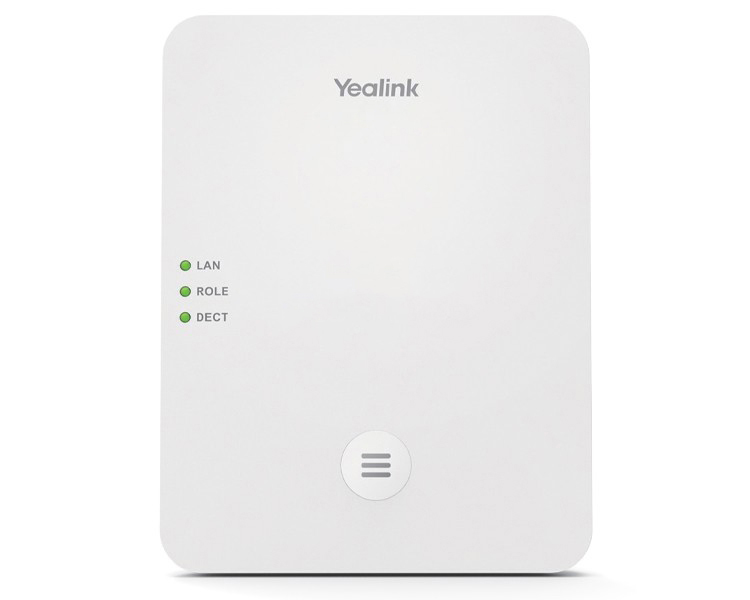

Yealink W80DM Cordless IP Multi-Cell DECT Manager

The Yealink W80 DECT IP Multi-Cell System, consisting of two elements - a base station W80B and a DECT Manager W80DM, is designed to create an extremely scalable and reliable wireless DECT coverage solution for organizations of any size and shape.

The W80DM supports up to 100 handsets and 100 simultaneous calls, ensuring one call in each handset.

The system can work with Yealink W53H, W56H, W57R, W59R, W73H, W78H, WH62, WH63, CP930W, CP935W and DD Phones, with seamless roaming and handover of calls, making mobile communication in and between each zone possible.

The W80DM has a compact design with full-duplex technology and Opus providing an elaborate audio experience.

Cordless DECT IP Multi-Cell System:

• Seamless handover and roaming
• Up to 100 parallel calls
• Up to 30 base stations
• Up to 100 handsets
• Up to 100 SIP accounts
• Supports XML/LDAP/Remote Phonebook
• Supports Xsi Directory
• DECT radio coverage up to 50 m indoors and 300 m outdoors
• Supports Opus
• Supports IPv6
• Supports PoE

Compatible with Yealink W56H/W53H (version x.85.0.45 or later), W73H (version 116.85.0.25 or later), W78H (version 16.85.0.5 or later), CP930W (version 87.85.0.45 or later), W59R (version 115.85.0.45 or later), W57R (version 118.85.0.5 or later), CP935W (version 149.86.0.10 or later), T54W+DD10K (version 96.85.0.95 or later) and DD Phone (version 66.84.0.115 or later)

Yealink DECT technology is based on CAT iq2.0, which focuses on high-quality Audio VoIP (wideband), and low-bitrate data applications. (However, we are not compatible with any third-party DECT devices - base station, handset, etc.)

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)
