USB KVM Cat5 Extender

Cyberview CV-S101 VGA USB CAT6 KVM Extender - CAT5/6 cable up to 150 m

The CyberView CV-S101 CAT6 KVM Extender extends VGA and USB-based signals over a single CAT5/6 cable up to 150 meters away. The remote user (keyboard, monitor, and mouse) connected to the receiver, can be up to 150 metres from the source / PC.

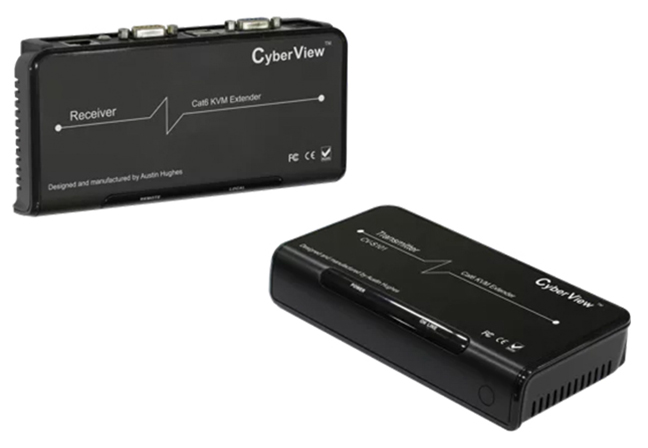

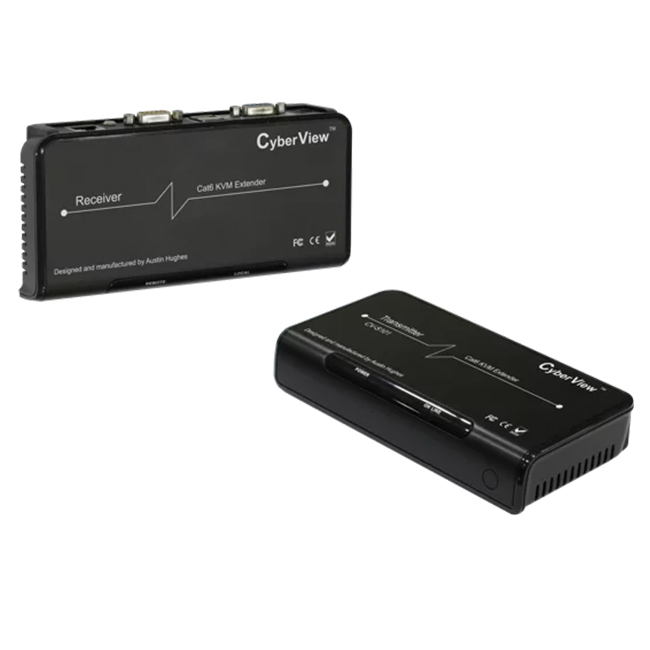

The CV-S101 KVM CAT6 Extender includes a transmitter-receiver pair that enables you to locate a source / PC in a clean secure area and access the it from any convenient, remote location.

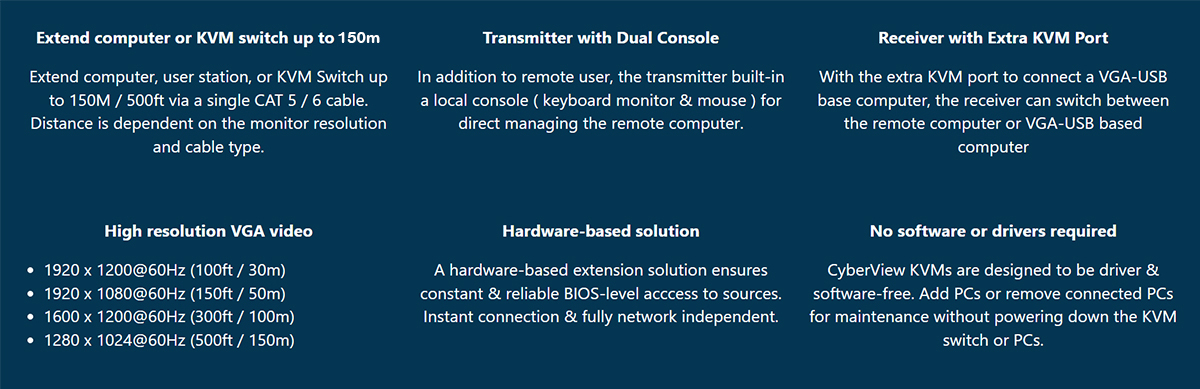

Key Features:

• Allows remote access of up to 150m away via CAT5, CAT5e, CAT6 UTP cables
• Dual console operation - control your system from either the local or remote keyboards, mice and monitors
• Fully automatic KVM sharing on first-come first serve basis
• Displays video to both local / remote side simultaneously
• Compact desktop size
• Plug-n-play - No software installation needed
• High video resolution - up to 1600 x 1200
• Multi-platform
• Dual user - Local pass-through access
• Pure hardware solution makes it network independent
• 2 Years Standard Warranty - Expandable up to 5 years

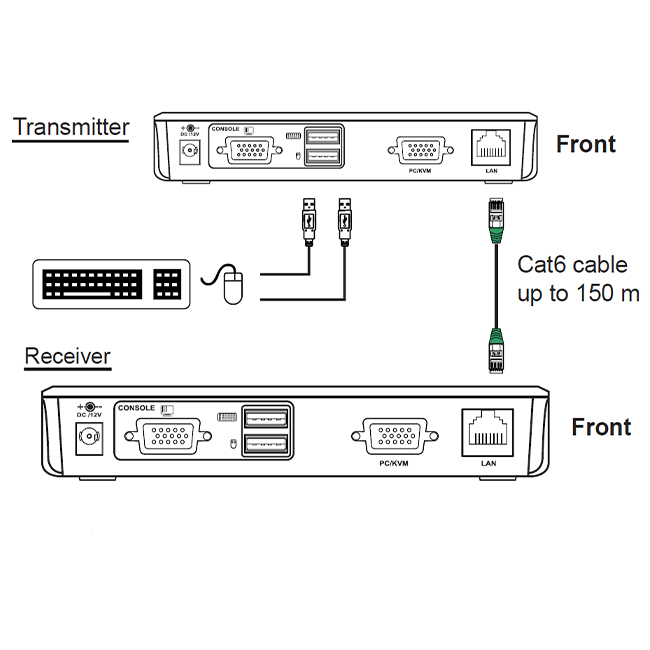

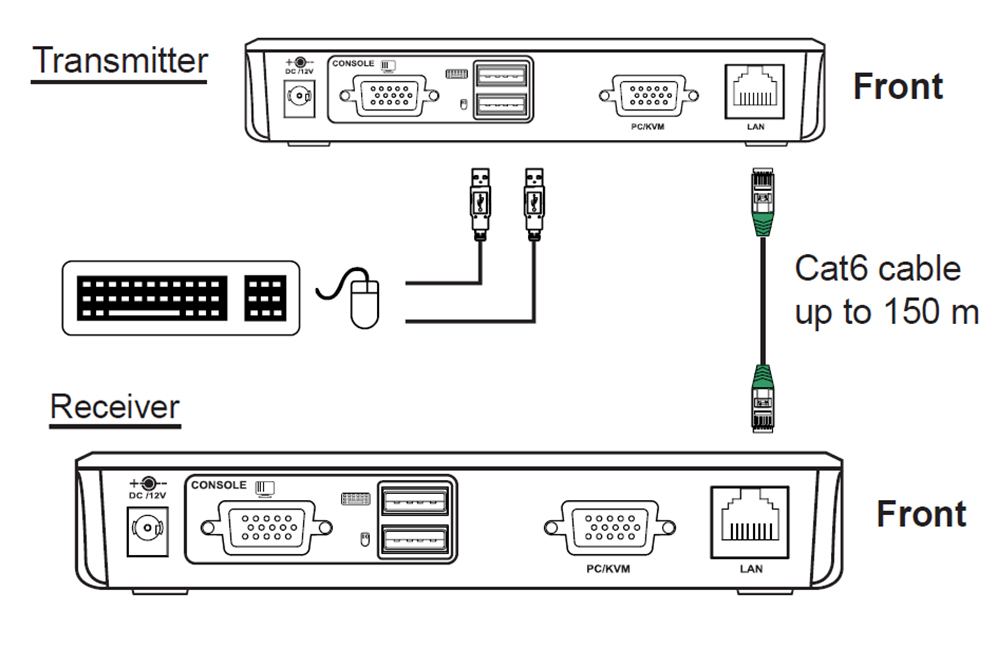

CV-S101 can be used in various ways - extend distances between connected computers, KVM switches, and user consoles:

• Application I - Extending the KVM console port to 150 meters
• Application II - Extending the computer to KVM port to 150 meters
• Application III - Extending the computer up to 150 meters
• (see datasheet for detailed diagrams)

Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.

Package Contents:

• 1 x S101-T Cat6 KVM Transmitter
• 1 x S101-R Cat6 KVM Receiver
• 1 x CE-6 6ft VGA USB/PS2 KVM cable
• 1 x Power adapter & Power cord
• 2-Year standard warranty - upgradable up to 5 years

*For complete specifications see the documentation tab above
