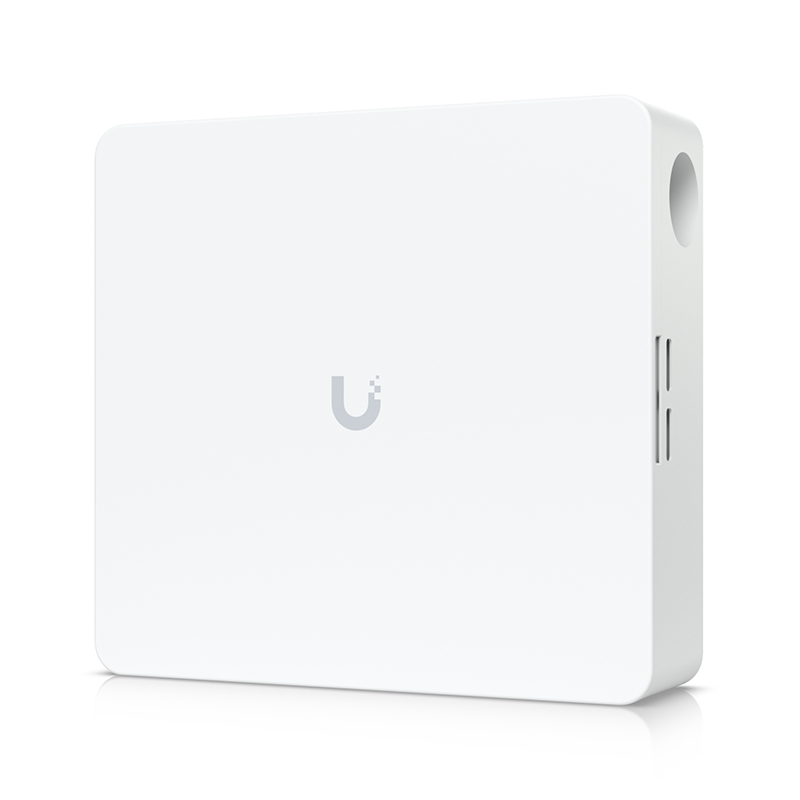

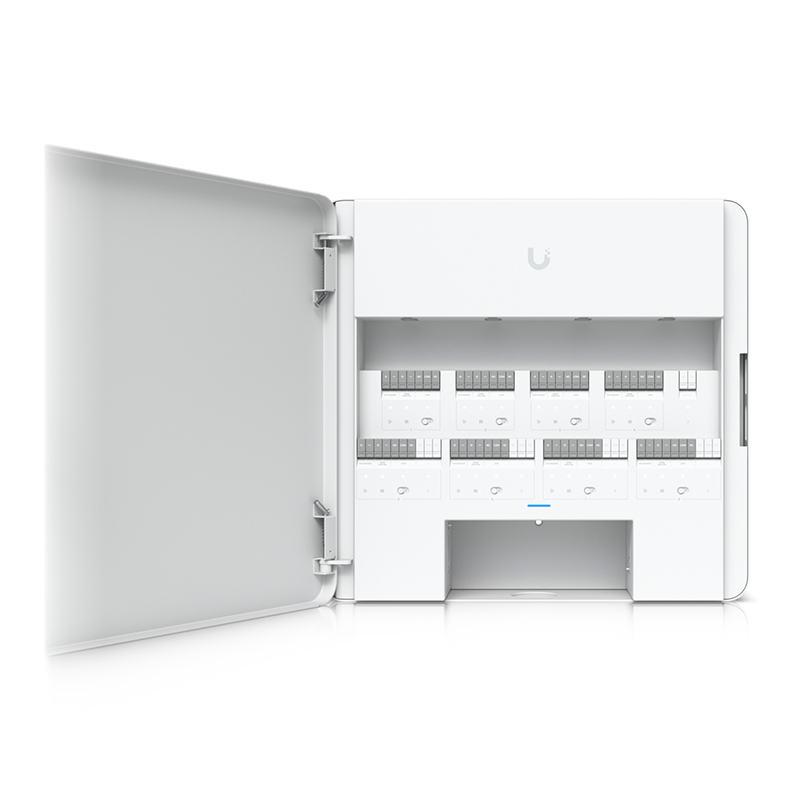

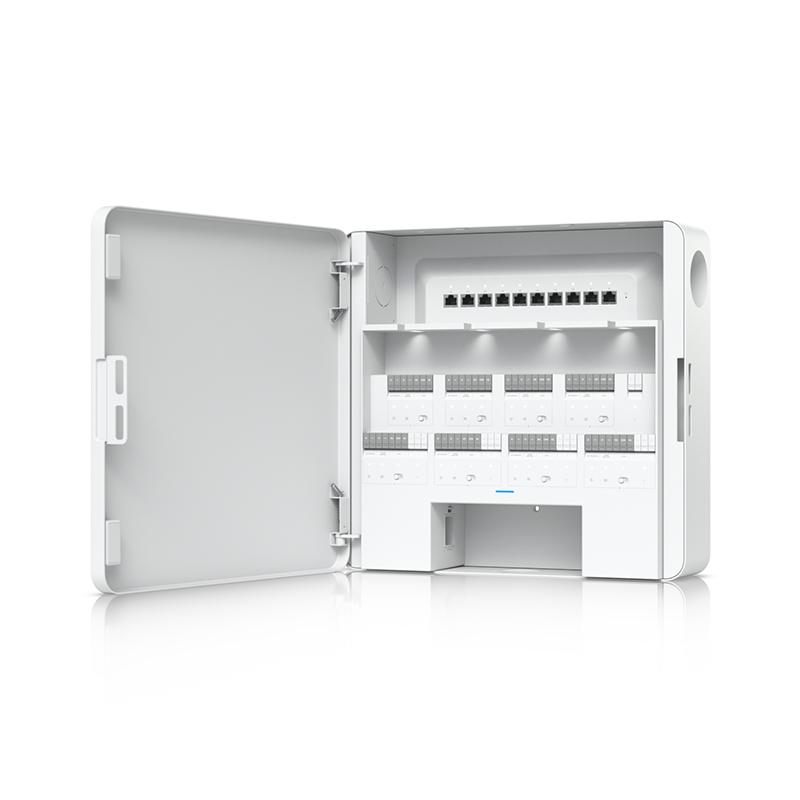

Ubiquiti EAH-8 Enterprise Access Hub

Manage access for up to eight doors with the Ubiquiti EAH-8 UniFi Enterprise Access Hub. This high-performance controller simplifies entry and exit control for your entire facility. Even during power outages, the EAH-8 keeps things running smoothly thanks to its integrated PP45 cable for battery backup. Plus, configuration and management are a breeze using a single web interface.

Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.

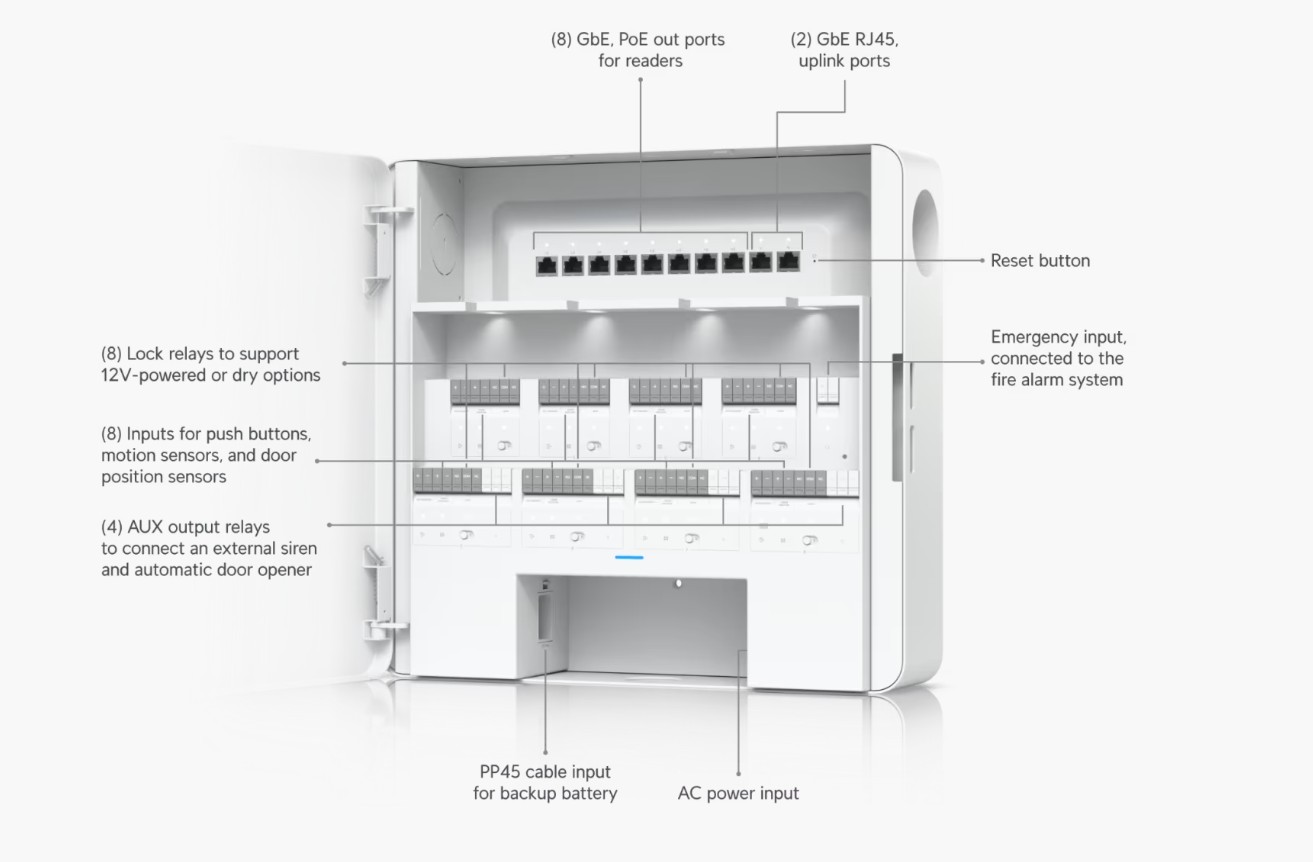

Features

• (8) Lock terminals (12V or Dry)
• (8+8) Inputs for request-to-exit devices and door position sensors
• (8) PoE ports for Access Readers
• (4) AUX terminals for chimes, sirens, or door openers
• (1) Battery backup input (32–48V)

Specifications

Mechanical

• Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1")
• Weight: Device: 9.1 kg (20 lb), Mount: 624 g (1.4 lb)
• Enclosure Material: SGCC housing with PC cover
• Mounting Material: SGCC wall mount plate

Hardware

• Networking Interface: (10) 10/100/1000 Base-T
• Power Method: Universal input, 100–240V AC, Max. 4.4A, 50/60Hz, 32–48V DC Lead Acid Battery, Max. 7.5A @32V
• Power Supply: AC/DC, internal
• Max Power Consumption: 240W
• PoE Interface: (8) PoE (Pins 1, 2+; 3, 6-)
• Total Available PoE: 60W
• Max PoE Per Port: 15.4W
