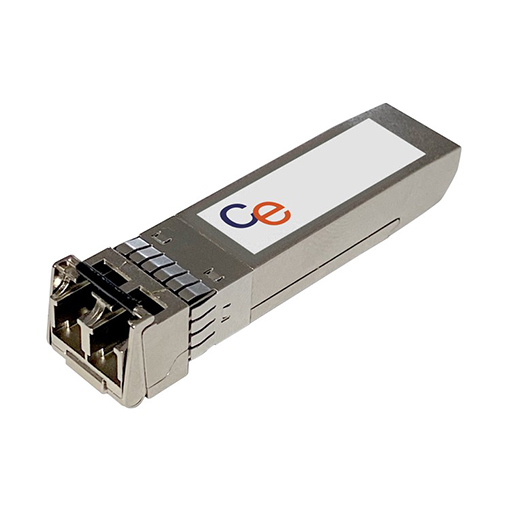

Ubiquiti Compatible UACC-OM-MM-10G-D-2 Transceiver 2 x SFP+ 10GBase-SR (850nm MMF 300m)

The CE UACC-OM-MM-10G-D-2 Ubiquiti Compatible Transceiver provides 10Gbps multimode fibre connectivity using 850nm optical transmission and duplex LC UPC connectors. Supplied as a 2-pack, these SFP+ modules support 10Gbps connections. They are suitable for 10GBASE-SR network connections and support digital optical monitoring for checking transceiver operating parameters.

Key Features of CE Ubiquiti Compatible Transceiver

• 2-pack of 10G multimode SFP+ transceivers
• 10GBASE-SR connectivity
• 850nm transmit and receive wavelength
• Up to 300m over OM3 multimode fibre
• Up to 400m over OM4 multimode fibre
• Duplex LC UPC connectors
• Supports 1Gbps and 10Gbps data rates
• Digital optical monitoring support

10G Multimode Fibre Connectivity

The transceivers use 850nm optical signalling to provide high-speed connectivity over multimode fibre. The modules support 10Gbps operation and can reach up to 300m using OM3 fibre or 400m using OM4 fibre.

Duplex LC Connectivity

Each SFP+ module uses a duplex LC UPC connector for separate transmit and receive paths over multimode fibre. The compact SFP+ form factor allows the modules to be installed in compatible SFP+ network interfaces.

Digital Optical Monitoring

Digital optical monitoring provides access to operating information from the transceiver when supported by the host equipment. The modules have a maximum power consumption of 0.8W and operate from 0°C to 70°C.
