TREND Networks NaviTEK NT Plus with Touchscreen

The new NaviTEK NT is a network tester for troubleshooting and maintenance of active and passive copper and fibre networks.

Incorporating an improved graphical interface NaviTEK NT allows network technicians to pinpoint and solve network connectivity issues faster than ever before. Subsequently, tests can be saved as pdf reports and shared with colleagues and clients using the free TREND AnyWare™ app.

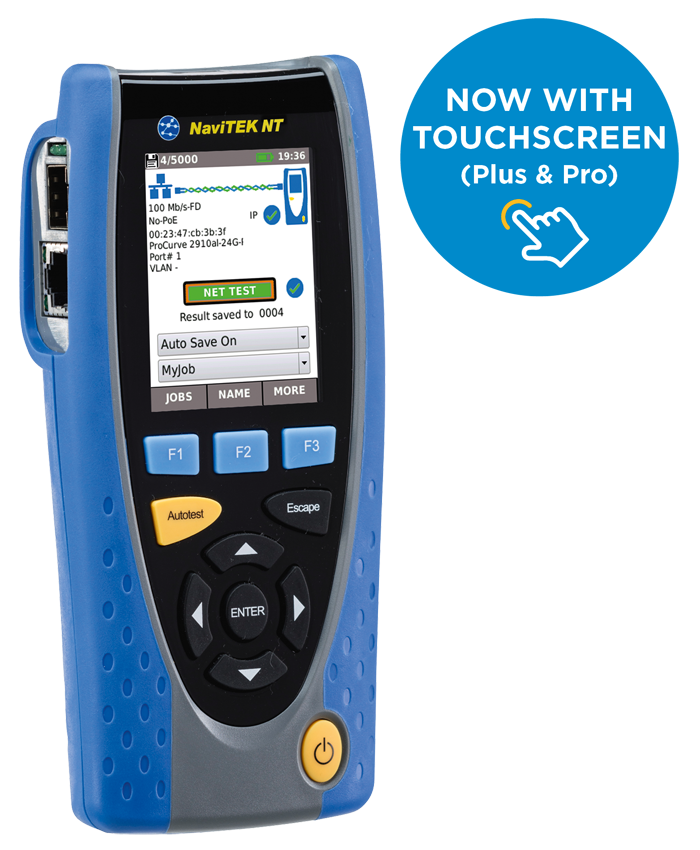

• Now includes a touchscreen
• Network troubleshooter (copper/fibre)
• PoE, service detection and port information
• Real time display of network traffic
• Test storage and PDF reporting
• Cable tracing/distance to fault (TDR)

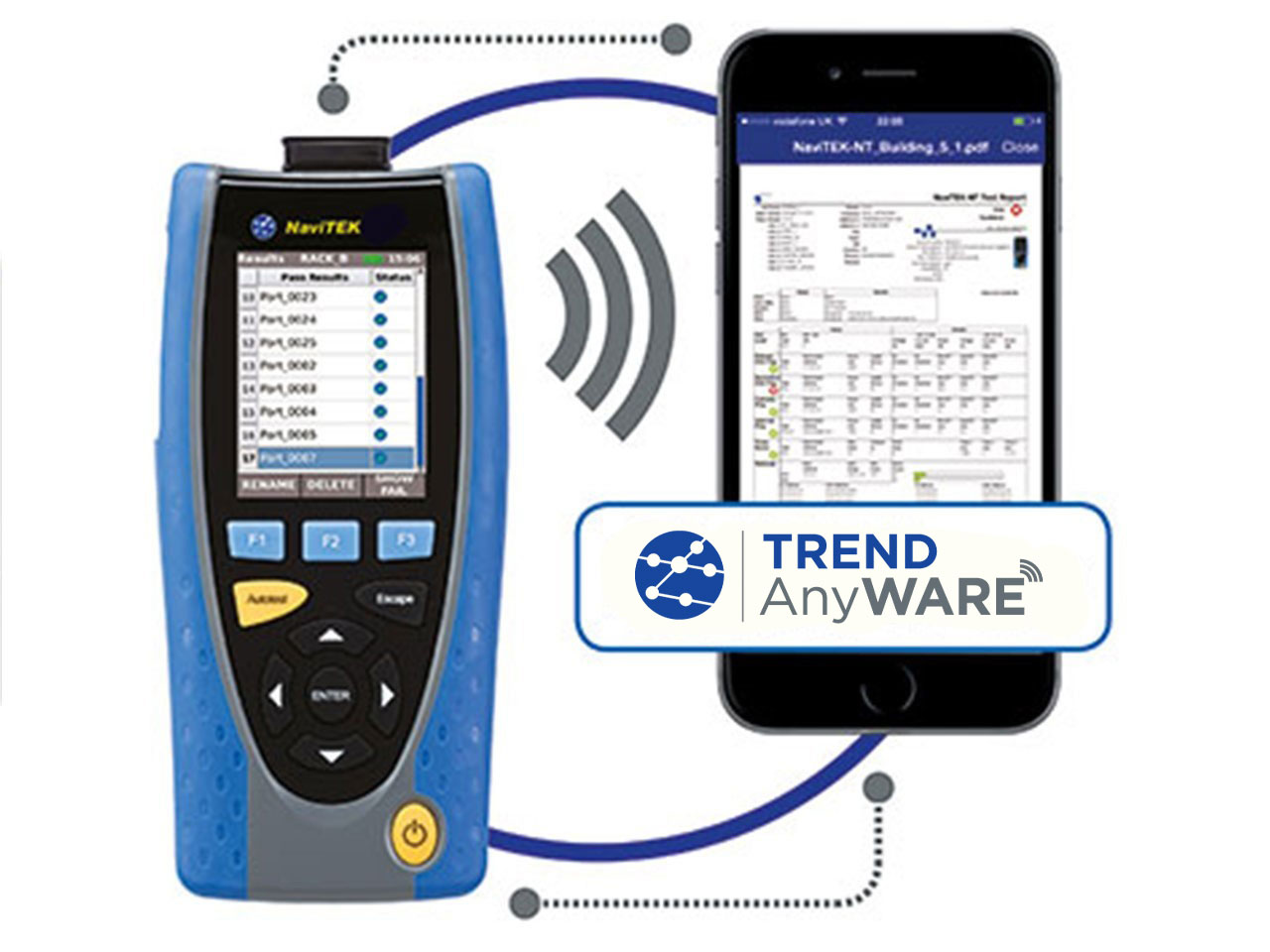

• Supports TREND AnyWARE App

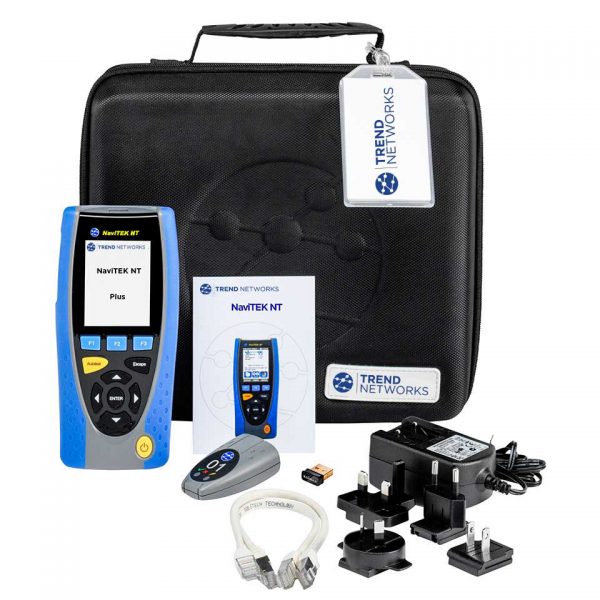

Kit Contents

1x NaviTEK NT Plus test unit with Touchscreen, 1x remote unit No. 1, 1x rechargeable power module 1x PSU EU/UK/US adapters, 2x patch cables - 30cm, Cat. 5e STP, USB Wi-Fi adapter, 1x quick reference guide, 1x carry case

---

---

Features

Performs tests for copper cabling and networks, including:

• Display network configuration - IPv4 /IPv6 compatible
• Advanced wiremap for miswires, split pairs, opens and shorts
• Distance to opens and shorts (TDR)
• PoE/PoE+ detection
• Tone generator for cable tracing
• Ping and Traceroute testing
• Hub blink for port identification
• DHCP client
• Switch detection - 10/100/1000 Mb/s
• User-exchangeable RJ45 inserts
• Support for up to 12 wiremap remotes
• Backlit colour screen
• Autotest button performs a suite of network tests
• Network Probe provides detailed port and network information of each device
• Port identification using EDP/CDP/LLDP protocols
• VLAN detection and support
• Network scan
• Traffic utilisation bar graph
• Internal memory for 5000 test reports
• Generate test reports (PDF or CSV)
• Sent test reports from your mobile device using the free TREND AnyWARE App
• Network troubleshooter (copper only)
• PoE, service detection and port information
• Real time display of network traffic
• Test storage and PDF reporting
• Cable tracing/distance to fault (TDR)
• Supports TREND AnyWARE App

Today, network technicians have a broad selection of software troubleshooting tools at their disposal and whilst useful in certain situations and environments they do have limitations. NaviTEK NT on the other hand offers a comprehensive suite of test and troubleshooting functionality only found on dedicated hand-held testers:-

• Copper test interface
• Fast detection of link and IP information including duplex, speed, port ID, VLAN, DNS, DHCP, Gateway status and IP address
• Detects services such as ISDN, POTS and PoE
• Accurate wire mapping including length measurement and distance to fault
• Rugged, compact design permits use in confined spaces
• Not susceptible to virus and malware attack
