TP-Link TL-SG3428X-M2 JetStream 24-Port 2.5GBASE-T L2+ Managed Switch

The TL-SG3428X-M2 is a powerful JetStream Managed Switch featuring 24 ports at 2.5 Gbps speed and 4 lightning-fast 10 Gbps SFP+ slots. Integrated with Omada SDN for seamless centralized management and robust security features.

Features

• 2.5 Gbps Speeds: 24× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
• 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.

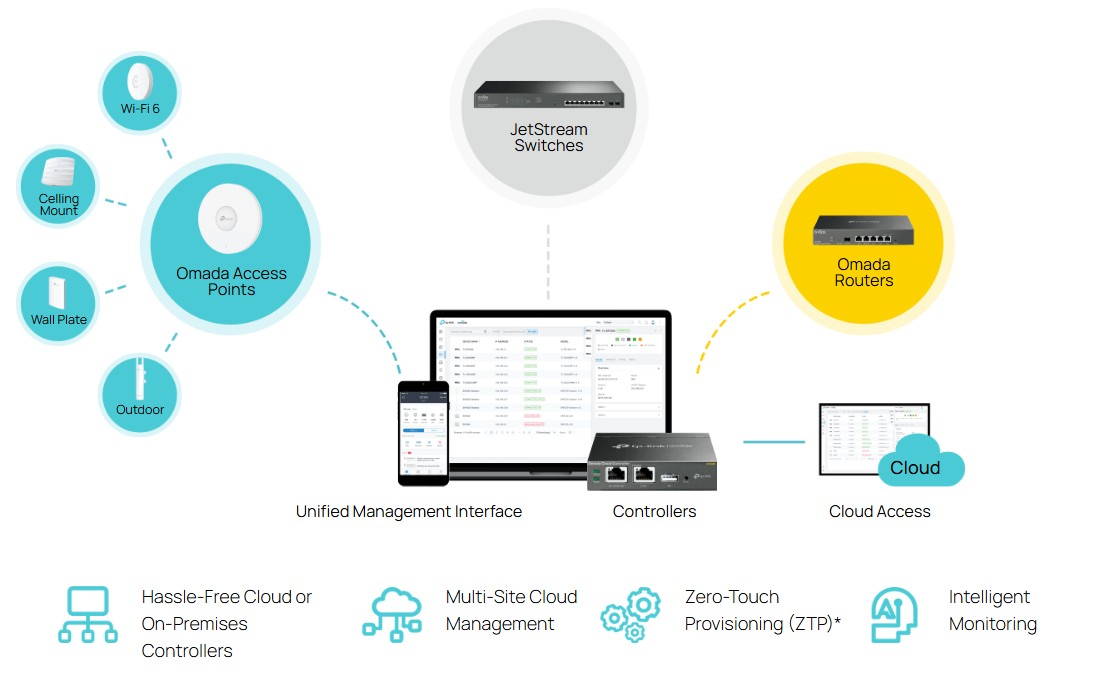

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

What's in the box

• TL-SG3428X-M2 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Specifications

• Interface:
  • 24× 2.5 Gbps RJ45 Ports
  • 4× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Fan Quantity: 1
• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Mounting: Rack Mountable
• Power Consumption: 45.1 W (110V/60Hz)
• Performance:
  • Switching Capacity: 200 Gbps
  • Packet Forwarding Rate: 148.80 Mpps
• Managed Features:
  • Quality of Service
  • L3 Features
  • L2 and L2+ Features
  • L2 Multicast
  • Advanced Features
  • VLAN
  • Access Control List
  • Security
  • IPv6
  • MIBs
• Management:
  • Omada App
  • Centralized Management
  • Cloud Access
  • Zero-Touch Provisioning
  • Management Features
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
