TP-Link AC1200 Wall Plate Dual-Band Wi-Fi Access Point (EAP235-Wall)
The TP-Link EAP235-Wall is a wireless MU-MIMO Gigabit wall plate access point which enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices. With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
TP-Link EAP235-Wall Key Features
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.

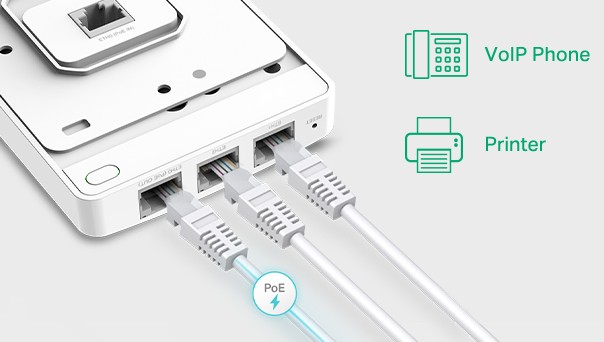

- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralised Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
TP-Link EAP235-Wall - Technical Specifications
Hardware Features
- Interface:
- Uplink: 1× 10/100/1000 Mbps Ethernet Port
- Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) - Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/802.3at PoE
- Power Consumption: 9.8 watts /24.4 watts (PoE Out Included)
- Dimensions: 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
- Antenna Type: 2 Dual-Band Antennas
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 2× 4 dBi - Mounting: Wall Plate Mounting
Wireless Features
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
- 5 GHz: Up to 867 Mbps
- 2.4 GHz: Up to 300 Mbps - Wireless Functions:
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Band Steering
- Load Balance
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client - Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN port based VLAN
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK - Transmission Power:
- CE:<20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz, EIRP)
- FCC:<21 dBm (2.4 GHz), <21 dBm (5 GHz)
Management
- Omada App: Yes
- Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller - Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
Other
- Certification: CE, FCC, RoHS
- Package Contents:
- Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
- Mounting Screw
- Installation Guide - System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment:
- Operating Temperature: 0–40 ? (32–104 ?)
- Storage Temperature: -40–70 ? (-40–158 ?)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing

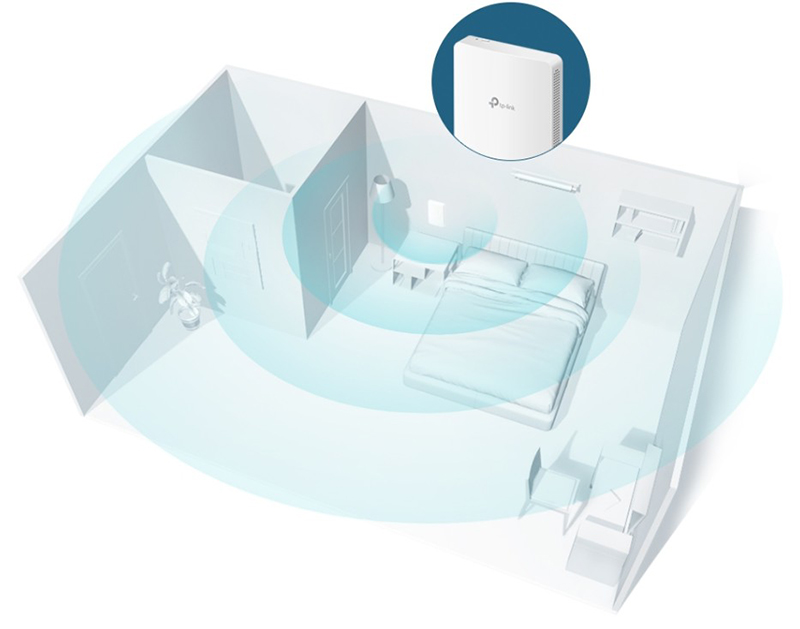

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available - only 15 mm - featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
