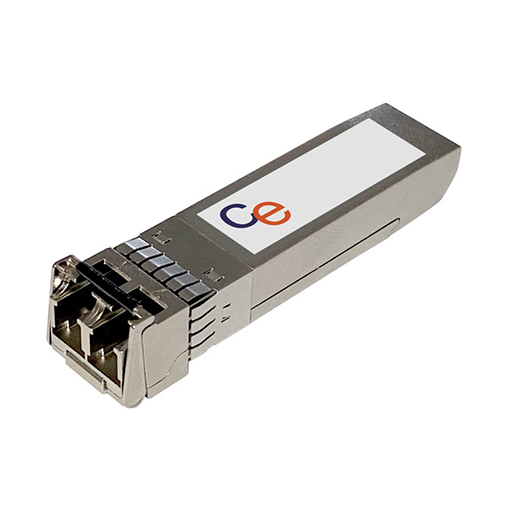

TP-Link Compatible TL-SM5110-SR Transceiver SFP+ 10GBase-SR (850nm MMF 300m LC DOM)

The CE TL-SM5110-SR TP-Link Compatible Transceiver provides 10GBASE-SR connectivity over multimode fibre using an 850nm wavelength for 10Gbps Ethernet links. Supporting transmission distances of up to 300m over 50/125µm fibre, it features an SFP+ form factor, LC interface and Digital Diagnostic Monitoring for compatible network equipment.

Key Features of CE TL-SM5110-SR TP-Link Compatible Transceiver

• 10GBASE-SR SFP+ multimode transceiver
• 850nm operating wavelength
• 10Gbps data rate
• Up to 300m over 50/125µm multimode fibre
• Up to 33m over 62.5/125µm multimode fibre
• LC duplex fibre interface
• Digital Diagnostic Monitoring (DDM)
• SFP+ MSA compatible
• Hot-swappable

10GBASE-SR Fibre Connectivity

The transceiver supports 10Gbps Ethernet connections using 850nm multimode optics. It can provide links up to 300m with 50/125µm fibre, while 62.5/125µm fibre supports distances up to 33m.

SFP+ Interface

Using an SFP+ form factor with an LC interface, the module can be installed in compatible 10G SFP+ ports. Its 3.3V power supply and hot-swappable operation support straightforward module installation and replacement.

Digital Diagnostic Monitoring

DDM support provides monitoring of key transceiver operating parameters, while SFP+ MSA compatibility supports use with compatible SFP+ networking equipment. The module also supports the SFF-8472 standard.
