| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | TL-SM321B-2-C-QTM |
| Manufacturer No: | TL-SM321B-2 |
| Delivery: | In Stock: 2-3 Days |
 |

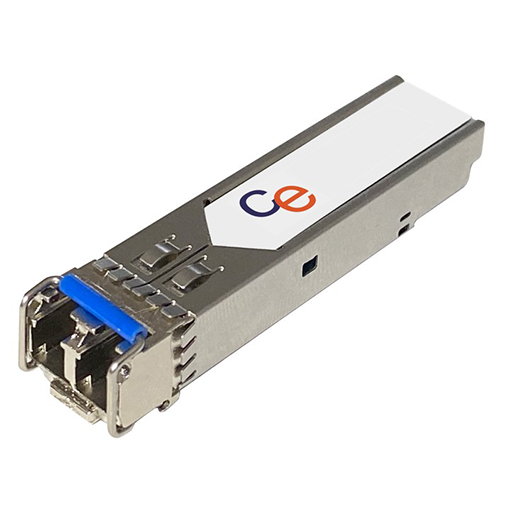

The CE TL-SM321B-2 TP-Link Compatible Transceiver provides 1000Base-BX WDM connectivity over single-mode fibre, using 1310nm for transmission and 1550nm for reception across a single fibre link. Supporting data rates of up to 1.25Gbps and distances of up to 2km, it features an LC simplex interface and is suitable for compatible switches, routers, servers and other network equipment.
The transceiver supports bidirectional WDM communication, allowing data to travel in both directions over a single strand of single-mode fibre. It pairs with the TL-SM321A-2, which uses the complementary 1550nm TX and 1310nm RX wavelengths.
With support for 9/125µm single-mode fibre, the module provides a transmission distance of up to 2km at a data rate of 1.25Gbps. The LC simplex interface provides the fibre connection for compatible network equipment.
DDM support enables real-time monitoring of transceiver operating parameters, including transmitted and received optical power, transceiver current and operating temperature. The module also complies with SFP-MSA requirements and supports hot swapping.
The CE TL-SM321B-2 TP-Link Compatible Transceiver provides 1000Base-BX WDM connectivity over single-mode fibre, using 1310nm for transmission and 1550nm for reception across a single fibre link. Supporting data rates of up to 1.25Gbps and distances of up to 2km, it features an LC simplex interface and is suitable for compatible switches, routers, servers and other network equipment.
The transceiver supports bidirectional WDM communication, allowing data to travel in both directions over a single strand of single-mode fibre. It pairs with the TL-SM321A-2, which uses the complementary 1550nm TX and 1310nm RX wavelengths.
With support for 9/125µm single-mode fibre, the module provides a transmission distance of up to 2km at a data rate of 1.25Gbps. The LC simplex interface provides the fibre connection for compatible network equipment.
DDM support enables real-time monitoring of transceiver operating parameters, including transmitted and received optical power, transceiver current and operating temperature. The module also complies with SFP-MSA requirements and supports hot swapping.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
