| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FERUT145 |
| Manufacturer No: | RUT145 |
| Delivery: | In Stock: 7-10 Days |
 |

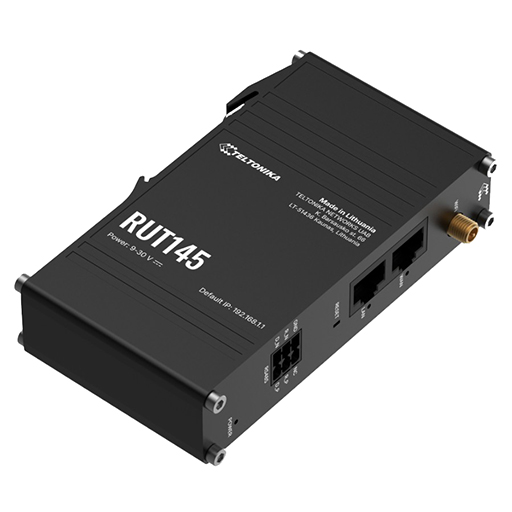

The Teltonika RUT145 is a compact industrial Ethernet router that combines single-band 2.4 GHz Wi-Fi with two Ethernet ports and an RS485 serial interface. With separate WAN and LAN connectivity, industrial communication protocol support, an integrated DIN rail mounting bracket and an industrial power connector, it provides a practical way to connect wired, wireless and serial equipment within industrial networks.

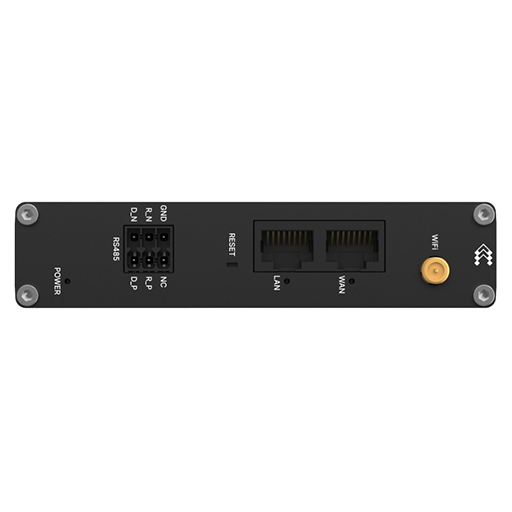

The two 10/100 Mbps RJ45 Ethernet ports, configured as separate WAN and LAN interfaces. This arrangement allows external network connectivity to be kept separate from devices connected to the local network.
Single-band 2.4 GHz Wi-Fi 4 provides wireless networking alongside the wired Ethernet interfaces. The wireless radio supports local WLAN connectivity for compatible industrial and network equipment.
The RS485 interface uses a terminal block connection and supports both 2-wire and 4-wire configurations. This provides a serial connection for industrial equipment and communication systems that use RS485-based interfaces.
The router supports industrial protocols including Modbus, DLMS, DNP3 and OPC UA. These functions allow connected industrial equipment to communicate with network services and other devices through supported protocols.

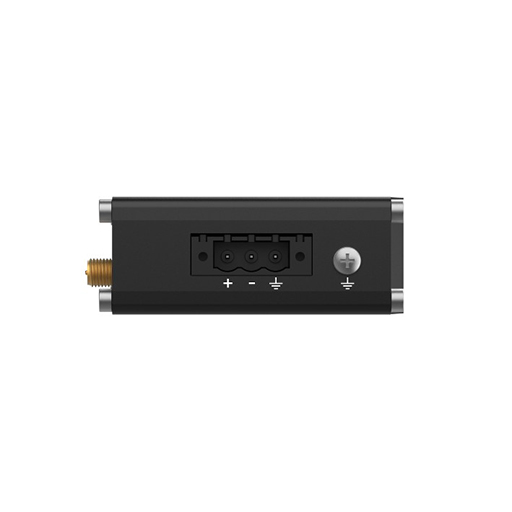

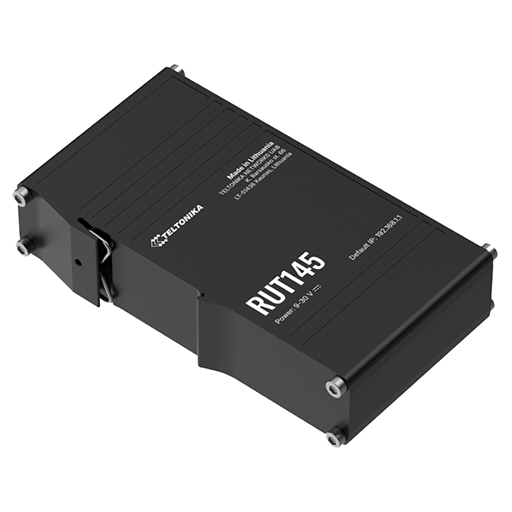

An industrial 3-pin power connector supports a 9-30 VDC power input, while passive PoE provides an additional powering option through the appropriate Ethernet interface. The integrated DIN rail bracket supports installation inside industrial control cabinets and equipment enclosures.
The RUT145 runs RutOS, providing network configuration and management through its web interface and SSH access. Teltonika RMS compatibility provides remote monitoring and management capabilities for supported installations.
The aluminium housing has an IP30 rating and is intended for protected indoor industrial environments such as control cabinets and equipment enclosures. Its compact form and DIN rail mounting make it suitable for installations where available space is limited.
The Teltonika RUT145 is a compact industrial Ethernet router that combines single-band 2.4 GHz Wi-Fi with two Ethernet ports and an RS485 serial interface. With separate WAN and LAN connectivity, industrial communication protocol support, an integrated DIN rail mounting bracket and an industrial power connector, it provides a practical way to connect wired, wireless and serial equipment within industrial networks.
The two 10/100 Mbps RJ45 Ethernet ports, configured as separate WAN and LAN interfaces. This arrangement allows external network connectivity to be kept separate from devices connected to the local network.
Single-band 2.4 GHz Wi-Fi 4 provides wireless networking alongside the wired Ethernet interfaces. The wireless radio supports local WLAN connectivity for compatible industrial and network equipment.
The RS485 interface uses a terminal block connection and supports both 2-wire and 4-wire configurations. This provides a serial connection for industrial equipment and communication systems that use RS485-based interfaces.
The router supports industrial protocols including Modbus, DLMS, DNP3 and OPC UA. These functions allow connected industrial equipment to communicate with network services and other devices through supported protocols.
An industrial 3-pin power connector supports a 9-30 VDC power input, while passive PoE provides an additional powering option through the appropriate Ethernet interface. The integrated DIN rail bracket supports installation inside industrial control cabinets and equipment enclosures.
The RUT145 runs RutOS, providing network configuration and management through its web interface and SSH access. Teltonika RMS compatibility provides remote monitoring and management capabilities for supported installations.
The aluminium housing has an IP30 rating and is intended for protected indoor industrial environments such as control cabinets and equipment enclosures. Its compact form and DIN rail mounting make it suitable for installations where available space is limited.
