| Part No: | FERUT142 |
| Manufacturer No: | RUT142 |
| Delivery: | In Stock: Next Day |
 |

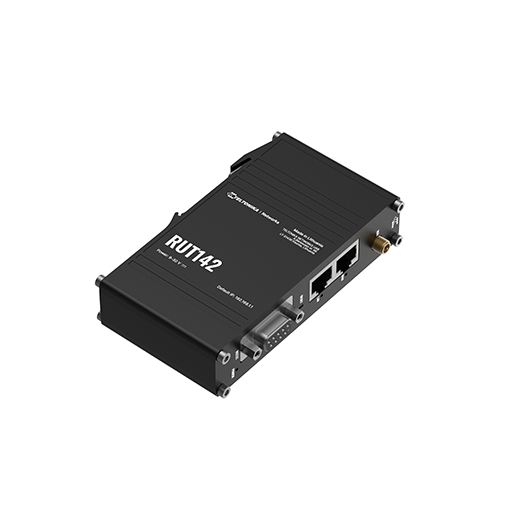

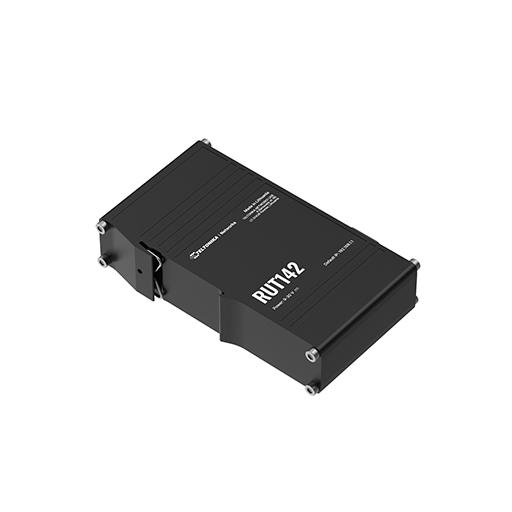

The Teltonika RUT142 is a compact industrial Ethernet router that combines Wi-Fi 4 networking with two 10/100 Mbps Ethernet ports and an RS232 serial interface. Its industrial 3-pin power connector and integrated DIN rail bracket make it suitable for control cabinets and equipment installations where wired, wireless and serial communication need to operate from a single compact device.

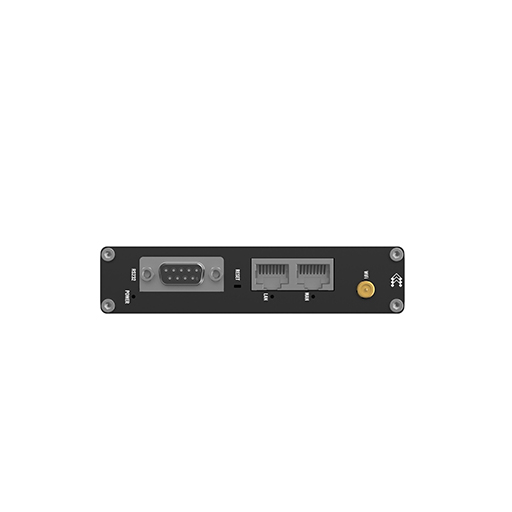

The two 10/100 Mbps RJ45 Ethernet ports for wired network connections. The interfaces can be used for separating network traffic between connected equipment and external network connections, providing a practical arrangement for industrial installations.
Integrated 2.4 GHz Wi-Fi 4 provides wireless networking alongside the Ethernet interfaces. The router supports Access Point and Station modes, allowing compatible devices to connect wirelessly or allowing the router to join an existing wireless network.
The RS232 interface uses a DB9 socket and provides a connection for industrial and serial equipment. The serial interface can be used for functions such as console access, Serial over IP and industrial communication applications, with configurable serial communication parameters.
The RUT142 supports industrial communication technologies including Modbus, DLMS, DNP3 and OPC UA. These capabilities allow serial and network-connected equipment to exchange data across industrial communication environments.

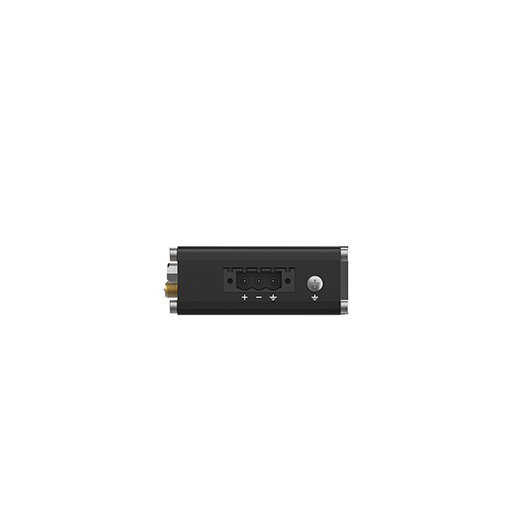

An integrated DIN rail bracket supports installation inside industrial control cabinets and equipment enclosures. The 3-pin industrial power connector provides a suitable connection for 9-30 VDC power sources, while passive PoE support provides another power option through the appropriate Ethernet interface.
The router runs RutOS, providing web-based configuration and network management features. Teltonika RMS compatibility enables remote monitoring, configuration, access and management of supported devices.
The aluminium housing with IP30 protection and an integrated DIN rail mounting bracket. Its compact form makes it suitable for industrial control cabinets and other locations where space is limited.
