| Part No: | FERUT140 |
| Manufacturer No: | RUT140 |
| Delivery: | In Stock: Next Day |
 |

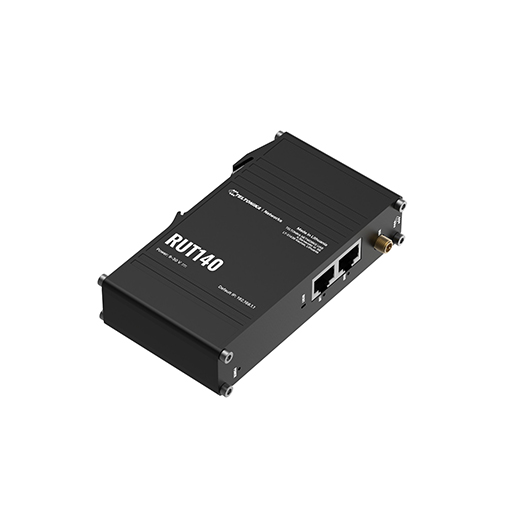

The Teltonika RUT140 is a compact industrial Ethernet router that provides wired networking through two 10/100 Mbps Ethernet ports alongside Wi-Fi 4 connectivity. Its industrial 3-pin power connector, integrated DIN rail bracket and IP30-rated aluminium housing make it suitable for control cabinets, machinery and other industrial networking installations where reliable local connectivity is required.

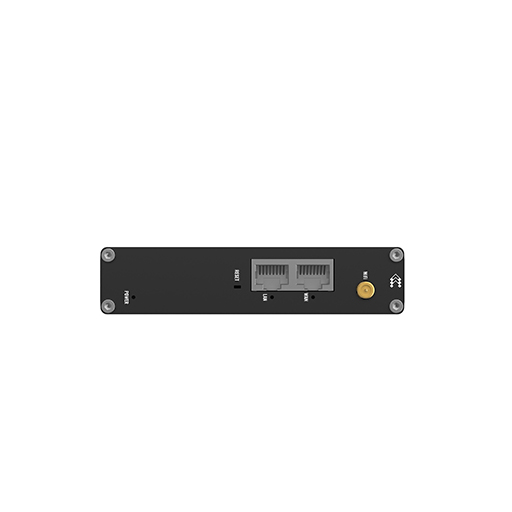

The two 10/100 Mbps RJ45 Ethernet ports, with one port configured as WAN and the other as LAN by default. The WAN interface can also be configured for LAN use, providing flexibility for different network arrangements.
Integrated Wi-Fi 4 supports IEEE 802.11b/g/n wireless networking with Access Point and Station modes. This allows the router to provide wireless connectivity for local devices while maintaining its wired Ethernet connections.

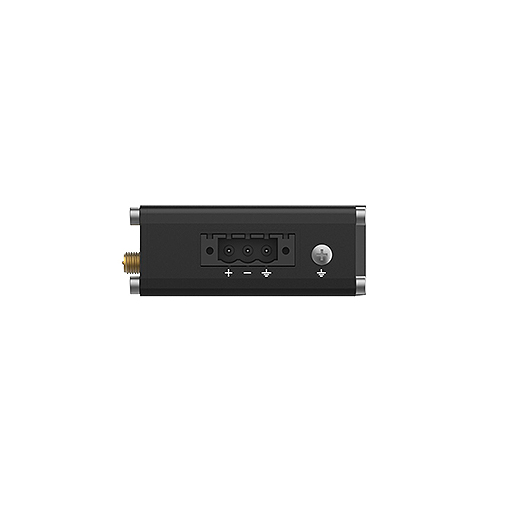

The router uses a 3-pin industrial power connector with a 9-30 VDC input range. Passive PoE over spare Ethernet pairs can also be used to power the device through LAN1, providing an additional installation option where suitable power-over-Ethernet cabling is available.

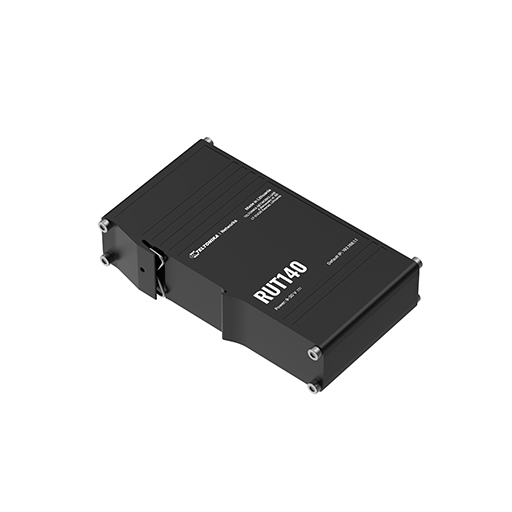

An integrated DIN rail bracket allows the router to be installed directly within industrial control cabinets and other equipment enclosures. Its compact 113.10 x 25 x 68.6 mm form factor helps it fit into space-constrained installations.
The RUT140 supports industrial communication protocols including Modbus, DLMS, DNP3 and OPC UA. These capabilities allow the router to be incorporated into industrial networks where communication between connected equipment and network services is required.
RutOS provides the router's networking and management environment, with configuration available through its web interface and SSH. Teltonika RMS compatibility provides additional options for remote monitoring, management and access to supported devices.
The anodized aluminium housing with an IP30 ingress protection rating. Its operating temperature range of -40 °C to 75 °C allows it to operate across a wide range of industrial environments.
The Teltonika RUT140 is a compact industrial Ethernet router that provides wired networking through two 10/100 Mbps Ethernet ports alongside Wi-Fi 4 connectivity. Its industrial 3-pin power connector, integrated DIN rail bracket and IP30-rated aluminium housing make it suitable for control cabinets, machinery and other industrial networking installations where reliable local connectivity is required.
The two 10/100 Mbps RJ45 Ethernet ports, with one port configured as WAN and the other as LAN by default. The WAN interface can also be configured for LAN use, providing flexibility for different network arrangements.
Integrated Wi-Fi 4 supports IEEE 802.11b/g/n wireless networking with Access Point and Station modes. This allows the router to provide wireless connectivity for local devices while maintaining its wired Ethernet connections.
The router uses a 3-pin industrial power connector with a 9-30 VDC input range. Passive PoE over spare Ethernet pairs can also be used to power the device through LAN1, providing an additional installation option where suitable power-over-Ethernet cabling is available.
An integrated DIN rail bracket allows the router to be installed directly within industrial control cabinets and other equipment enclosures. Its compact 113.10 x 25 x 68.6 mm form factor helps it fit into space-constrained installations.
The RUT140 supports industrial communication protocols including Modbus, DLMS, DNP3 and OPC UA. These capabilities allow the router to be incorporated into industrial networks where communication between connected equipment and network services is required.
RutOS provides the router's networking and management environment, with configuration available through its web interface and SSH. Teltonika RMS compatibility provides additional options for remote monitoring, management and access to supported devices.
The anodized aluminium housing with an IP30 ingress protection rating. Its operating temperature range of -40 °C to 75 °C allows it to operate across a wide range of industrial environments.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
