| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEUNIDOCKU33 |
| Manufacturer No: | UNIDOCKU33 |
| Delivery: | In Stock: Next Day |
 |

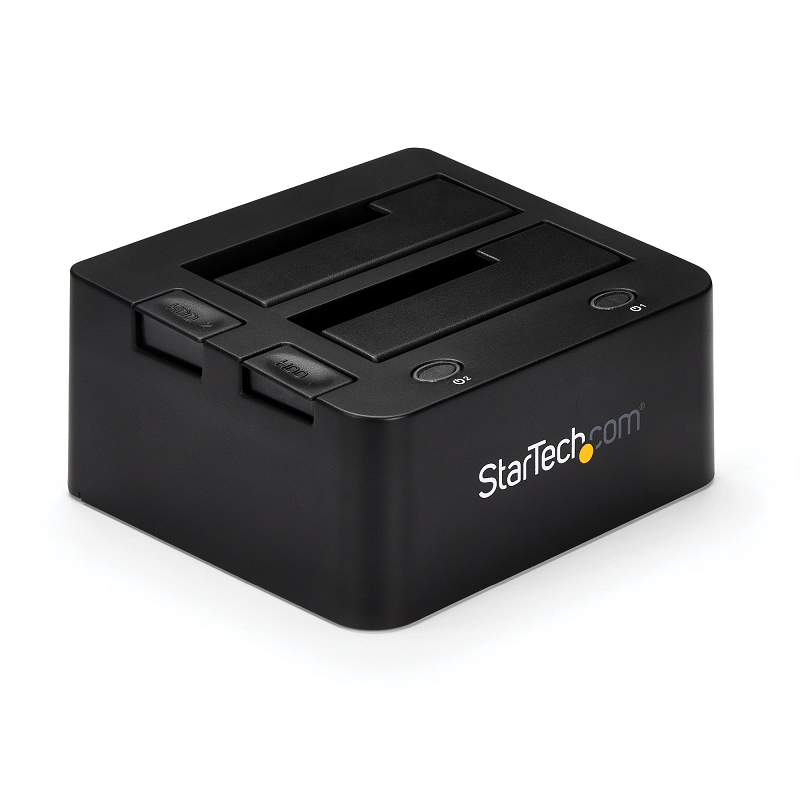

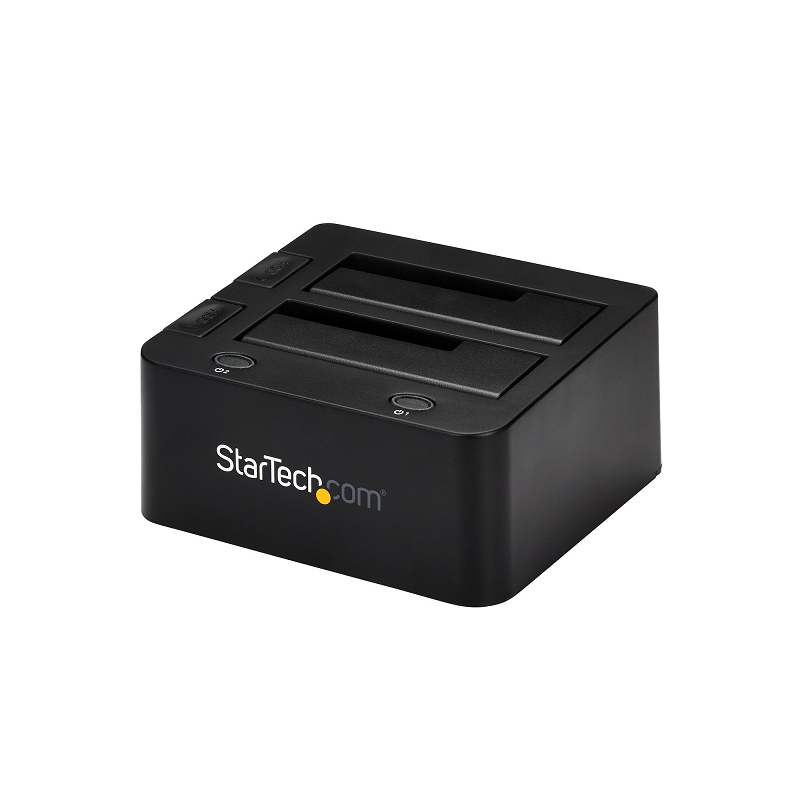

Universal Docking Station for Hard Drives - USB 3.0 with UASP
Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance

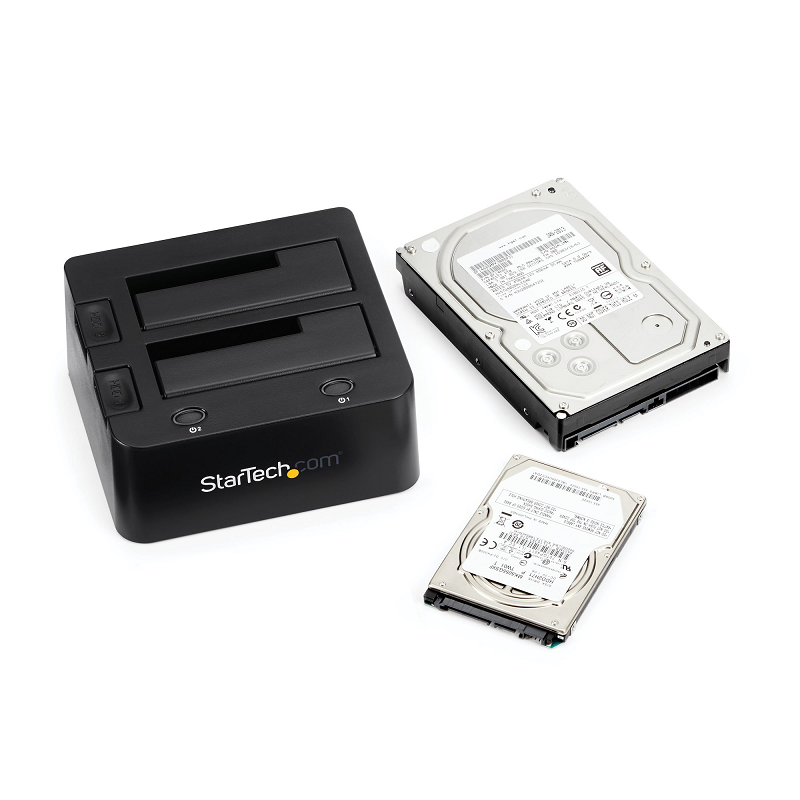

The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

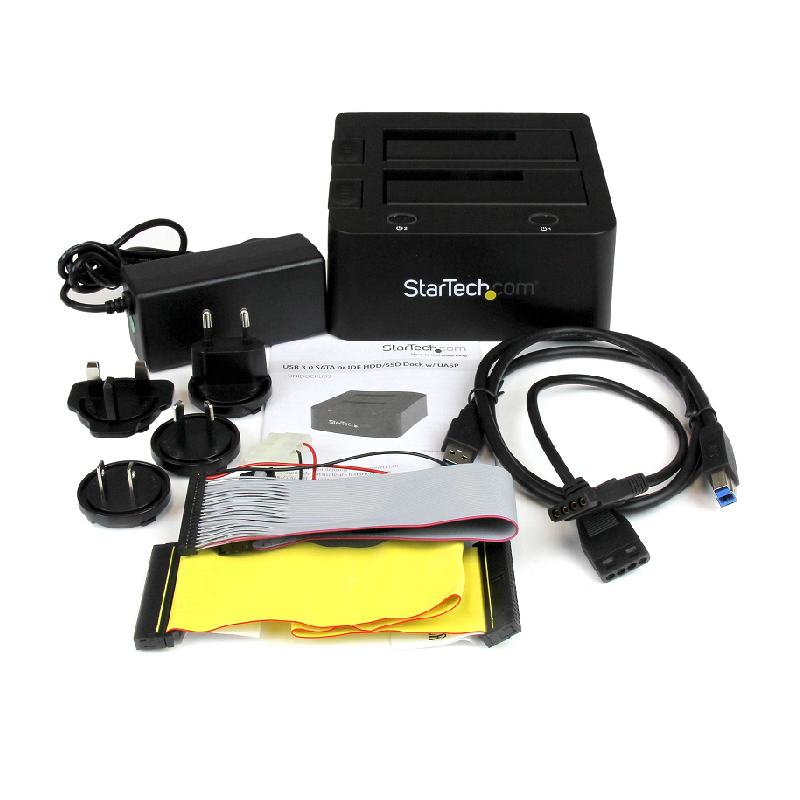

The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.

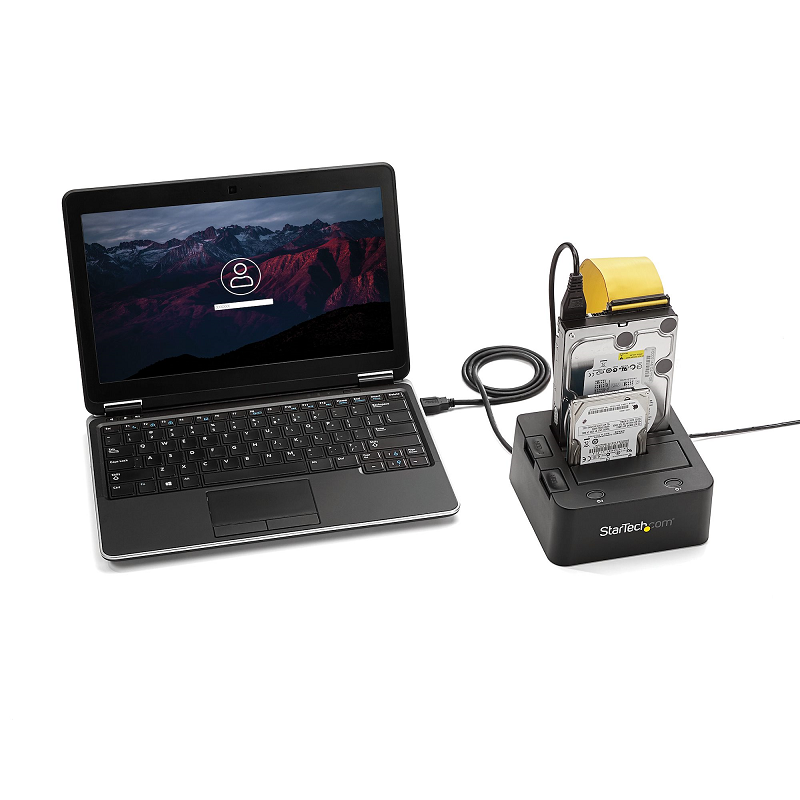

A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

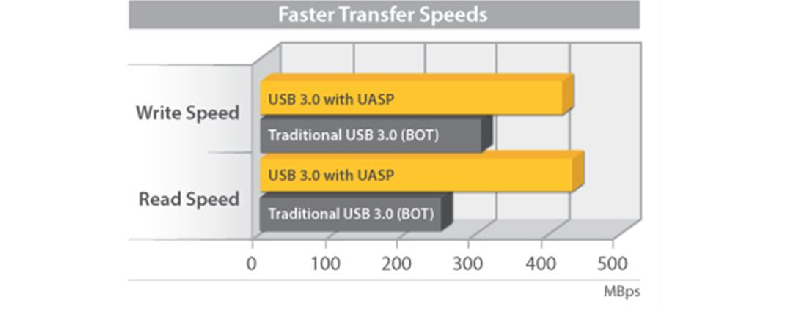

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

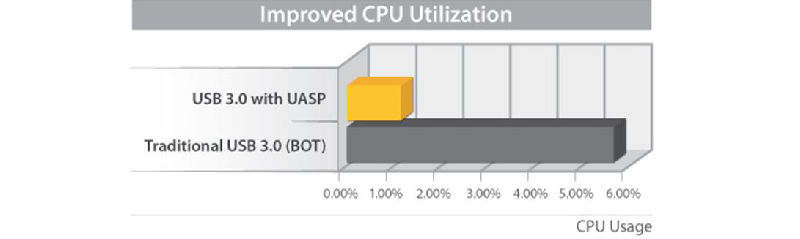

At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

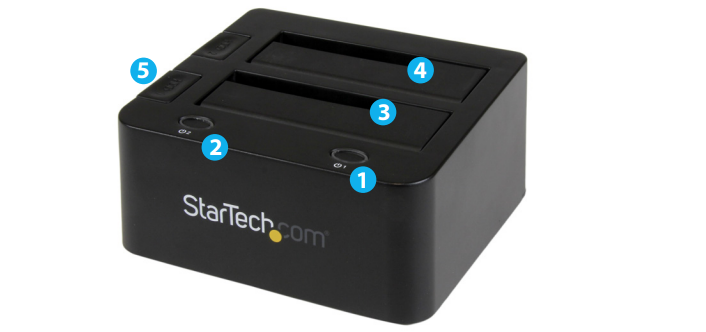

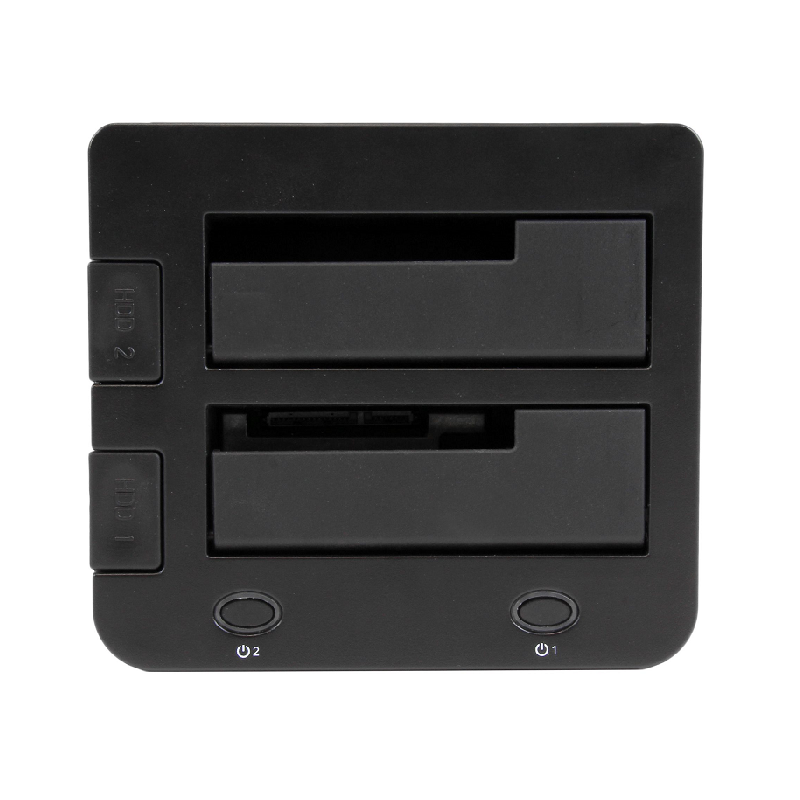

1. SATA Hard Drive Power button / Power and Activity LED (Button #1)
2. IDE Hard Drive Power button / Power and Activity LED (Button #2)
3. SATA Hard Drive slot (Slot #1)
4. IDE Hard Drive slot (Slot #2)
5. SATA Hard Drive eject button

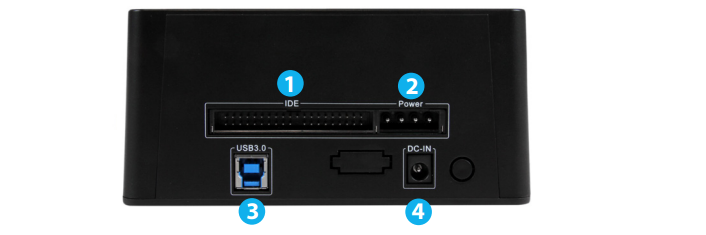

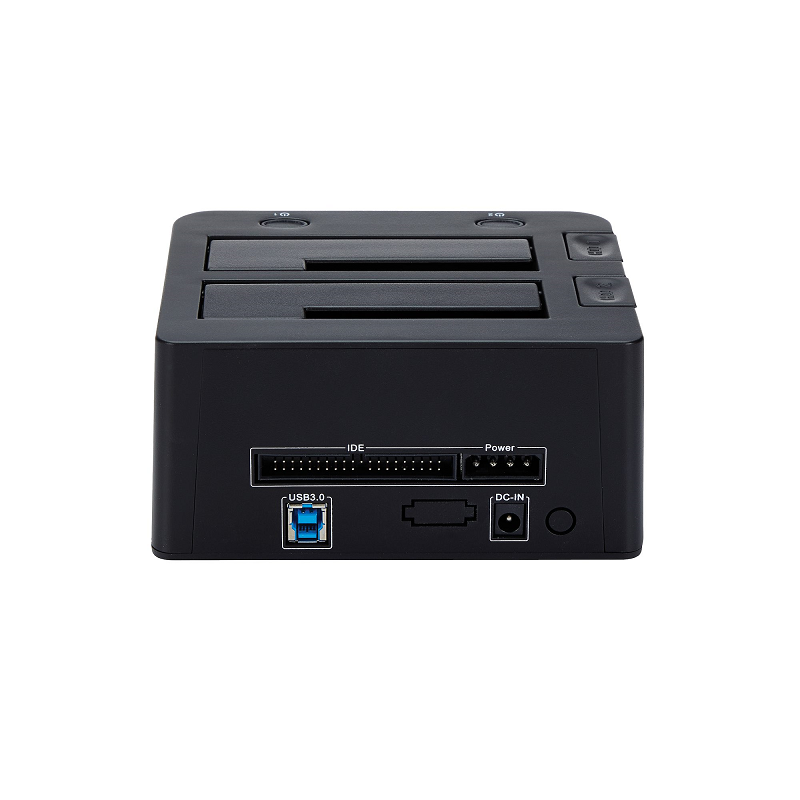

1. IDE Hard Drive Data Port
2. IDE Hard Drive Power port
3. USB 3.0 port
4. Power adapter port
| Hard drive | |
| Storage media type | HDD, SSD |
| Storage drive interface | Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5, 3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 6 TB |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| DC-in jack | Yes |
| Technical details | |
| UASP support | Yes |
| Mean time between failures (MTBF) | 30000 h |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 5 Gbit/s |
| Product colour | Black |
| Material | Plastic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| RAID support | No |
| Chipset | JMicron - JMS561U, JMD330 |
| Sustainability certificates | RoHS |
| Features | |
| UASP support | Yes |
| Mean time between failures (MTBF) | 30000 h |
| Maximum data transfer rate | 5 Gbit/s |
| LED indicators | Activity, Power |
| Product colour | Black |
| Material | Plastic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| RAID support | No |
| Certification | CE, FCC |
| Chipset | JMicron - JMS561U, JMD330 |
| Cooling | |
| Built-in fan | No |
| Power | |
| Power plug type | Type M |
| AC input voltage | 110-240 V |
| Input current | 1.3 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Operational conditions | |
| Storage temperature (T-T) | 5 - 80 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90 % |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 140 mm |
| Height | 70 mm |
| Weight | 512 g |
| Packaging data | |
| Package width | 123 mm |
| Package depth | 187 mm |
| Package height | 214 mm |
| Package weight | 1.1 kg |

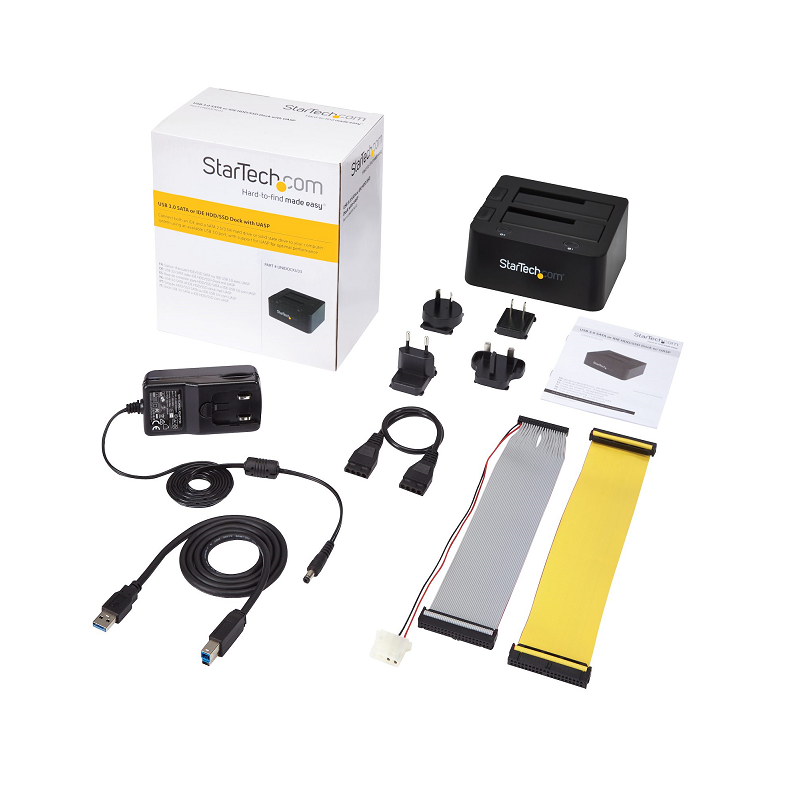

| Manual | Yes |
| AC adapter included | Yes |
| Cables included | USB |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
