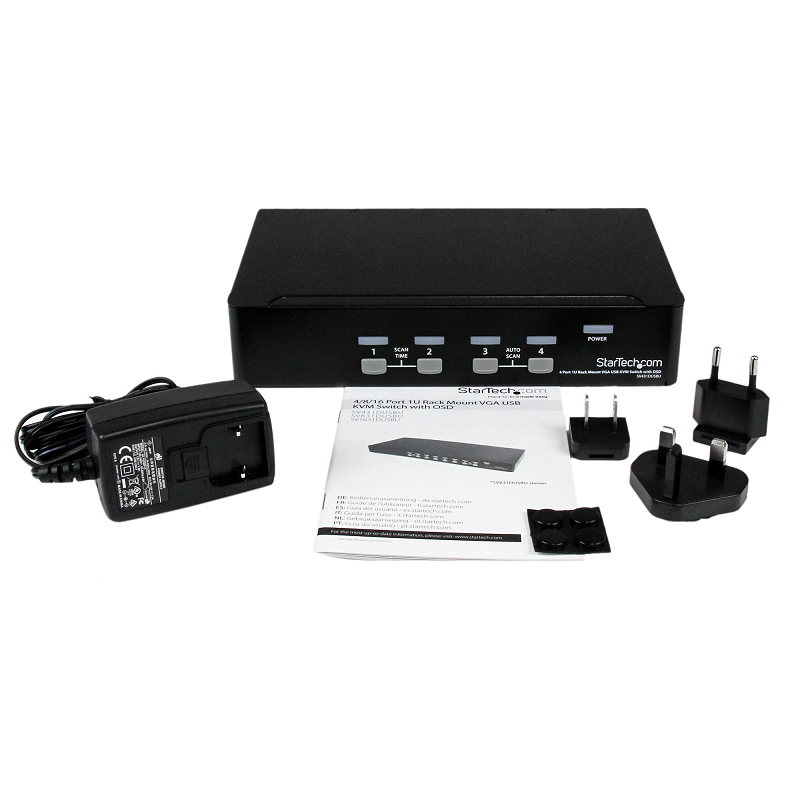

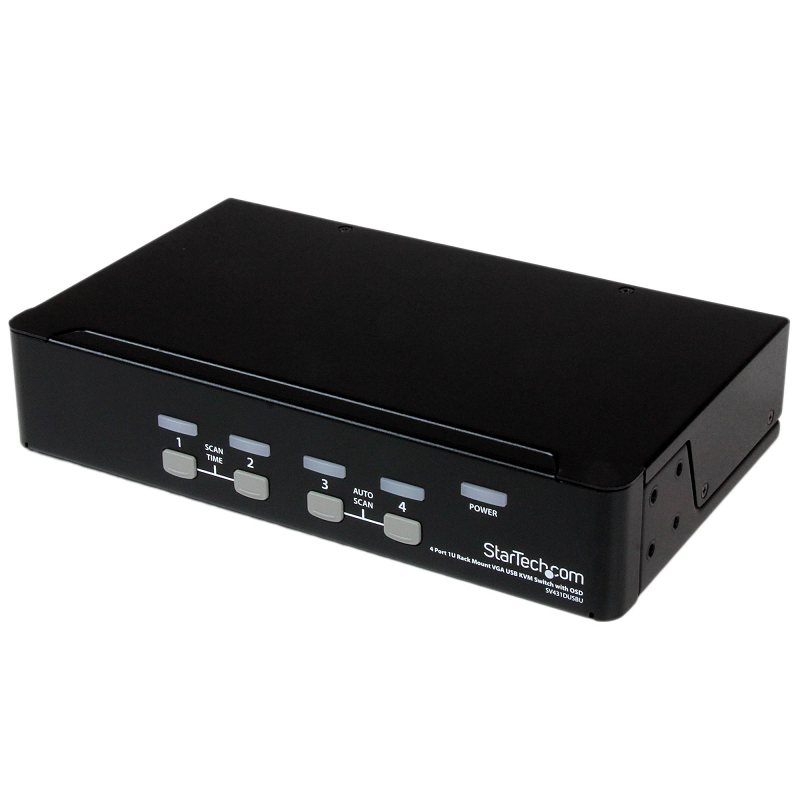

4 Port 1U Rackmount USB KVM Switch with OSD
Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor
The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The SV431DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
Technical details | |
Product colour | Black |
Rack mounting | Yes |
Plug and Play | Yes |
On Screen Display (OSD) | Yes |
LED indicators | Power |
Hot keys | Yes |
IP control | No |
Audio support | No |
Sustainability certificates | RoHS |
Video | |
Maximum resolution | 1920 x 1440 pixels |
Maximum digital resolution | 1920 x 1440 pixels |
Ports & interfaces | |
Console USB ports quantity | 2 |
Console ports | USB A, VGA (D-Sub) |
Number of computers controlled | 4 |
Keyboard port type | No |
Mouse port type | No |
Video port type | VGA |
Audio connections | No |
USB 2.0 ports quantity | 2 |
VGA (D-Sub) ports quantity | 5 |
DC-in jack | Yes |
Performance | |
Daisy chain | Yes |
Plug and Play | Yes |
Maximum resolution | 1920 x 1440 pixels |
Maximum analog resolution | 1920 x 1440 pixels |
Design | |
Mean time between failures (MTBF) | 143000 h |
Product colour | Black |
Rack mounting | Yes |
LED indicators | Power |
Hot keys | Yes |
Certification | CE, FCC, UL, TAA, REACH |
Rack capacity | 1U |
Housing material | Steel |
Display | |
Built-in display | No |
On Screen Display (OSD) | Yes |
Power | |
Input current | 0.2 A |
Output current | 0.6 A |
Power plug type | Type M |
Compatible power plug types | AU, EU, UK, US |
Output voltage | 9 V |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 5.4 W |
External power adapter | Yes |
Operating conditions | |
Operating temperature (T-T) | 5 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Weight & dimensions | |
Width | 220 mm |
Depth | 130 mm |
Height | 43 mm |
Weight | 957 g |
Packaging content | |
Rubber feet | Yes |
Manual | Yes |
AC adapter included | Yes |
Other features | |
Hot keys | Yes |
IP control | No |
Audio support | No |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
