4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
| Technical details | |
| Product colour | Black |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Sustainability certificates | RoHS |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Ports & interfaces | |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| Number of microphone inputs | 1 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA / DVI-I |
| Audio connections | Yes |
| VGA (D-Sub) ports quantity | 5 |
| Headphone outputs | 1 |
| DVI-I ports quantity | 5 |
| DC-in jack | Yes |
| Performance | |
| Daisy chain | No |
| Maximum resolution | 1920 x 1200 pixels |
| Number of users | 1 user(s) |
| Design | |
| Mean time between failures (MTBF) | 140000 h |
| Product colour | Black |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, UL, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 163 mm |
| Height | 60 mm |
| Weight | 1.3 kg |

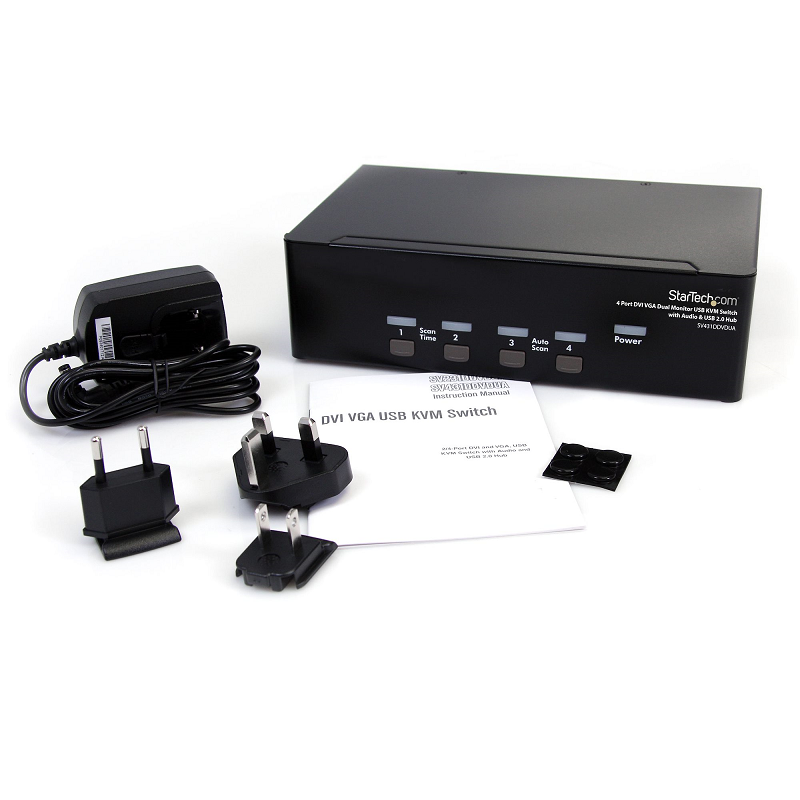

| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| Hot keys | Yes |
| IP control | No |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
| Technical details | |
| Product colour | Black |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Sustainability certificates | RoHS |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Ports & interfaces | |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| Number of microphone inputs | 1 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA / DVI-I |
| Audio connections | Yes |
| VGA (D-Sub) ports quantity | 5 |
| Headphone outputs | 1 |
| DVI-I ports quantity | 5 |
| DC-in jack | Yes |
| Performance | |
| Daisy chain | No |
| Maximum resolution | 1920 x 1200 pixels |
| Number of users | 1 user(s) |
| Design | |
| Mean time between failures (MTBF) | 140000 h |
| Product colour | Black |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, UL, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 163 mm |
| Height | 60 mm |
| Weight | 1.3 kg |
| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| Hot keys | Yes |
| IP control | No |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
