| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEST121SHD50 |
| Manufacturer No: | ST121SHD50 |
| Delivery: | In Stock: Next Day |
 |

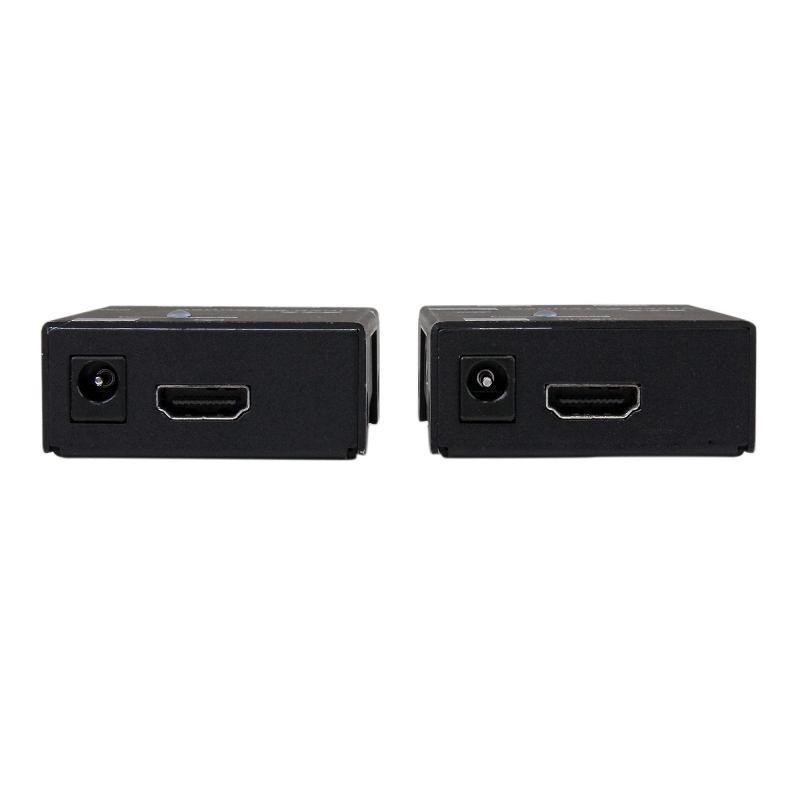

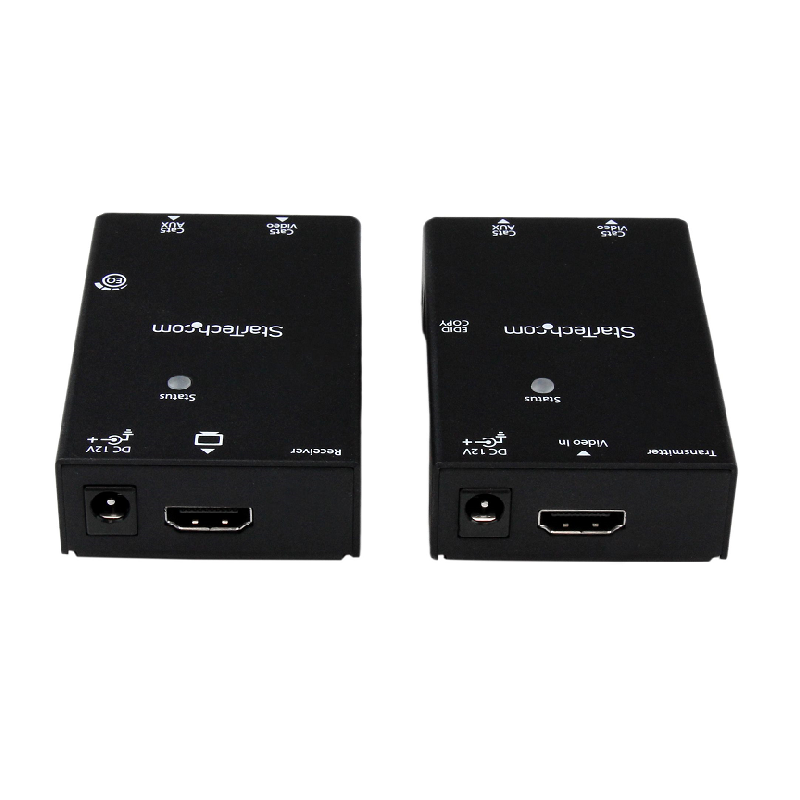

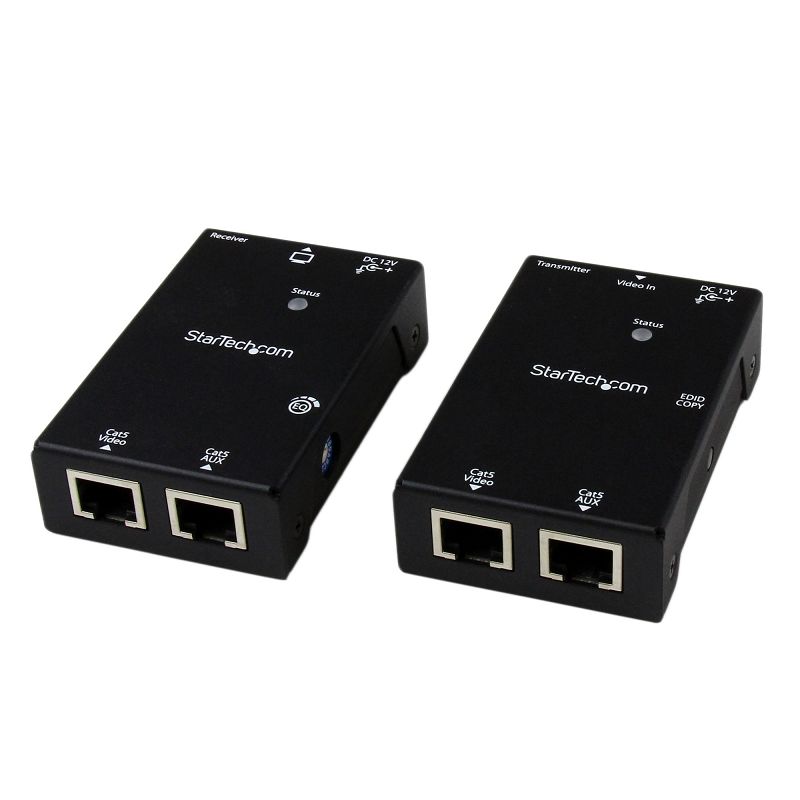

HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m)
Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver
The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

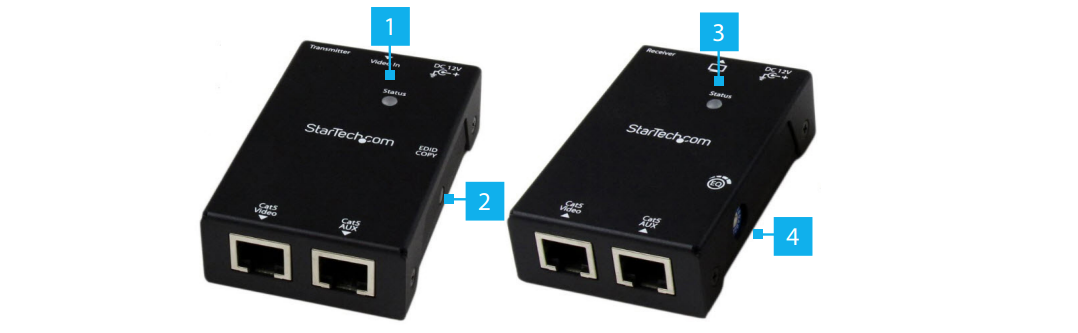

1. LED Indicator
2. EDID Copy Button
3. LED Indicator

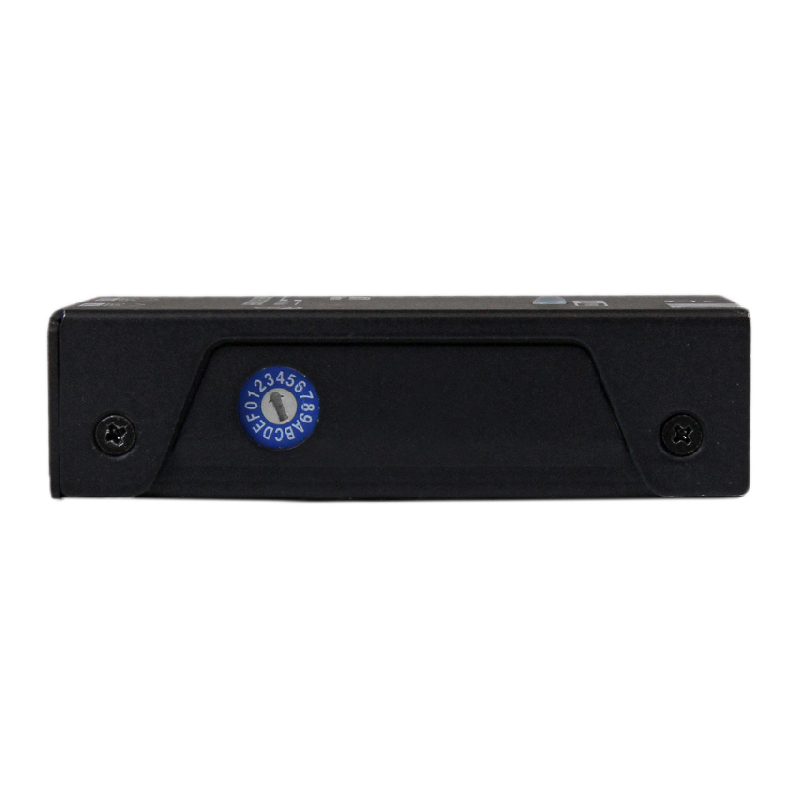

4. EQ Selector

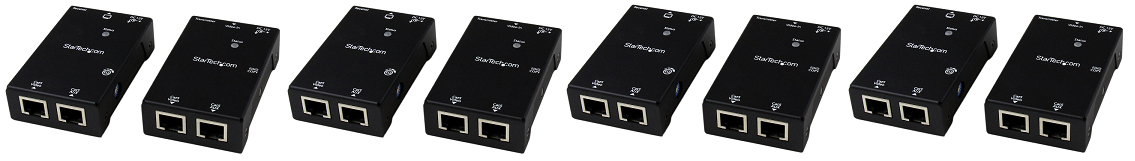

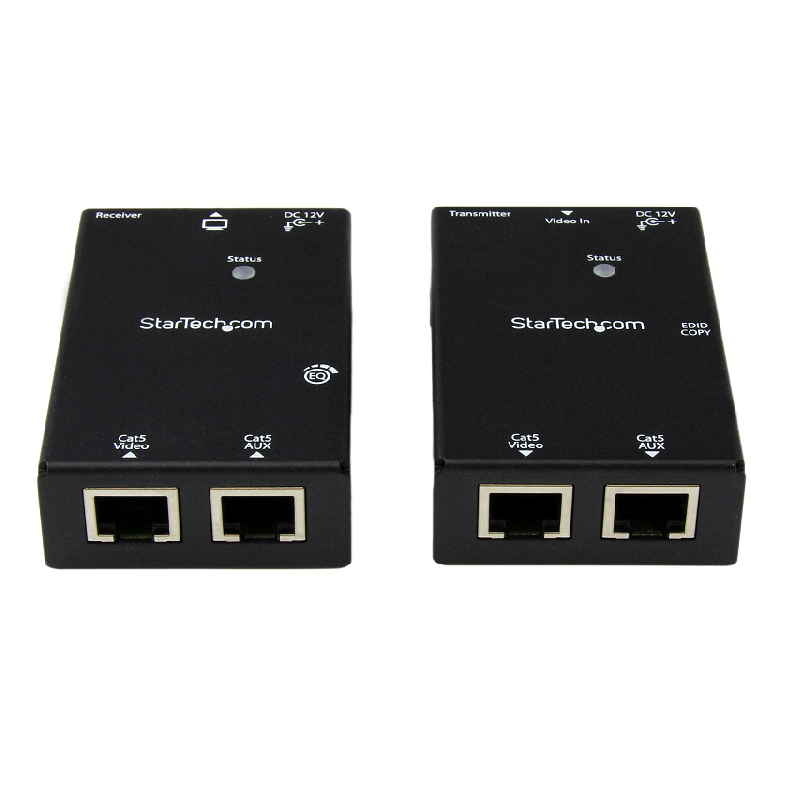

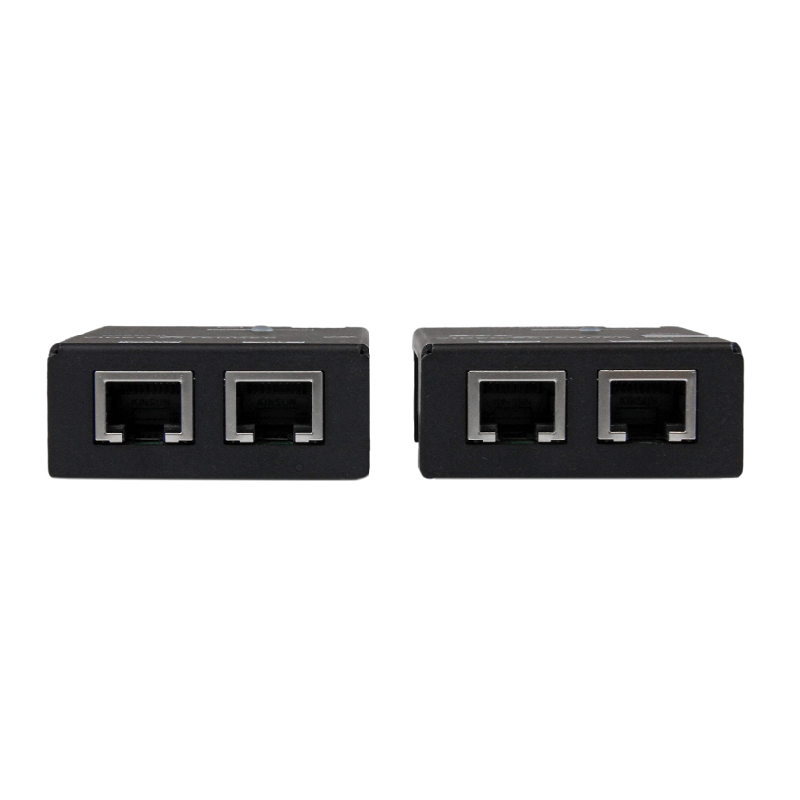

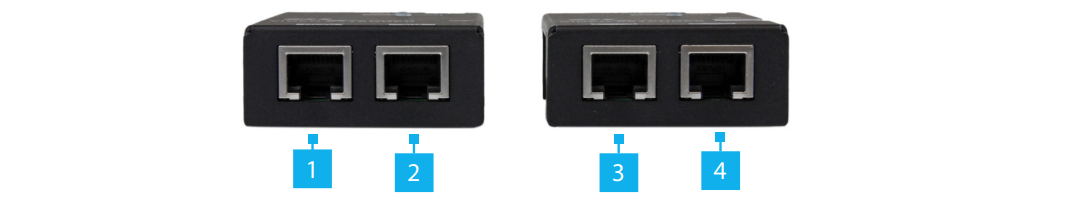

1. LINK OUT A (RJ-45 Connector)
2. LINK OUT B (RJ-45 Connector)
3. LINK OUT A (RJ-45 Connector)
4. LINK OUT B (RJ-45 Connector)
| Features | |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Certification | CE, FCC, REACH, TAA |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| LED indicators | Power |
| Product colour | Black |
| Technical details | |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Certification | CE, FCC, REACH, TAA |
| Ethernet LAN | Yes |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Product colour | Black |
| Connectivity technology | Wired |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions (Transmitter & Receiver) | |
| Width | 51 mm |
| Height | 21 mm |
| Depth | 80 mm |
| Weight | 157 g |
| Packaging data | |
| Package width | 157 mm |
| Package height | 65 mm |
| Package depth | 237 mm |
| Package weight | 935 g |

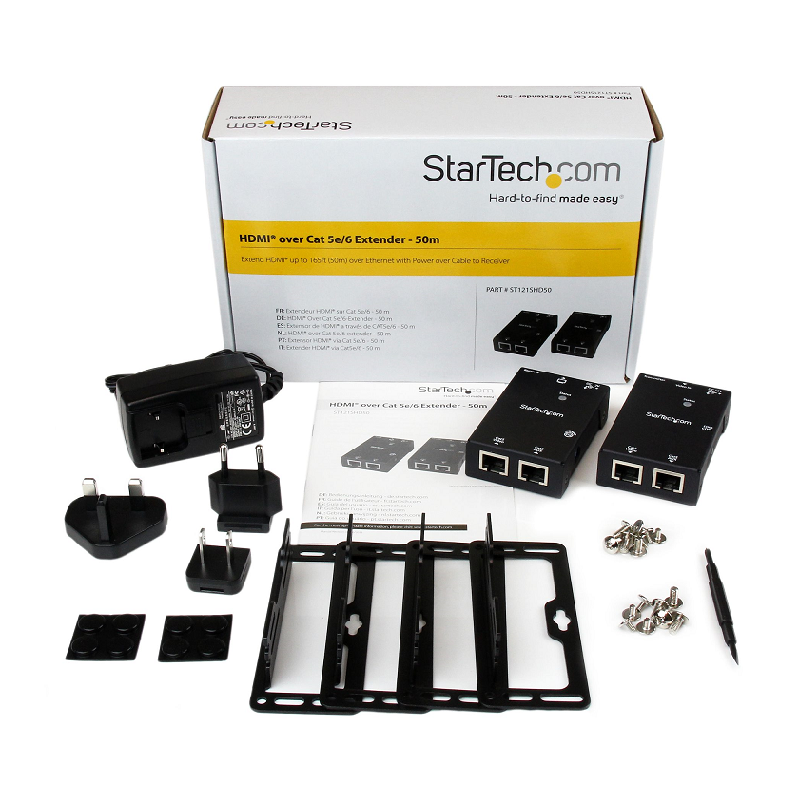

| Manual | Yes |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Cables included | HDMI |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m)
Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver
The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
1. LED Indicator
2. EDID Copy Button
3. LED Indicator
4. EQ Selector
1. LINK OUT A (RJ-45 Connector)
2. LINK OUT B (RJ-45 Connector)
3. LINK OUT A (RJ-45 Connector)
4. LINK OUT B (RJ-45 Connector)
| Features | |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Certification | CE, FCC, REACH, TAA |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| LED indicators | Power |
| Product colour | Black |
| Technical details | |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Certification | CE, FCC, REACH, TAA |
| Ethernet LAN | Yes |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Product colour | Black |
| Connectivity technology | Wired |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions (Transmitter & Receiver) | |
| Width | 51 mm |
| Height | 21 mm |
| Depth | 80 mm |
| Weight | 157 g |
| Packaging data | |
| Package width | 157 mm |
| Package height | 65 mm |
| Package depth | 237 mm |
| Package weight | 935 g |
| Manual | Yes |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Cables included | HDMI |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
