1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.
This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
| Ports & interfaces | |
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Network | |
| Chipset | Intel® I210-AT |
| VLAN tagging | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Maximum data transfer rate | 2000 Mbit/s |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | Black, Metallic |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Sustainability certificates | RoHS |
| Design | |
| Product colour | Black, Metallic |
| Chipset | Intel® I210-AT |
| Certification | CE, FCC |
| Internal | Yes |

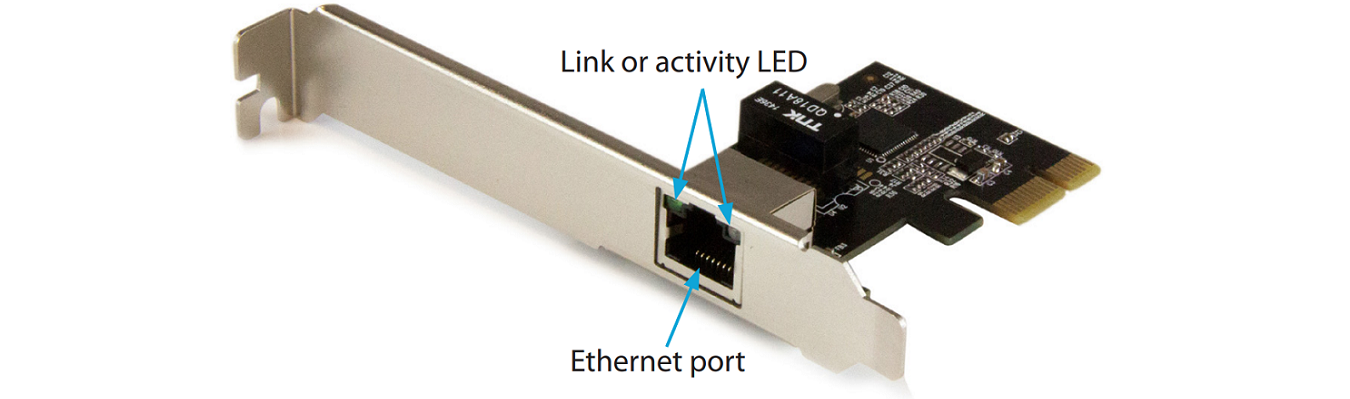

| LED indicators | Activity |
| Operating conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 120 mm |
| Height | 18 mm |
| Weight | 35 g |
| Packaging data | |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 28 mm |
| Package weight | 100 g |
| Mounting brackets included | Yes |
| Manual | Yes |
| Other features | |
| Jumbo frames | 9000 |
| Chipset | Intel® I210-AT |
| Manual | Yes |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file

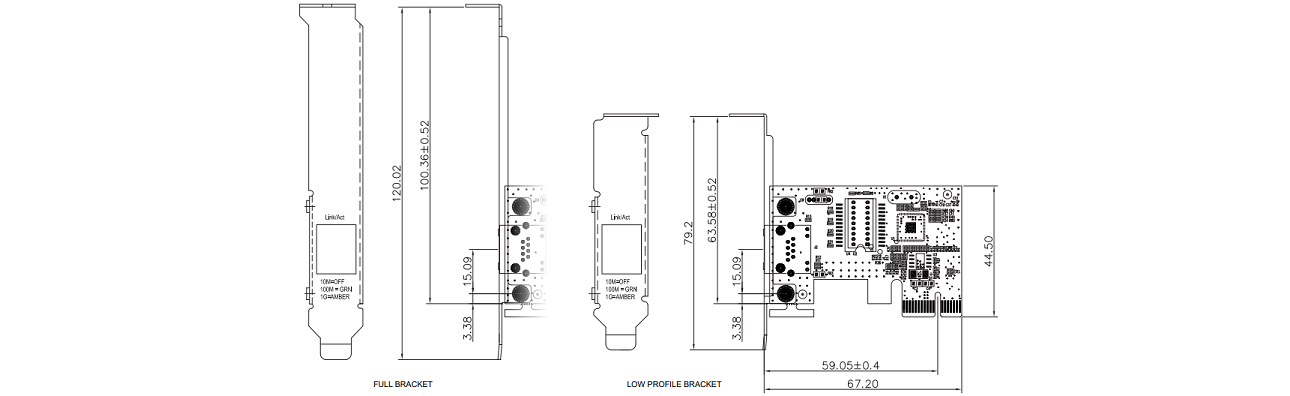

A product diagram can be found in the PDF file
