1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
Ports & interfaces | |
Internal | Yes |
Interface | Ethernet |
Host interface | PCI Express |
Connectivity technology | Wired |
Bandwidth | |
Full duplex | Yes |
Maximum data transfer rate | 1000 Mbit/s |
Network | |
Chipset | Realtek - RTL8111H |
Jumbo frames | 9000 |
Ethernet LAN | Yes |
Cabling technology | 10/100/1000BaseT(X) |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
Auto MDIX IEEE | Yes |
Supported network protocols | CSMA/CD |
Jumbo frames support | Yes |
Full duplex | Yes |
Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
Maximum data transfer rate | 1000 Mbit/s |
Technical details | |
Auto MDIX IEEE | Yes |
Sustainability certificates | RoHS |
Indication | |

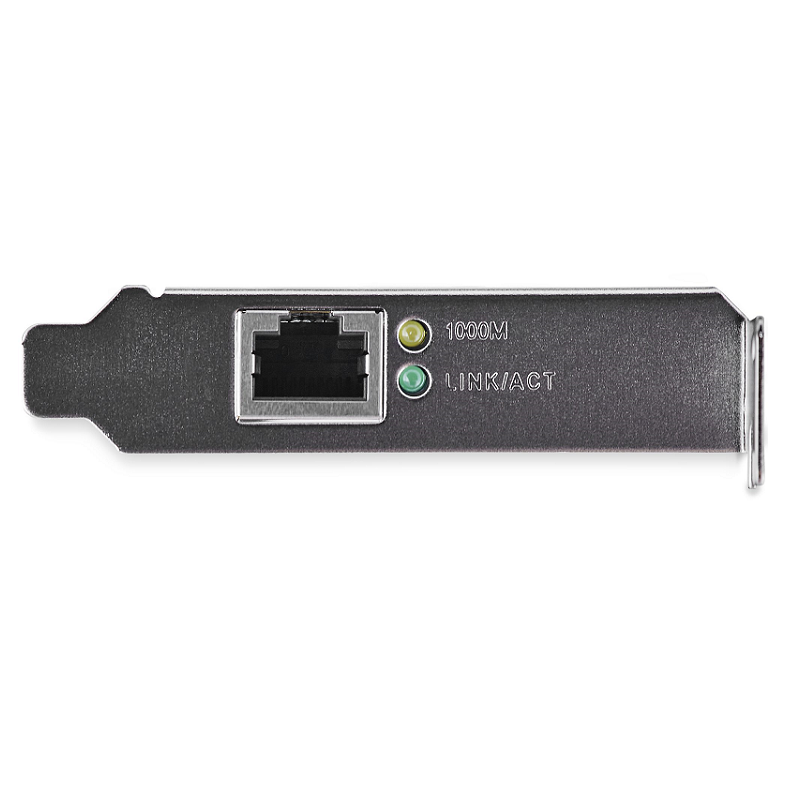

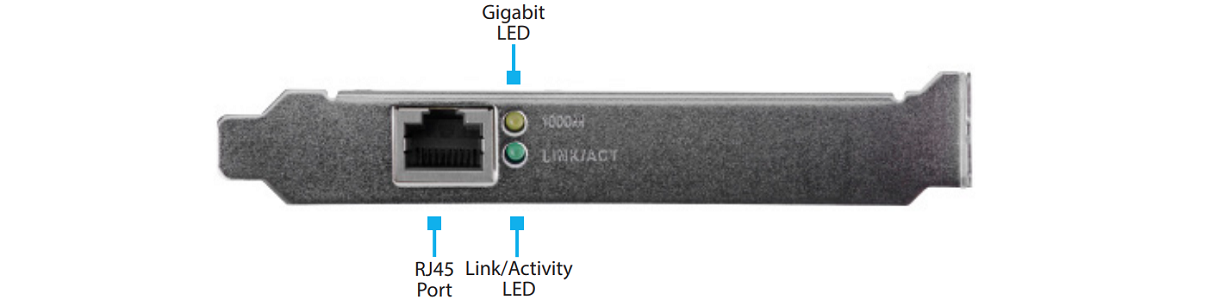

Power LED | Yes |
Link / Act LED | Yes |
LED indicators | Activity, Link |
Design | |
Chipset | Realtek - RTL8111H |
Certification | CE, FCC, REACH |
Internal | Yes |
LED indicators | Activity, Link |
Operating conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | 0 - 100 °C |
Operating relative humidity (H-H) | 10 - 90 % |
Weight & dimensions | |
Width | 18 mm |
Depth | 70 mm |
Height | 49 mm |
Weight | 27 g |
Packaging data | |
Package width | 173 cm |
Package depth | 144 cm |
Package height | 31 cm |
Package weight | 125 g |
Manual | Yes |
Other features | |
Jumbo frames | 9000 |
Chipset | Realtek - RTL8111H |
Power LED | Yes |
Manual | Yes |
Link/Act LED | Yes |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file
