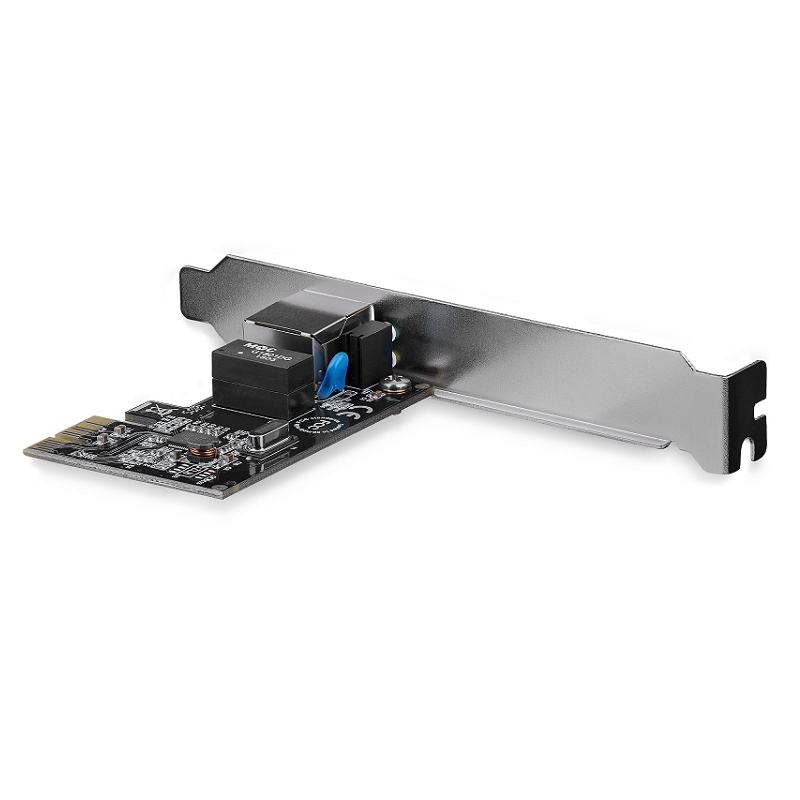

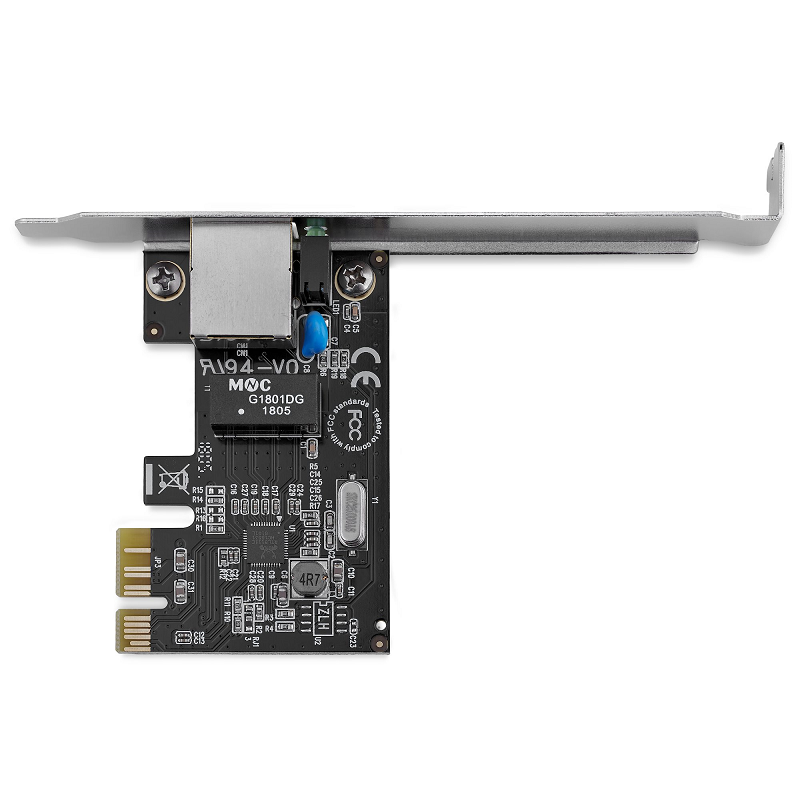

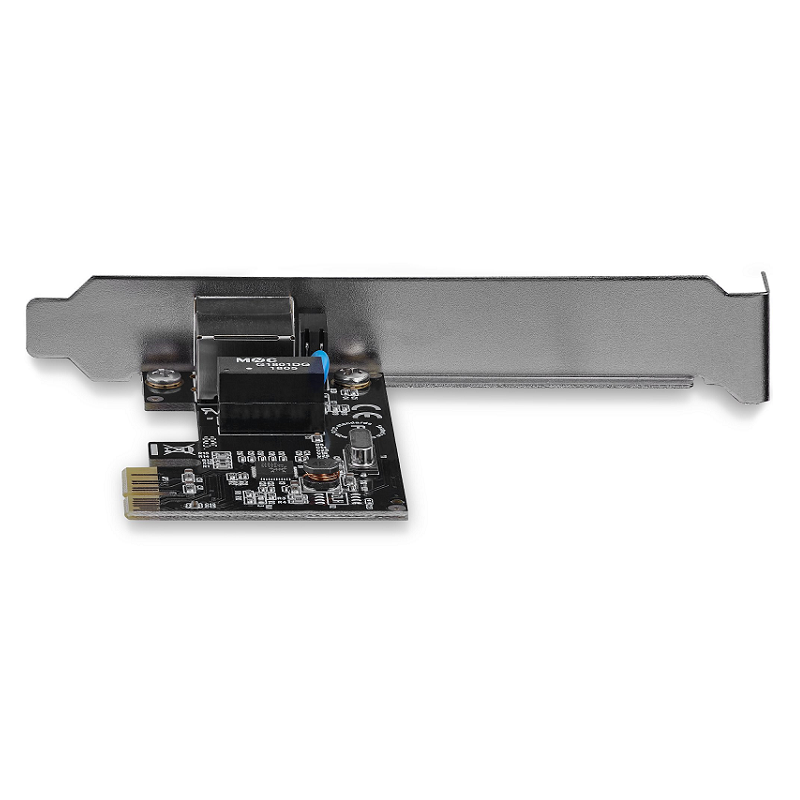

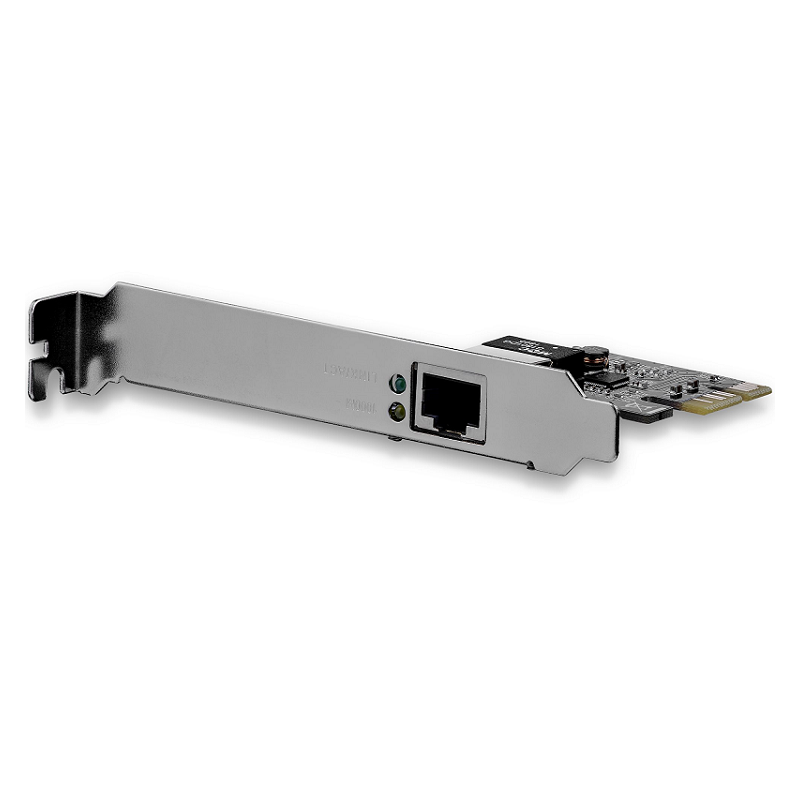

1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Ports & interfaces | |
Internal | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Interface | Ethernet |
Host interface | PCI Express |
Connectivity technology | Wired |
Bandwidth | |
Supported data transfer rates | 10 / 100 / 1000 Mbit/s |
Full duplex | Yes |
Maximum data transfer rate | 1000 Mbit/s |
Network | |
Supported data transfer rates | 10 / 100 / 1000 Mbit/s |
Chipset | Realtek RTL8111E |
Ethernet interface type | Gigabit Ethernet |
Jumbo frames | 9000 |
Wi-Fi | No |
Ethernet LAN | Yes |
Cabling technology | 10/100/1000BaseT(X) |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | Yes |
Supported network protocols | CSMA/CD |
Jumbo frames support | Yes |
Full duplex | Yes |
Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
Maximum data transfer rate | 1000 Mbit/s |
Technical details | |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | Yes |
Mean time between failures (MTBF) | 376212 h |
Sustainability certificates | RoHS |
Design | |
Chipset | Realtek RTL8111E |
Certification | CE, FCC |
Internal | Yes |
Mean time between failures (MTBF) | 376212 h |

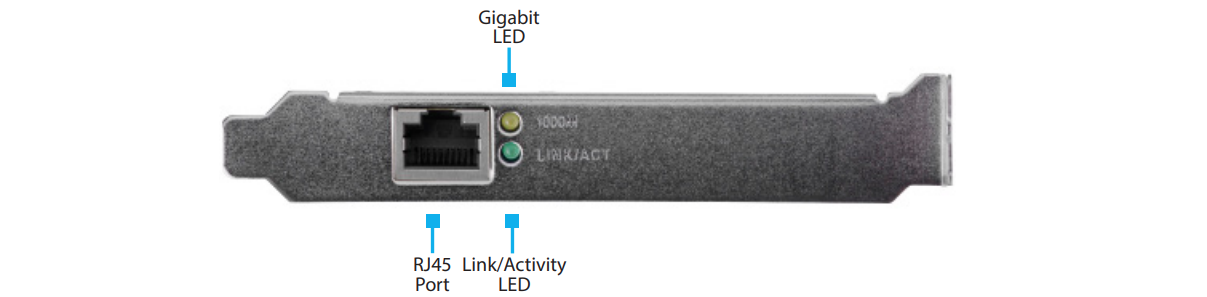

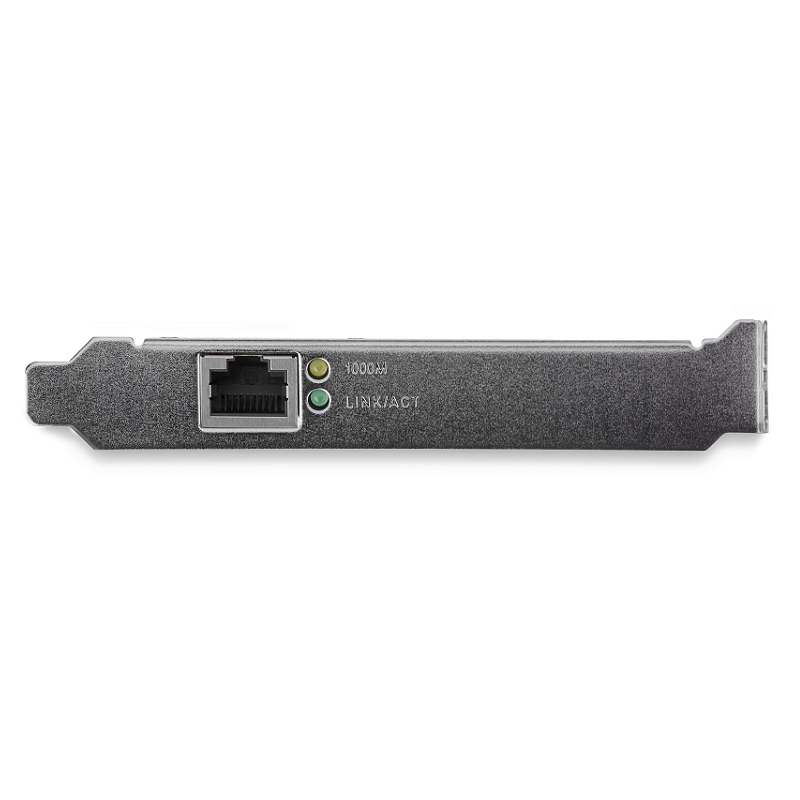

LED indicators | Activity, Link |
Operating conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | 0 - 100 °C |
Operating relative humidity (H-H) | 10 - 90% |
Packaging content | |
Manual | Yes |
Drivers included | Yes |
Low-profile bracket | Yes |
Weight & dimensions | |
Width | 120.3 mm |
Depth | 67.9 mm |
Height | 18 mm |
Weight | 40 g |
Packaging data | |
Package width | 142 cm |
Package depth | 171 cm |
Package height | 32 cm |
Package weight | 126 g |
Drivers included | Yes |
Low-profile bracket | Yes |
Manual | Yes |
Other features | |
Jumbo frames | 9000 |
Supported data transfer rates | 10 / 100 / 1000 Mbit/s |
Chipset | Realtek RTL8111E |
Manual | Yes |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file
