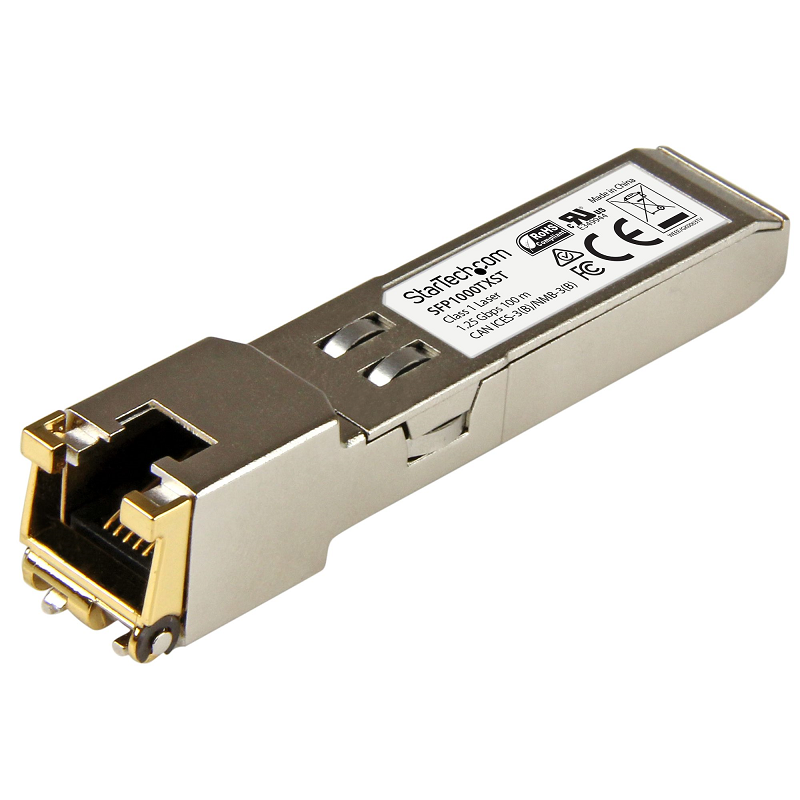

MSA Uncoded SFP Module - 1000BASE-TX - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The SFP1000TXST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 1000BASE-TX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 100 m (328 ft) and delivers dependable 1 GbE connectivity over copper cabling.
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Network | |
SFP transceiver type | Copper |
Maximum data transfer rate | 1000 Mbit/s |
Interface type | SFP+ |
Ethernet LAN (RJ-45) ports | 1 |
Performance | |
Product colour | Silver |
Housing material | Aluminium |
Hot-Plug support | Yes |
Digital Diagnostics Monitoring (DDM) | No |
SFP transceiver type | Copper |
Maximum transfer distance | 100 m |
Maximum data transfer rate | 1000 Mbit/s |
SFP transceiver standard | TX |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 13.9 mm |
Depth | 58.4 mm |
Height | 12.6 mm |
Weight | 25 g |
Logistics data | |
Master (outer) case width | 31 cm |
Master (outer) case length | 40 cm |
Master (outer) case height | 32 cm |
Quantity per master (outer) case | 70 pc(s) |
Full specification and details can be found in the PDF file
