| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FESDOCKU313E |
| Manufacturer No: | SDOCKU313E |
| Delivery: | In Stock: Next Day |
 |

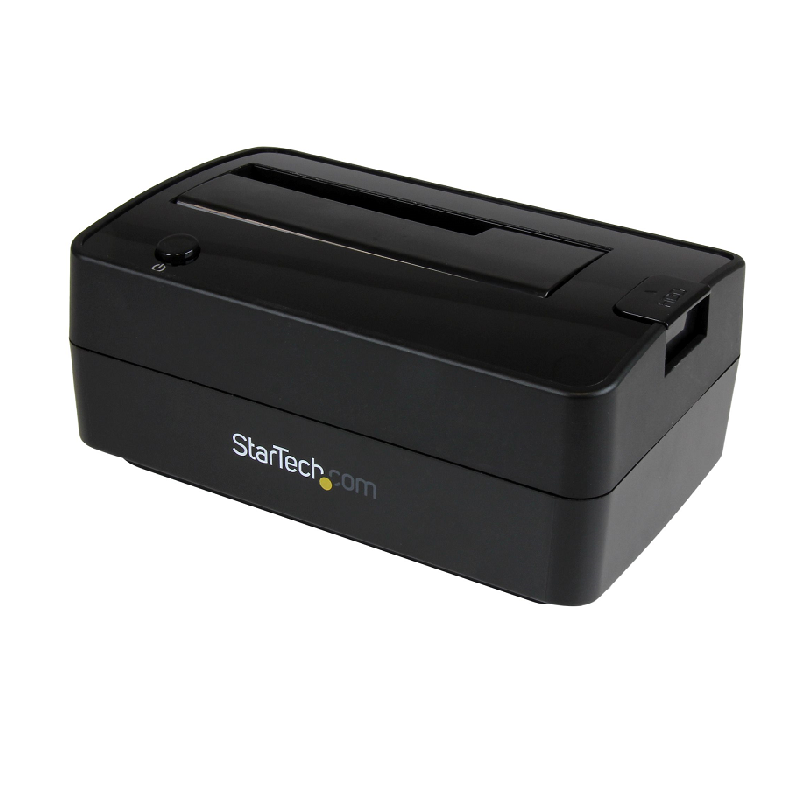

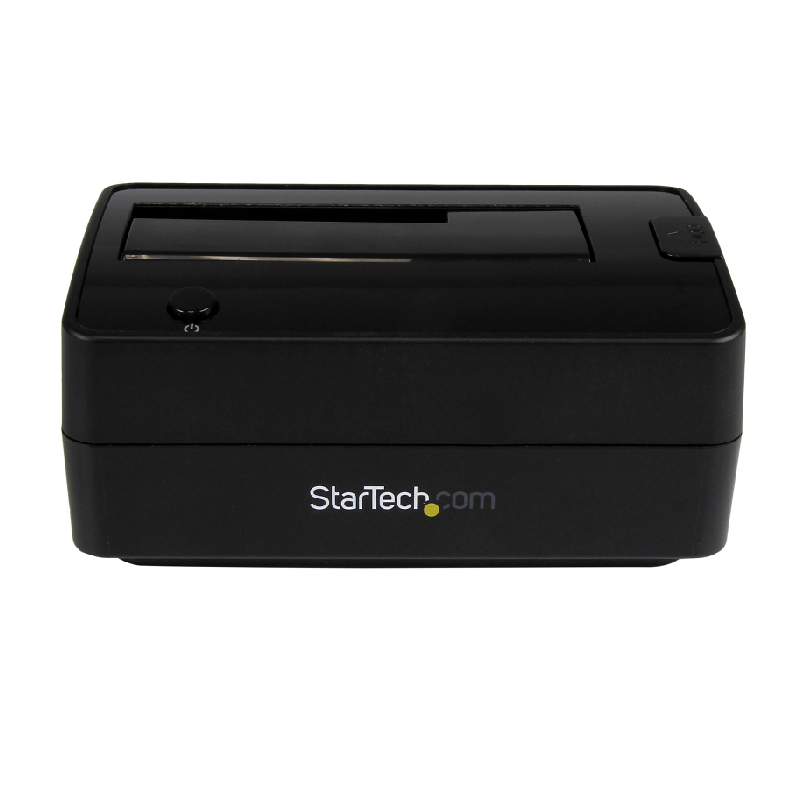

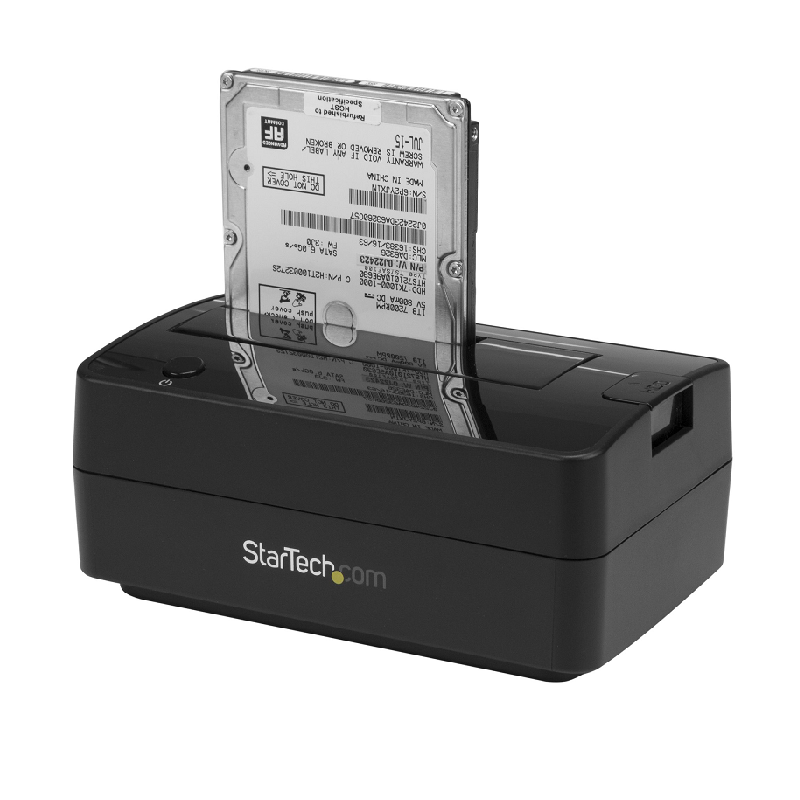

Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA
Dock and access your SATA SSD/HDD through high-performance USB 3.1 (10Gbps) or eSATA
Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.
Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.
You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.

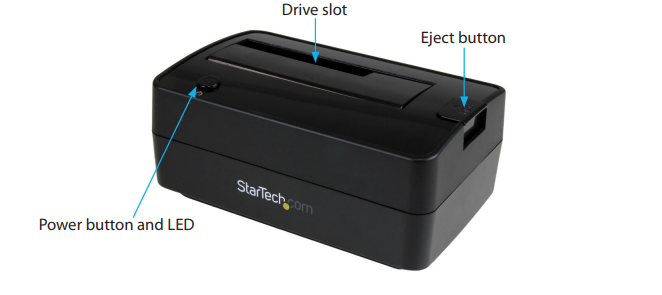

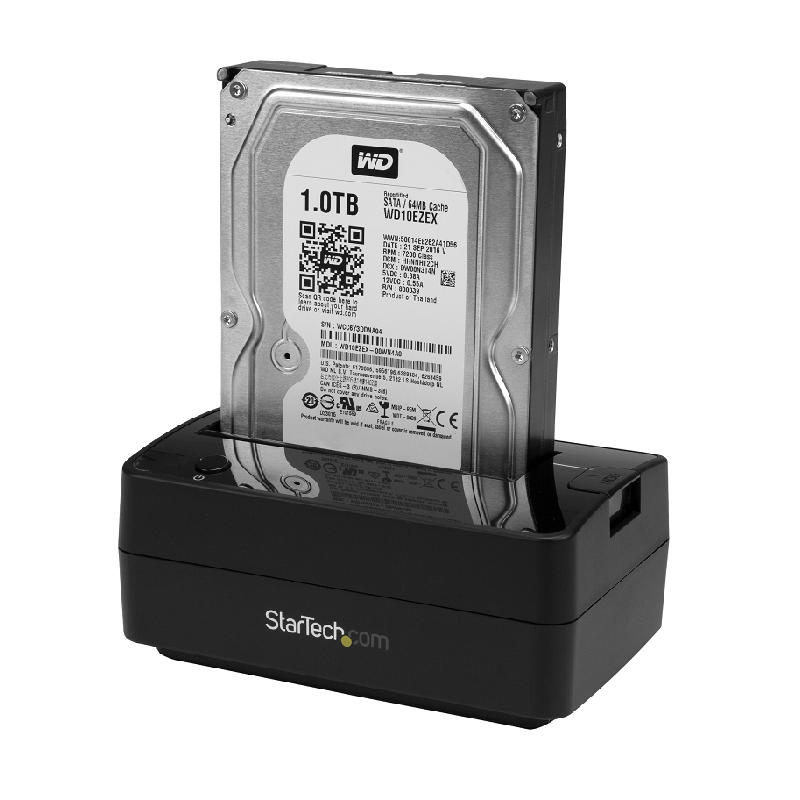

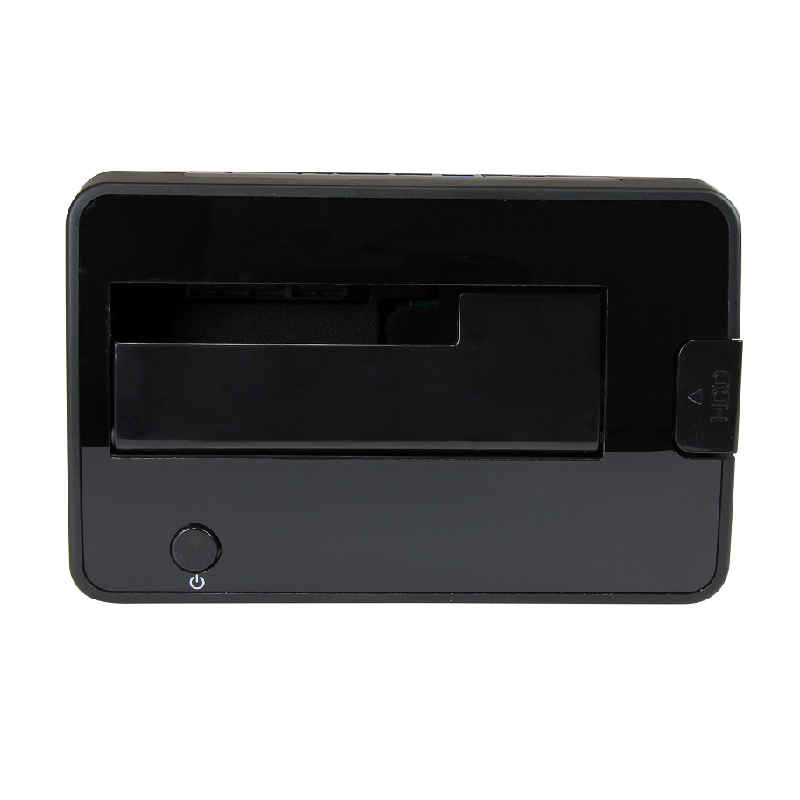

The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

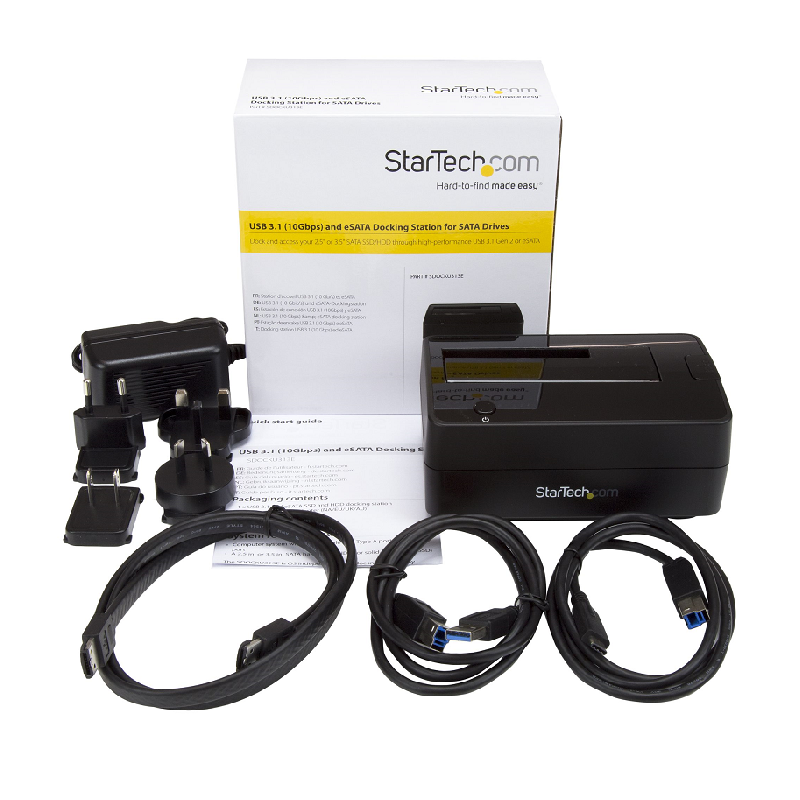

The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.
The docking station is also UASP compatible, for enhanced performance.
The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hard drive | |
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5, 3.5" |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 6 TB |
| Ports & interfaces | |

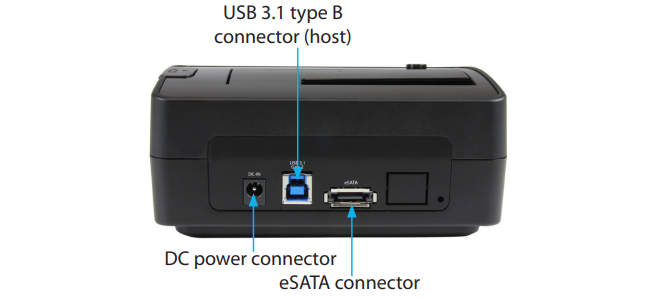

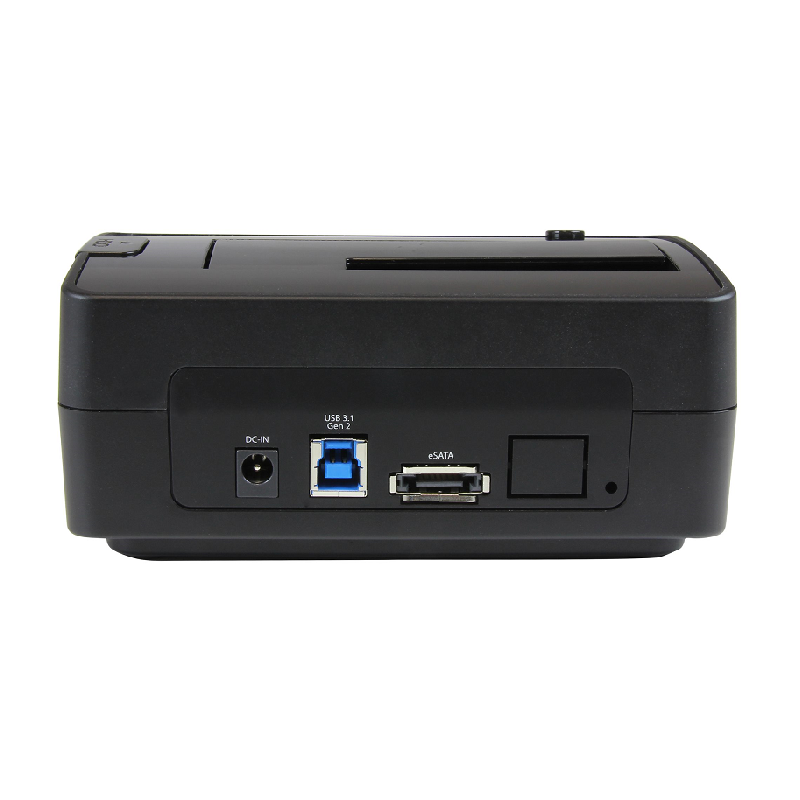

| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-B |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
| Technical details | |
| UASP support | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Material | Plastic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Chipset | ASMedia - ASM1351 |
| Sustainability certificates | RoHS |
| Power | |
| Power plug type | Type M |
| AC input voltage | 110 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Operational conditions | |
| Storage temperature (T-T) | 5 - 35 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Weight & dimensions | |
| Width | 93 mm |
| Depth | 145 mm |
| Height | 63 mm |
| Weight | 410 g |
| Packaging data | |
| Package width | 161 mm |
| Package depth | 171 mm |
| Package height | 91 mm |
| Package weight | 862 g |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Cables included | USB, eSATA |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
