| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FESDOCKU313 |
| Manufacturer No: | SDOCKU313 |
| Delivery: | In Stock: Next Day |
 |

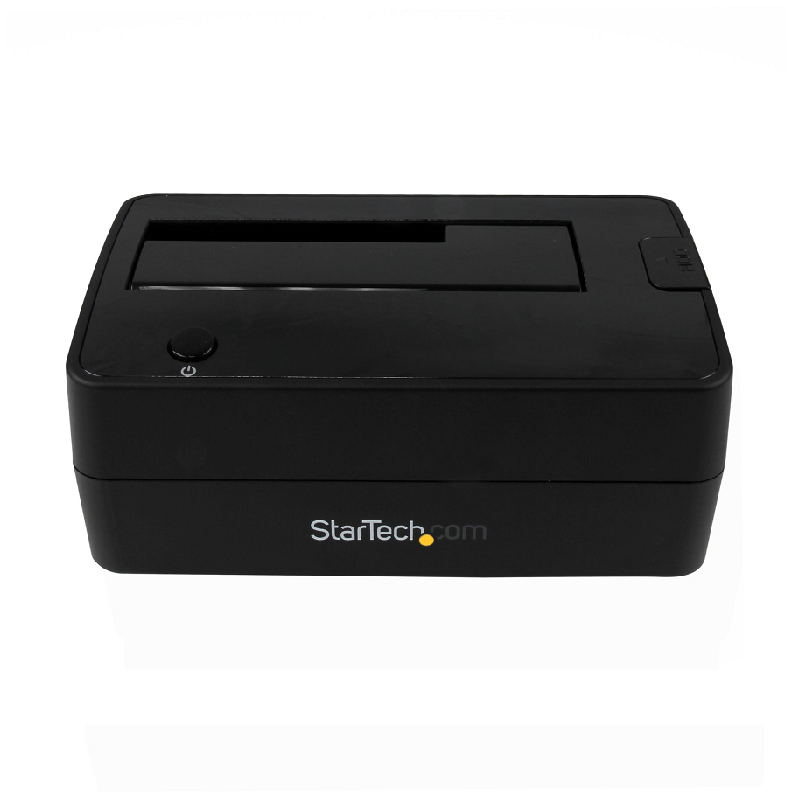

USB 3.1 (10Gbps) Single-Bay Dock for 2.5"/3.5" SATA SSD/HDD
Dock your 2.5" or 3.5" SATA drive over high performance USB 3.1 with UASP
Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive docking station. It supports both 2.5” and 3.5” form factors for solid-state and hard drives, with a high drive capacity of 6TB.

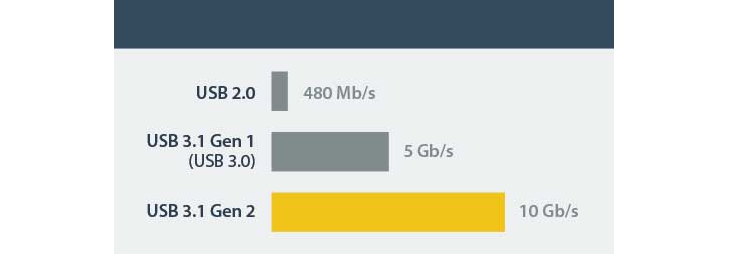

USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

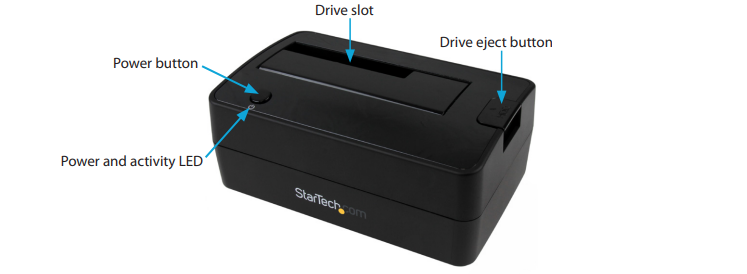

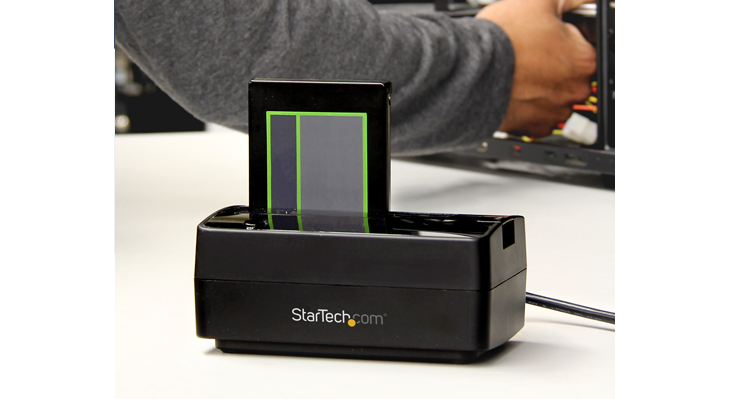

It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

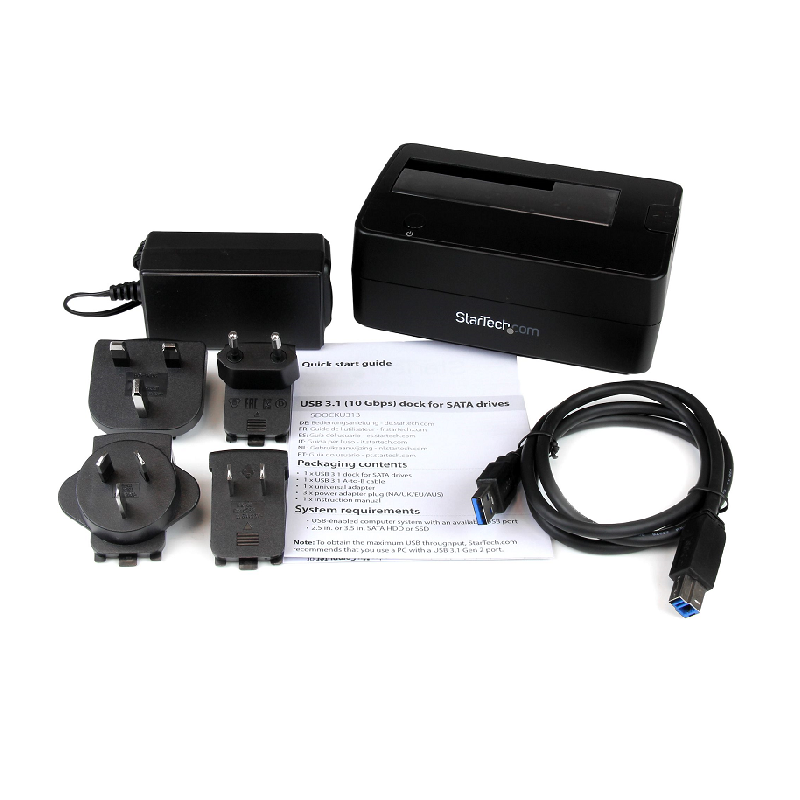

The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
The SDOCKU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hard drive | |
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5, 3.5" |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 6 TB |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |

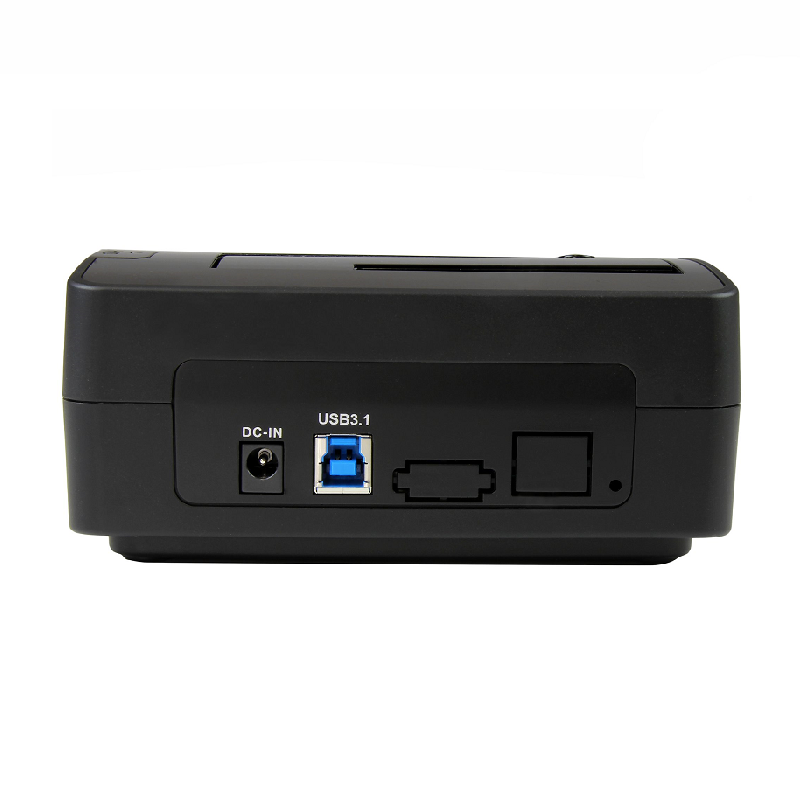

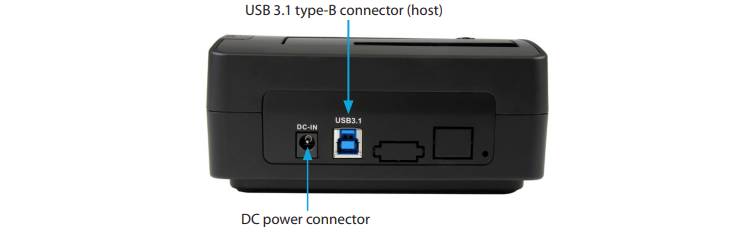

| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B |
| DC-in jack | Yes |
| Technical details | |
| UASP support | Yes |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Material | Plastic |
| Chipset | ASMedia - ASM1351 |
| Sustainability certificates | RoHS |
| Power | |
| Power plug type | Type M |
| AC input voltage | 110 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Operational conditions | |
| Storage temperature (T-T) | 5 - 35 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Weight & dimensions | |
| Width | 92.7 mm |
| Depth | 145 mm |
| Height | 64 mm |
| Weight | 392 g |
| Packaging data | |
| Package width | 163 mm |
| Package depth | 91 mm |
| Package height | 171 mm |
| Package weight | 758 g |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Cables included | USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
