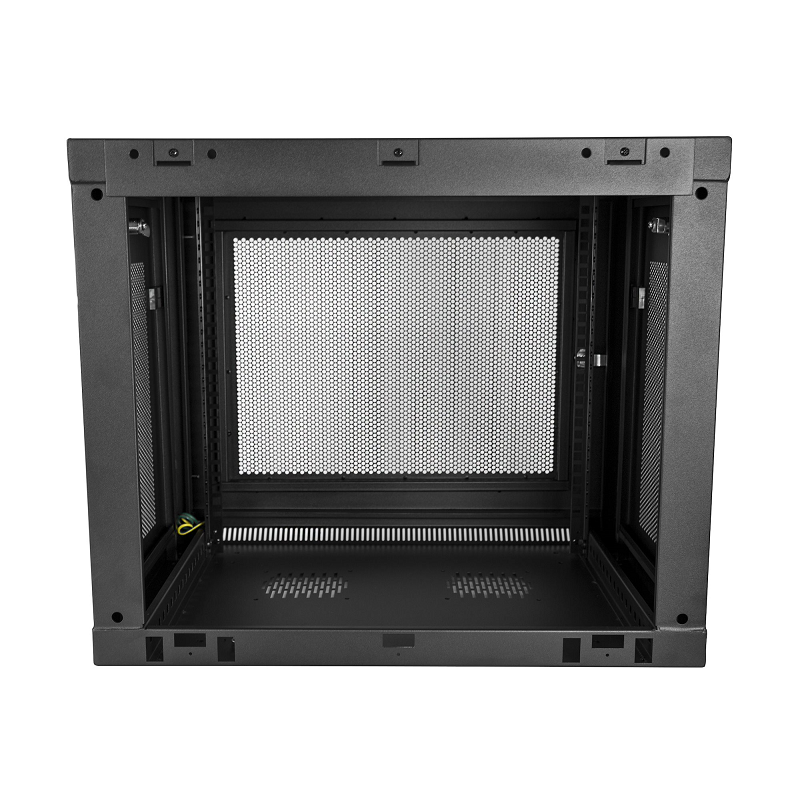

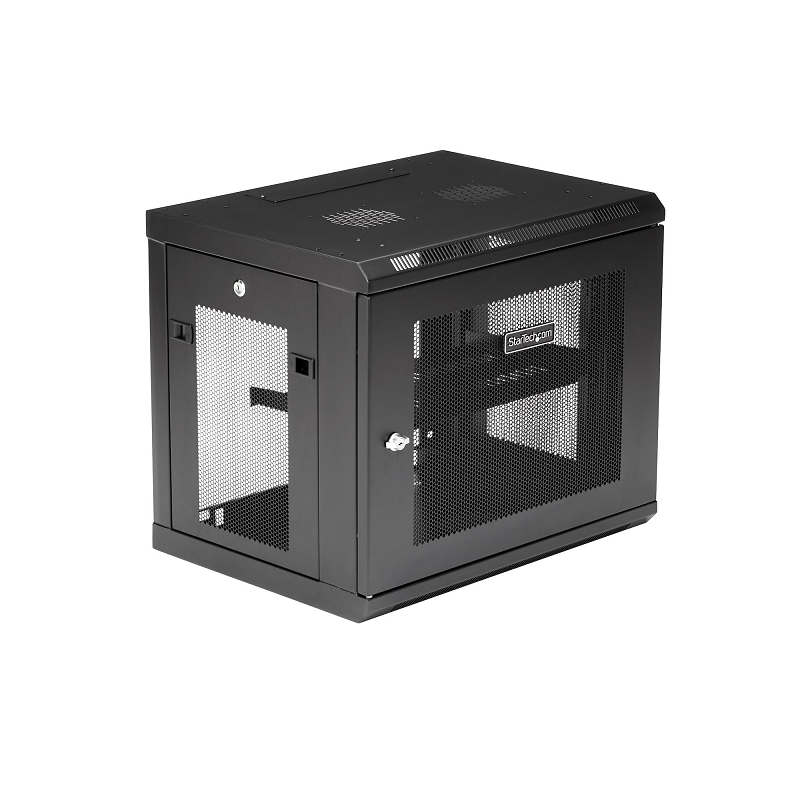

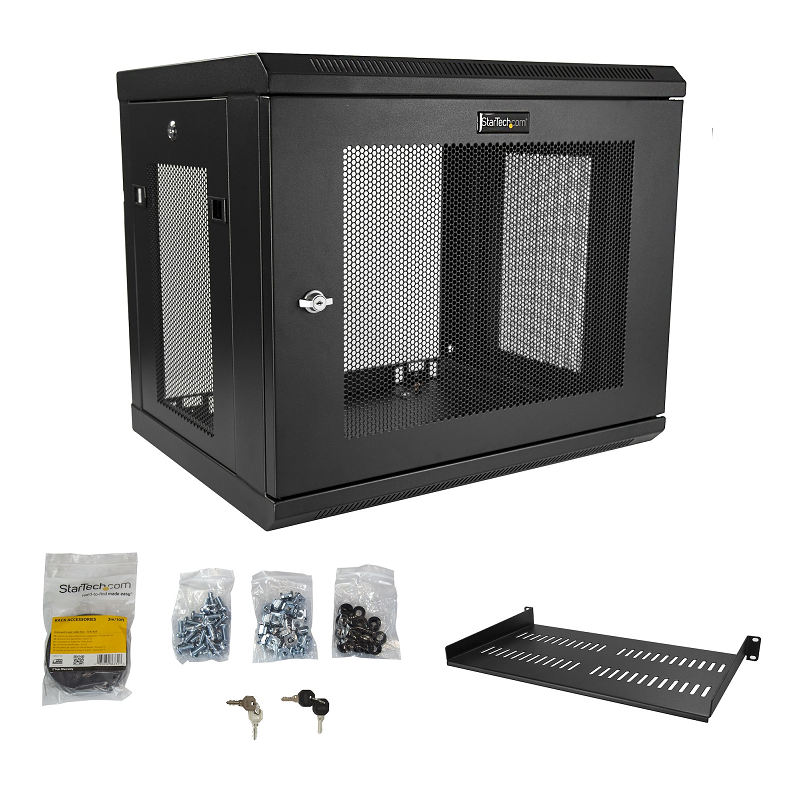

2 Post 9U 19" Wall Mount Network Cabinet - Adjustable Depth 6-15"- Locking IT Switch Depth Enclosure - Vented Computer/Electronics Equipment Data Rack w/Shelf & Hook & Loop Tape

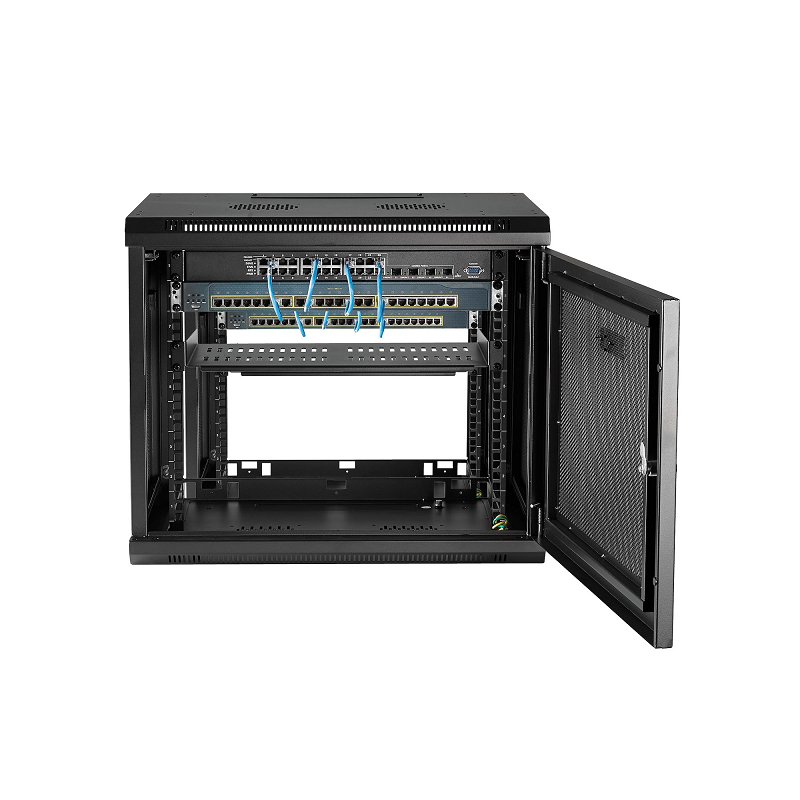

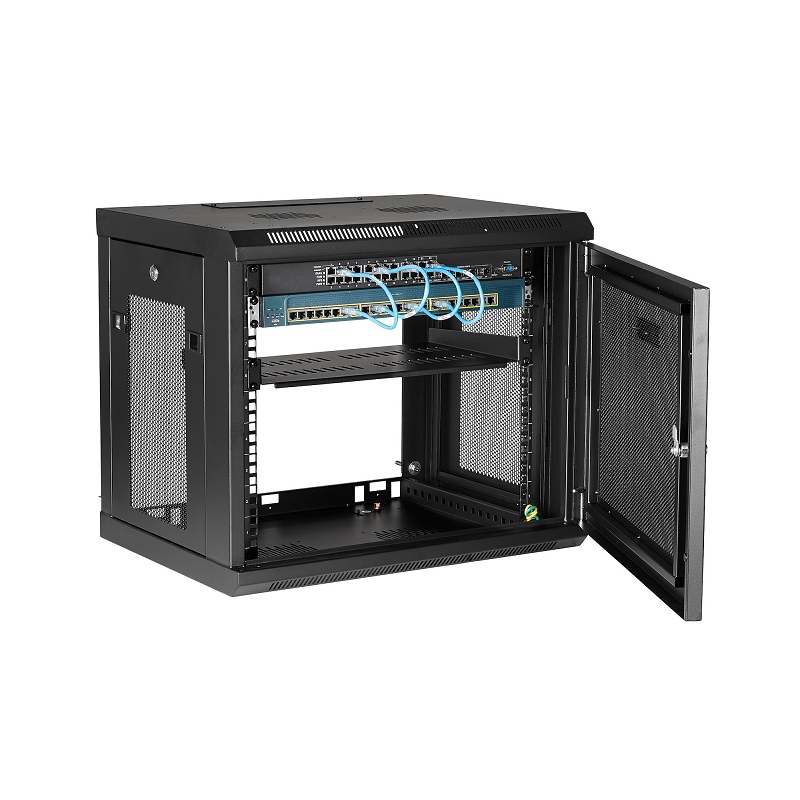

Use this wall mount network cabinet to mount your equipment to the wall
This 9U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features an adjustable mounting depth from 6 to 15 in. and offers a maximum load capacity of 200 lb. (90 kg).
Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that's not rack-mountable.
The wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements.

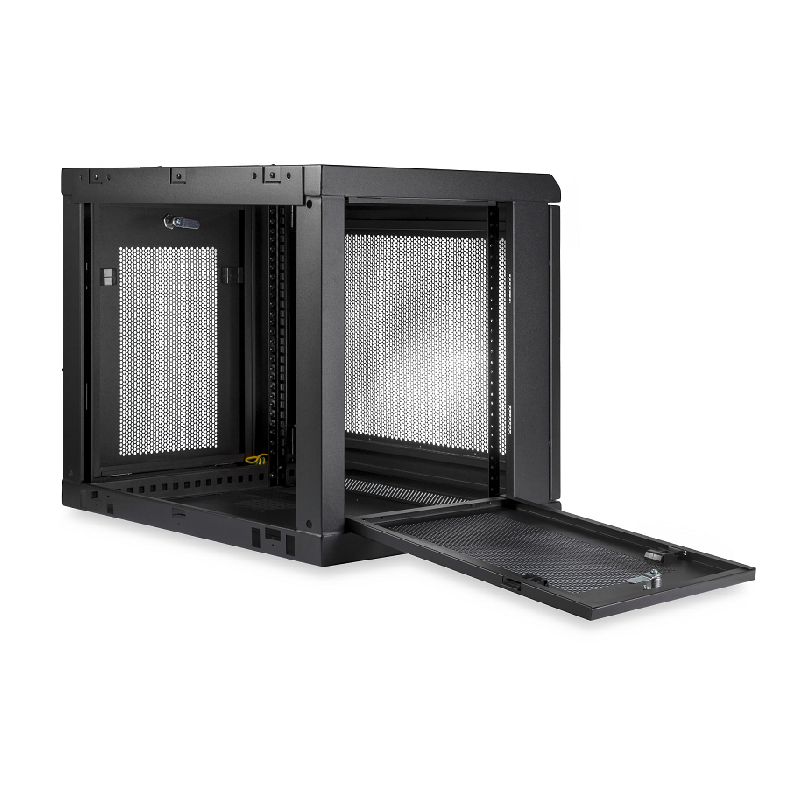

The 9U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you’ll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware.
For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.
To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.
For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.
The RK9WALM is backed by a StarTech.com 5-year warranty and free lifetime technical support.
1. Front door
2. Side panel
3. Vents
4. Cable access cover
5. Cable access opening
6. Mounting plate
7. Top panel
8. Bottom panel
Features | |
Key lock | Yes |
Frame type | Closed |
Product design | 2-post |
Rack capacity | 9U |
Adjustable mounting rails | Yes |
Removable front door | Yes |
Back door construction | Steel |
Front door construction | Steel |
Cable management | Yes |
Mounting hole shape | Square |
Front door key lock | Yes |
Type | Wall mounted rack |
Maximum weight capacity | 90 kg |
Material | Steel |
Product colour | Black |
Certification | CE, REACH |
Assembly required | No |
Technical details | |
Type | Wall mounted rack |
Compliance industry standards | EIA/ECA-310-E |
Sustainability certificates | RoHS |
Rack capacity | 9U |
Weight & dimensions | |
Width | 600 mm |
Height | 511 mm |
Depth | 450 mm |
Weight | 17.7 kg |
Inner width | 594 mm |
Inner depth | 433 mm |
Mounting depth (max) | 37 cm |
Maximum weight capacity | 90 kg |
Packaging data | |
Package width | 670 mm |
Package height | 580 mm |
Package depth | 530 mm |
Package weight | 20.8 kg |
Manual | Yes |
Nuts included | Yes |
Number of nuts | 36 |
Screws included | Yes |
Number of screws | 36 |
Wall mounting kit | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product diagram can be found in the PDF file
