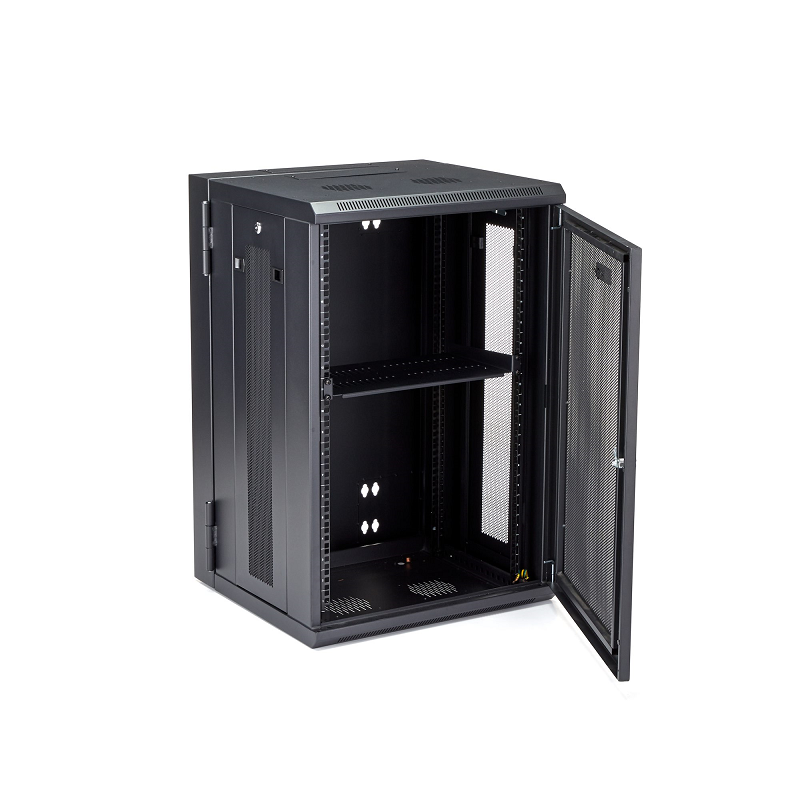

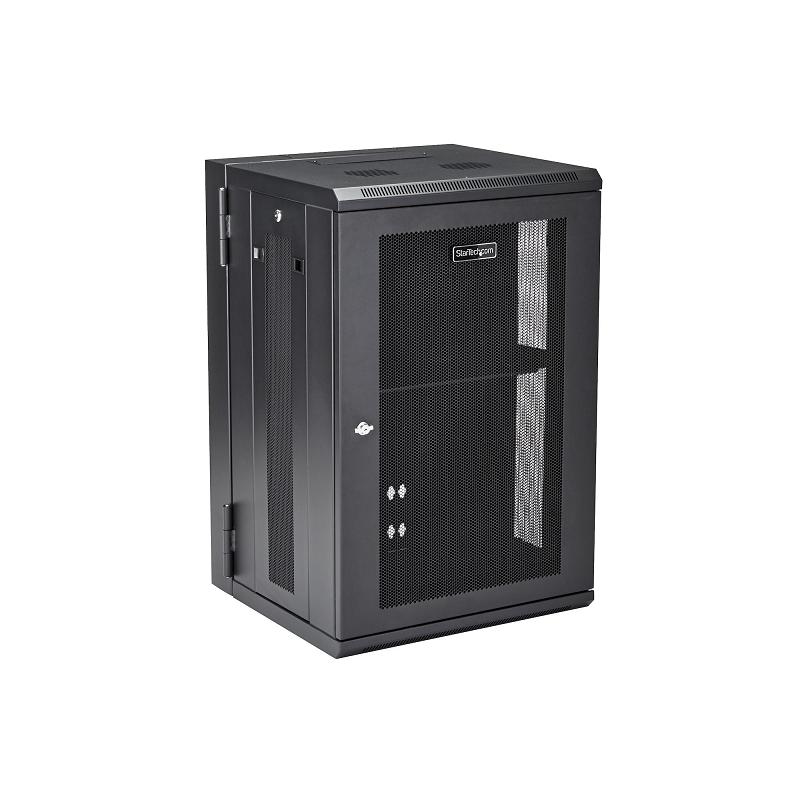

18U 19" Wall Mount Network Cabinet - 16" Deep Hinged Locking IT Network Switch Depth Enclosure - Assembled Vented Computer Equipment Data Rack w/Shelf & Flexible Side Panels
IT Cabinet | 16” Deep | EIA-310 | 4 Post | Weight Cap. 200 lbs. | Lockable | Assembled
This feature-rich 18U server room rack cabinet is ideal for optimizing equipment storage in network closets edge centers and technology shops with limited space, where there is a need for mountable equipment. It features adjustable mounting rails, mesh doors and panels as well as options for active cooling.

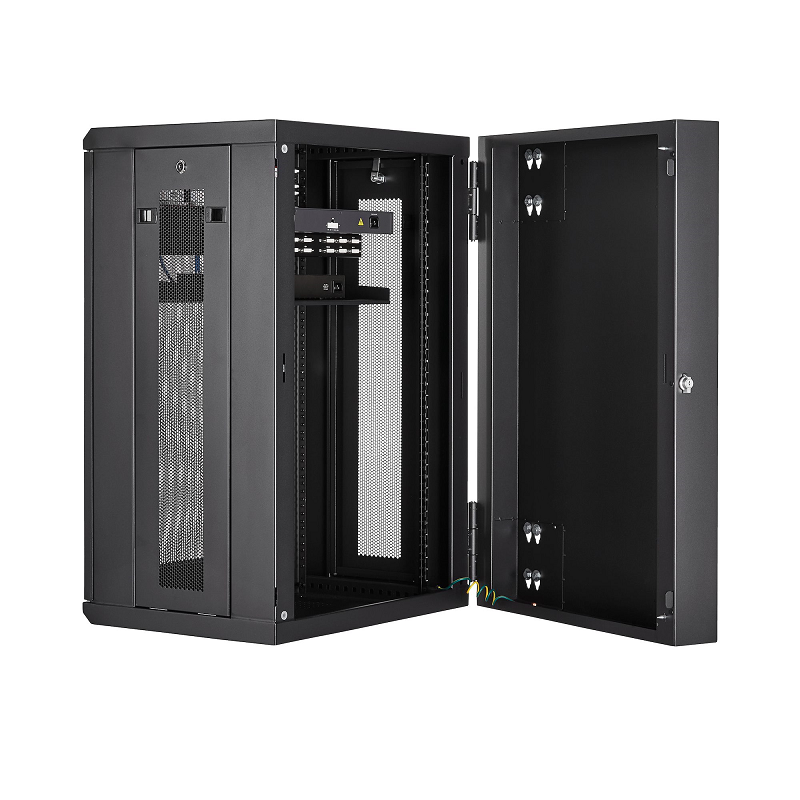

You can access your equipment and cabling from all four sides of this data center rack including the back with a rear hinge that swings the enclosure away from the wall.

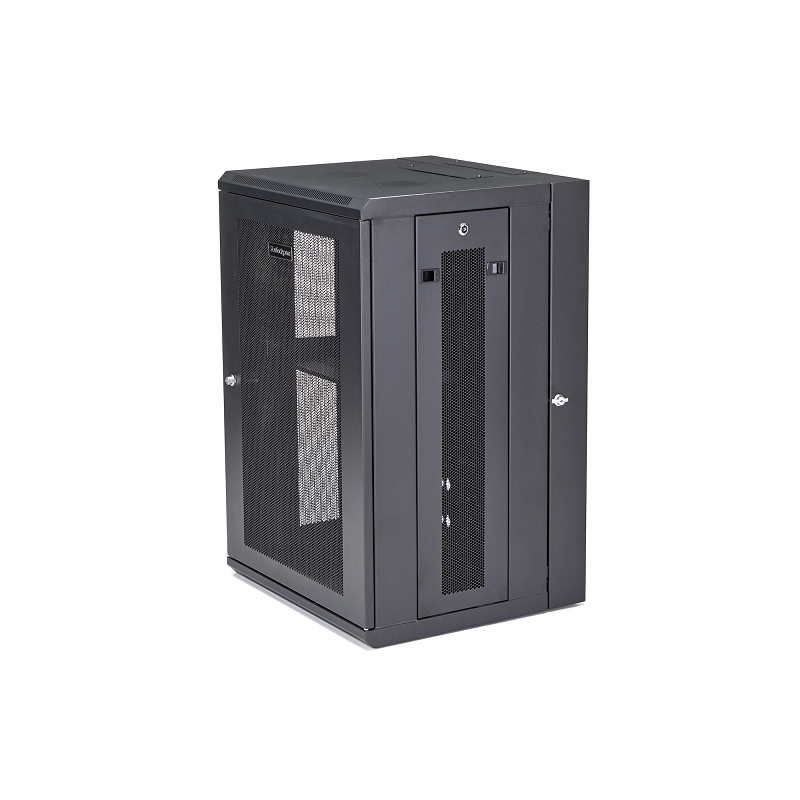

This wall mount equipment rack features premium-quality steel construction, with secure lockable front and back doors as well as lockable side panels. It features a grounding lug to prevent the build-up of static electricity which can result in electrostatic discharge (ESD), keeping your equipment protected from surges.
This rack also offers dependable protection through both passive and active cooling. The mesh front doors and side panels along with the vents in the top offer passive cooling while the top offers placement support for 120mm fan mounts for an additional active cooling option.

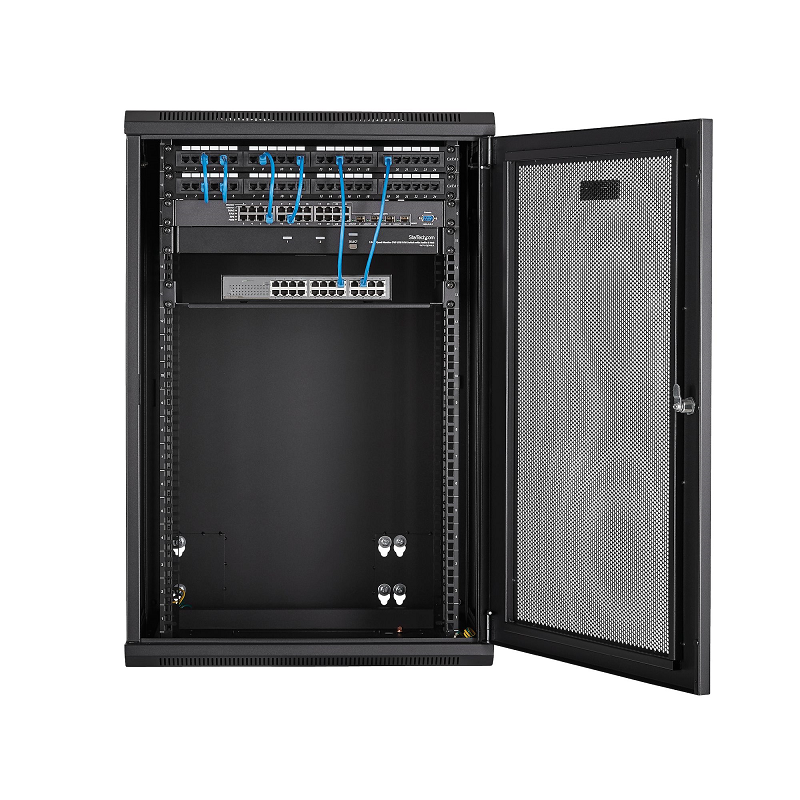

This 4-post server room cabinet has a weight capacity of up to 200 lbs. (90kg) and with a mounting depth from 2 to 16 inches, it can hold a variety of equipment. The mounting rails on the rack can be switched between both square cage nut hole or tapped 12-24 threaded hole styles. For non-mountable equipment, this rack also includes a 1U shelf.

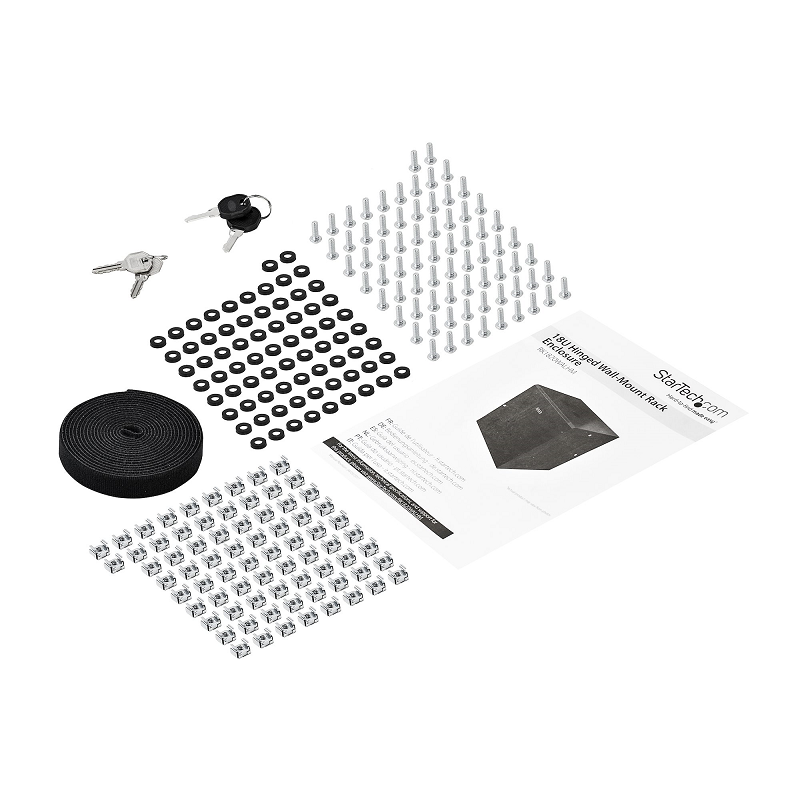

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
The RK1820WALHM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

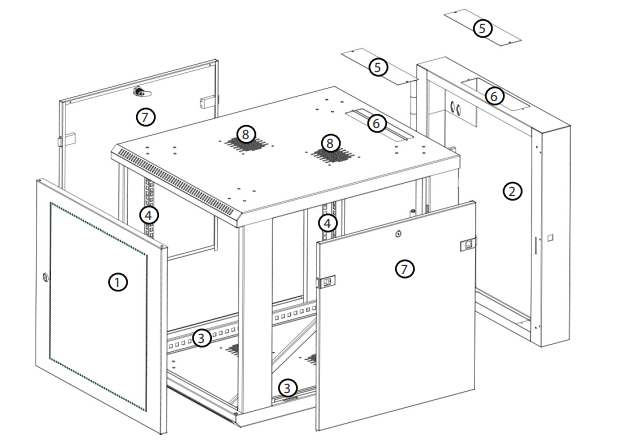

1. Front door
2. Rear door
3. Horizontal mounting rail
4. Vertical mounting rail
5. Cable access cover
6. Cable access opening
7. Side panel
8. Vent
Features | |
Frame type | Closed |
Design | 4-post |
Rack capacity | 18U |
Adjustable mounting rails | Yes |
Removable front door | Yes |
Back door construction | Steel |
Front door construction | Steel |
Mounting hole shape | Square |
Front door key lock | Yes |
Type | Wall mounted rack |
Maximum weight capacity | 90 kg |
Material | Steel |
Product colour | Black |
Technical details | |
Type | Wall mounted rack |
Compliance industry standards | EIA/ECA-310-E |
Sustainability certificates | CE, RoHS |
Rack capacity | 18U |
Weight & dimensions | |
Width | 610 mm |
Height | 904 mm |
Depth | 551 mm |
Weight | 67.7 kg |
Inner width | 597 mm |
Inner depth | 550 mm |
Mounting depth (max) | 40.6 cm |
Mounting depth (min) | 6 cm |
Maximum weight capacity | 90 kg |
Packaging data | |
Package width | 640 mm |
Package height | 1040 mm |
Package depth | 600 mm |
Package weight | 68.7 kg |
Nuts included | Yes |
Number of nuts | 75 |
Screws included | Yes |
Number of screws | 75 |
Manual | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product diagram can be found in the PDF file
