| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FERK630WALVS |
| Manufacturer No: | RK630WALVS |
| Delivery: | In Stock: Next Day |
 |

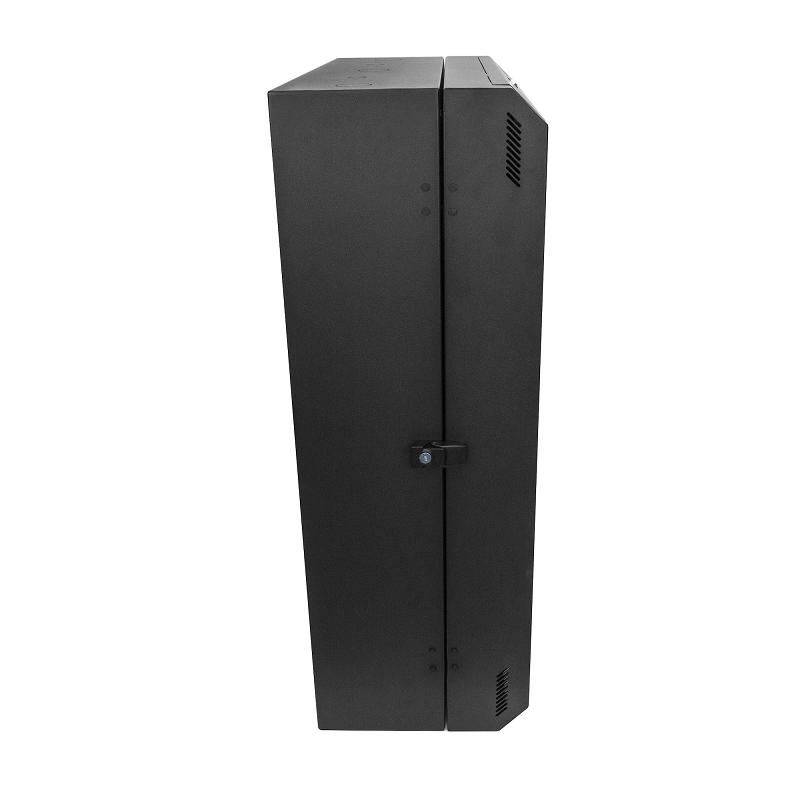

6U Vertical Server Cabinet - 30 in. Deep
Vertically wall-mount your server or networking equipment in this 6U network cabinet

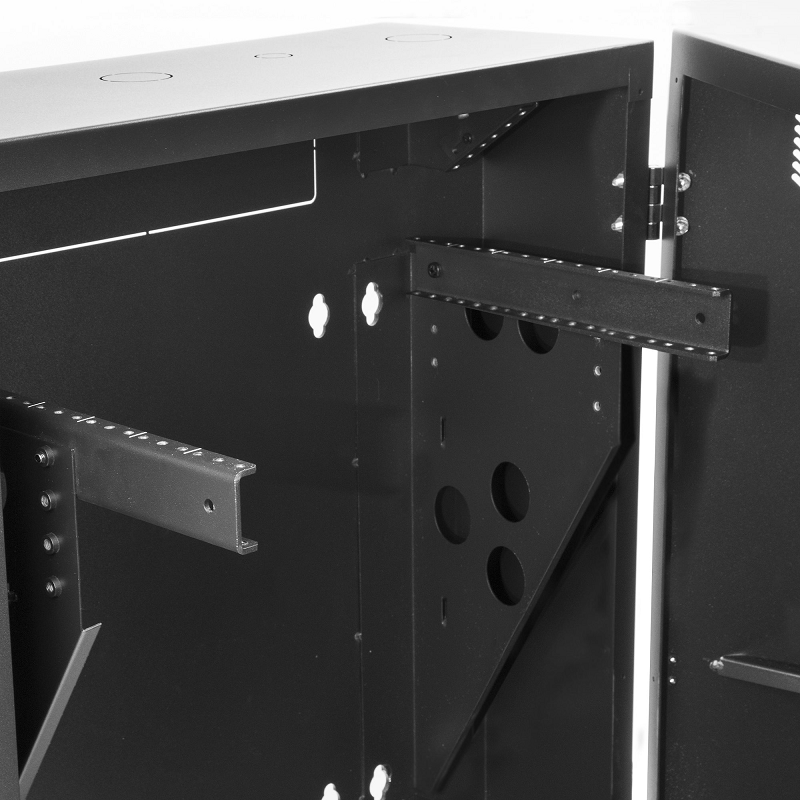

This 6U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.

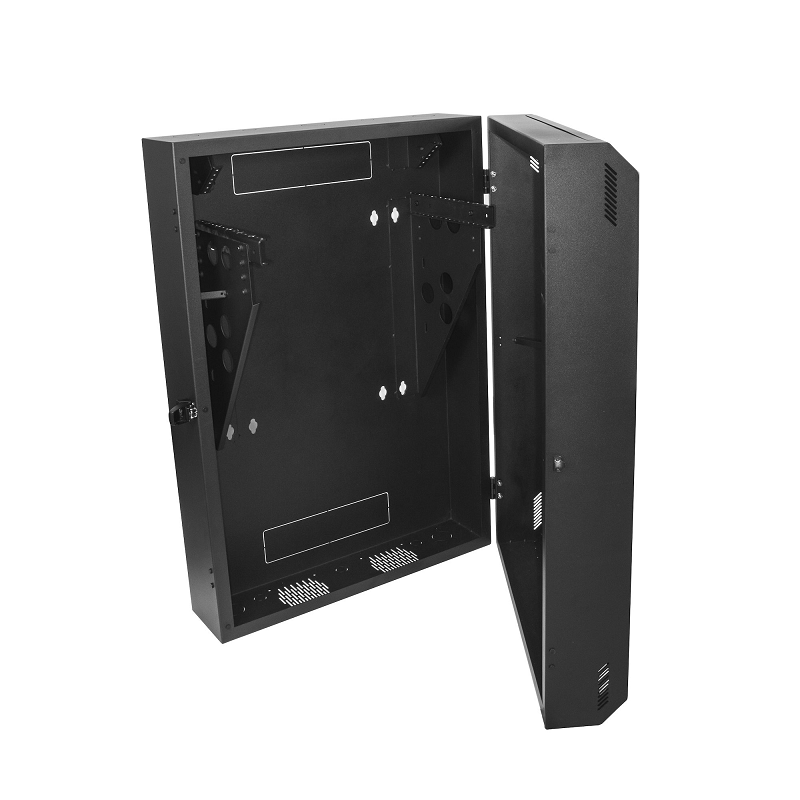

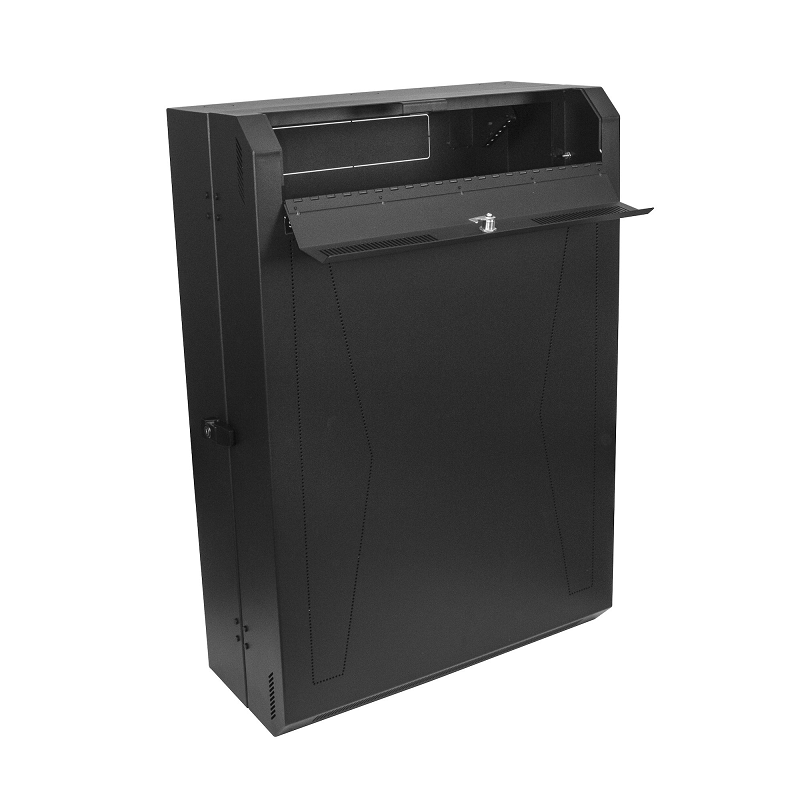

To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.

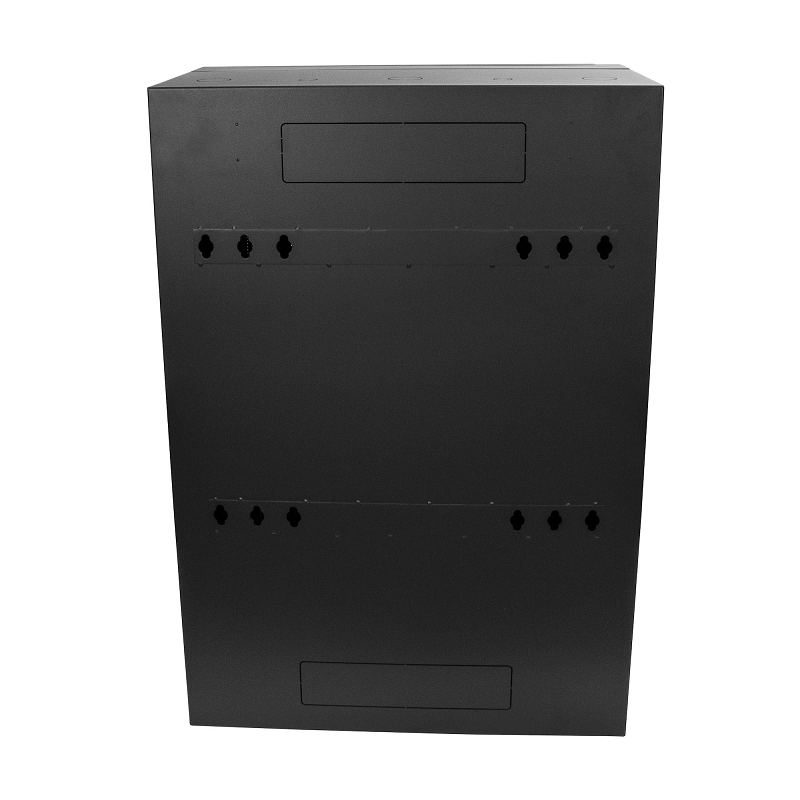

The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK630WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
| Features | |
| Frame type | Closed |
| Design | 2-post |
| Rack capacity | 6U |
| Castor wheels | No |
| Adjustable mounting rails | Yes |
| Removable back door | No |
| Removable front door | No |
| Removable side panels | No |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Back door key lock | No |
| Front door key lock | Black |
| Side panel key lock | No |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| Technical details | |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Sustainability certificates | RoHS |
| Rack capacity | 6U |

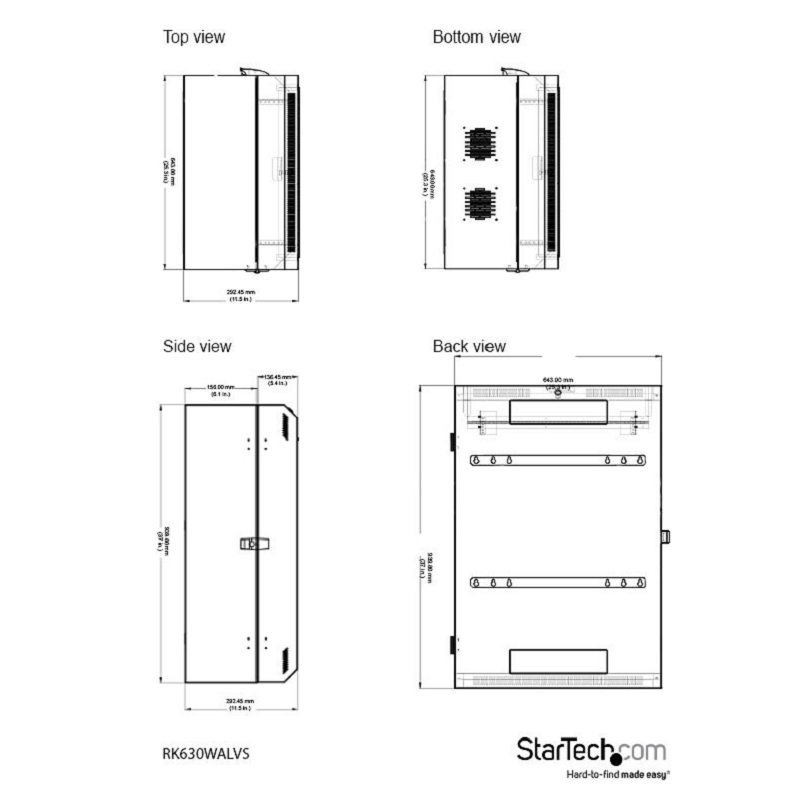

| Weight & dimensions | |
| Width | 645 mm |
| Height | 941 mm |
| Depth | 294 mm |
| Weight | 33 kg |
| Inner width | 641 mm |
| Inner depth | 288 mm |
| Mounting depth (max) | 76 cm |
| Maximum weight capacity | 90 kg |
| Packaging data | |
| Package width | 720 mm |
| Package height | 1000 mm |
| Package depth | 370 mm |
| Package weight | 35 kg |
| Manual | Yes |

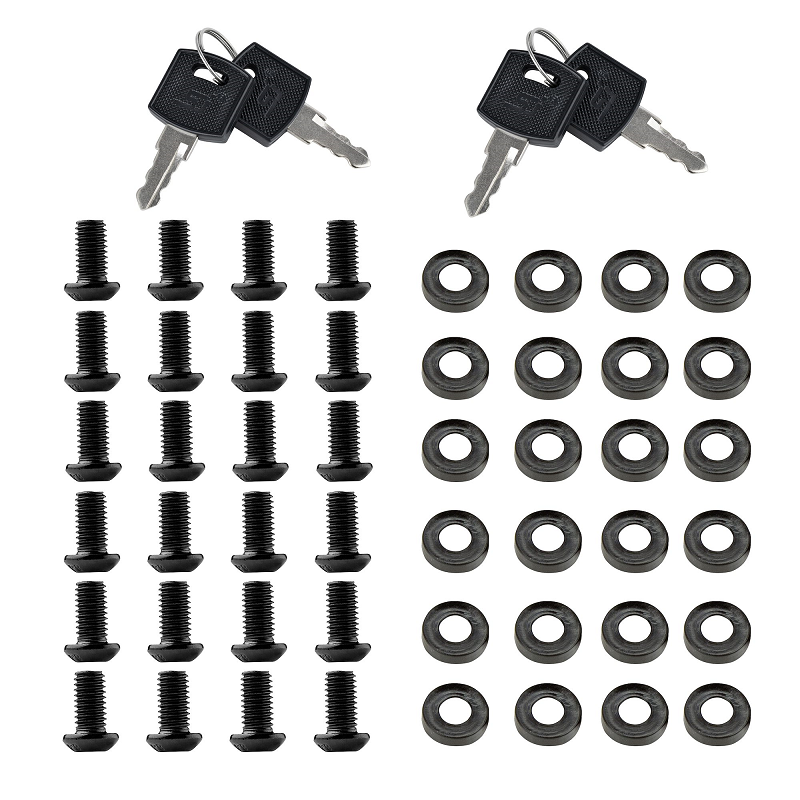

| Nuts included | Yes |
| Number of nuts | 24 |
| Screws included | Yes |
| Number of screws | 24 |
| Number of washers included | 24 |
Full specification and details can be found in the PDF file
An installation manual can be found in the PDF file
