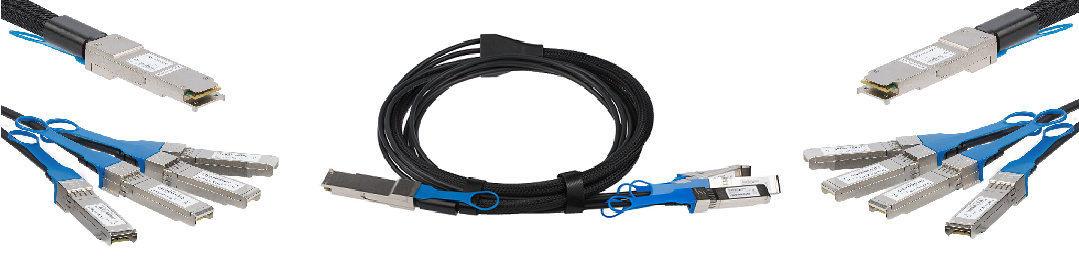

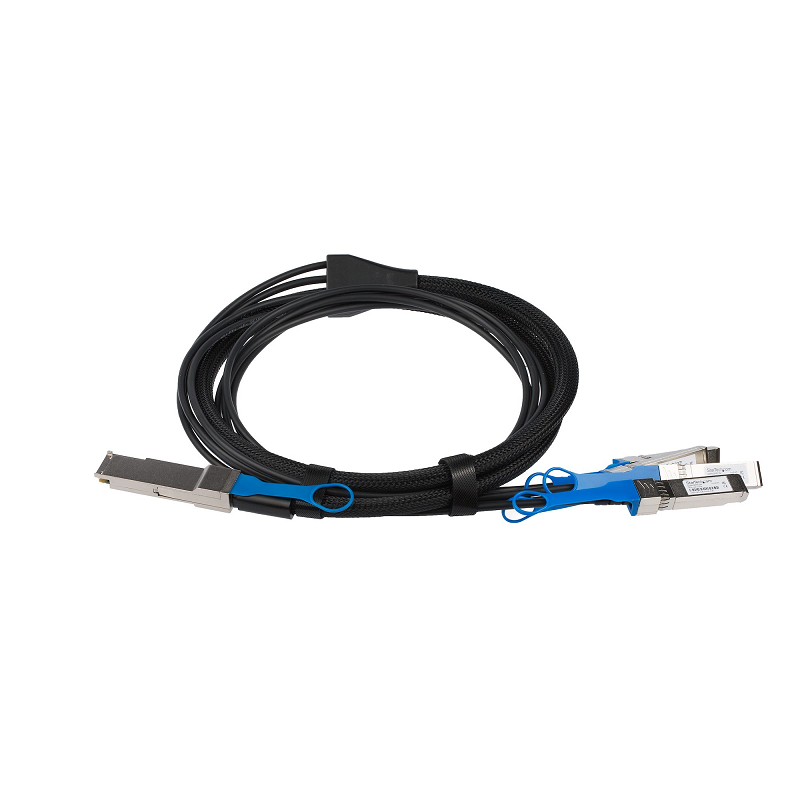

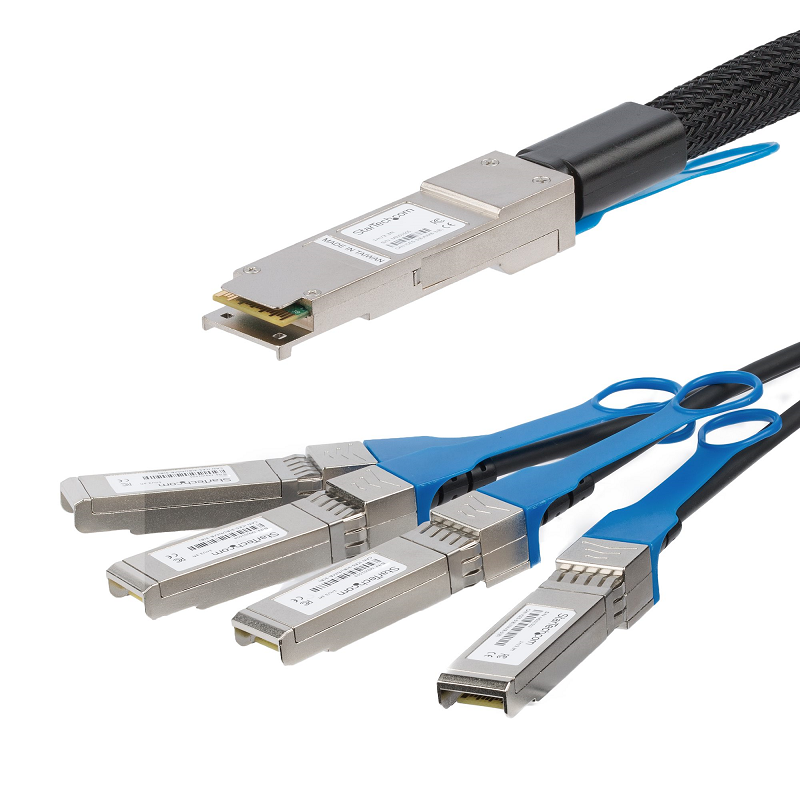

MSA Uncoded Compatible 2m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC
Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime Warranty
The QSFP4SFPPC2M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.
At 2 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies.?It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Technical details | |
Jacket material | Polyvinyl chloride (PVC) |
Cable length | 2 m |
Sustainability certificates | RoHS |
Features | |
Connector 1 | QSFP+ |
Connector 2 | 4x SFP+ |
Data transfer rate | 40000 Mbit/s |
Certification | CE, FCC, REACH |
Product colour | Black |
Connector 2 gender | Male |
Connector 1 gender | Male |
Input impedance | 100 |
AWG wire size | 30 |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 80 °C |
Weight & dimensions | |
Cable length | 2 m |
Width | 14 mm |
Depth | 2000 mm |
Height | 12 mm |
Weight | 246 g |
Logistics data | |
Master (outer) case width | 25.5 cm |
Master (outer) case length | 34.4 cm |
Master (outer) case height | 29.5 cm |
Products per master (outer) case | 10 pc(s) |
Full specification and details can be found in the PDF file
