| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEQSFP40SR4ST |
| Manufacturer No: | QSFP40SR4ST |
| Delivery: | In Stock: 7-10 Days |
 |

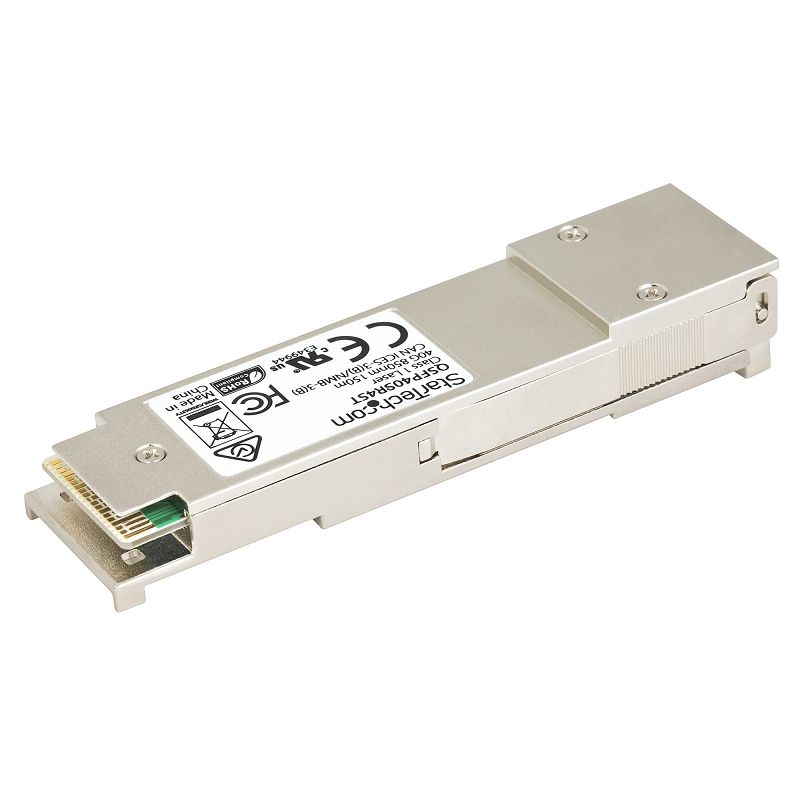

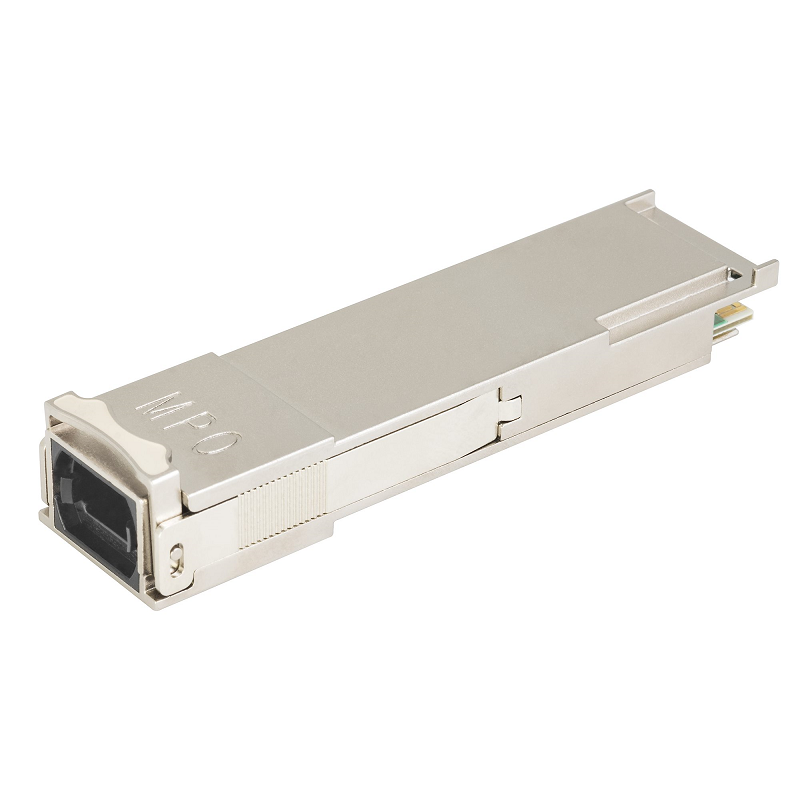

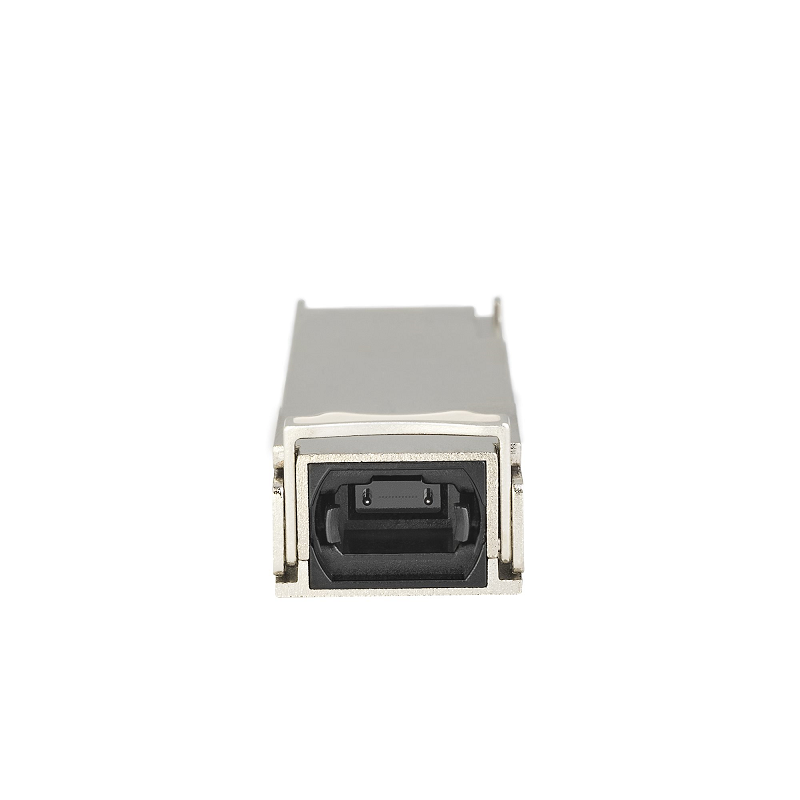

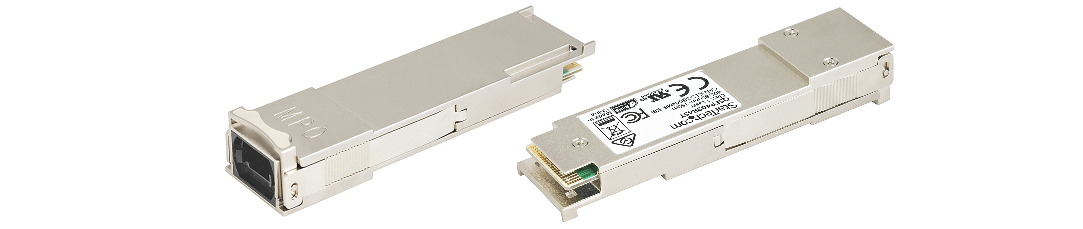

MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 100m - 850nm - DDM
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty
The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
| Network | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Fiber optic connector | MPO |
| Performance | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 1489426 h |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 40000 Mbit/s |
| SFP transceiver standard | SR4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18.4 mm |
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 34 g |
| Logistics data | |
| Master (outer) case width | 27 cm |
| Master (outer) case length | 34 cm |
| Master (outer) case height | 33 cm |
| Quantity per master (outer) case | 60 pc(s) |
Full specification and details can be found in the PDF file
MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 100m - 850nm - DDM
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty
The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
| Network | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Fiber optic connector | MPO |
| Performance | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 1489426 h |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 40000 Mbit/s |
| SFP transceiver standard | SR4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18.4 mm |
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 34 g |
| Logistics data | |
| Master (outer) case width | 27 cm |
| Master (outer) case length | 34 cm |
| Master (outer) case height | 33 cm |
| Quantity per master (outer) case | 60 pc(s) |
Full specification and details can be found in the PDF file
