| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEIES5102 |
| Manufacturer No: | IES5102 |
| Delivery: | In Stock: Next Day |
 |

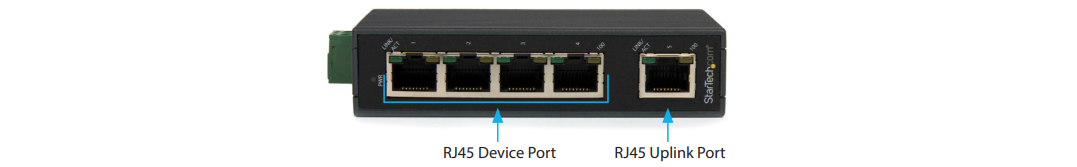

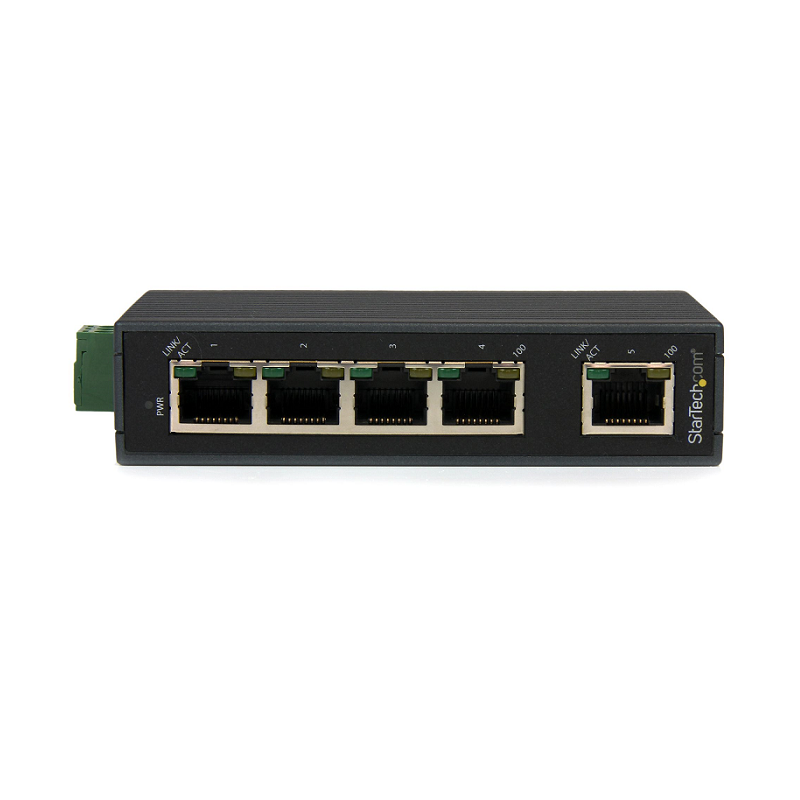

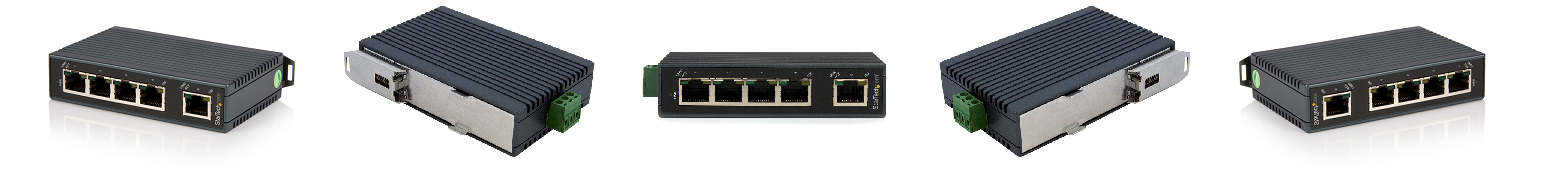

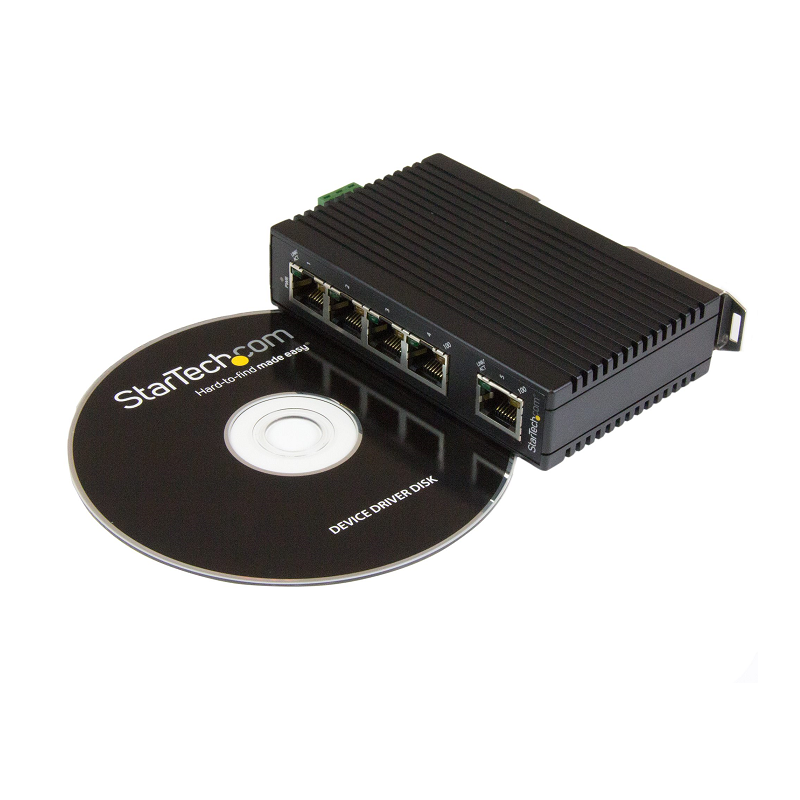

5-Port Industrial Ethernet Switch - DIN Rail Mountable
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch
This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.

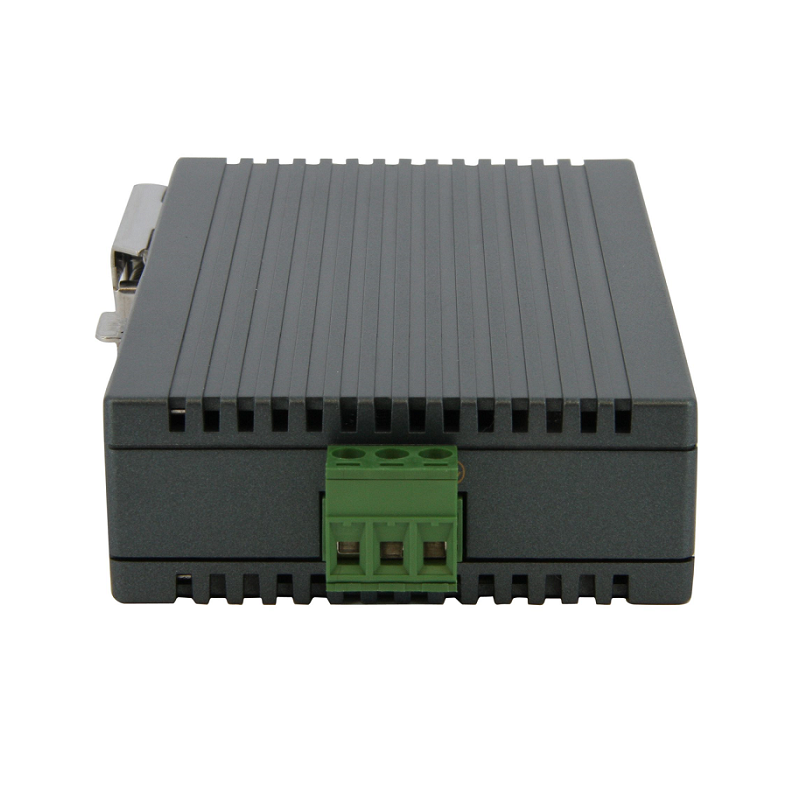

Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.

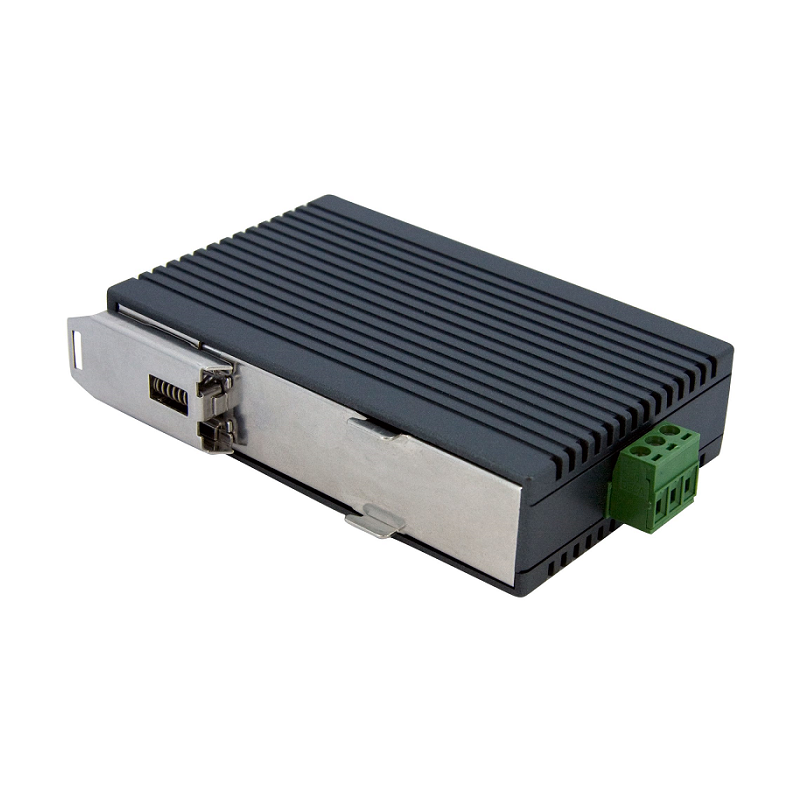

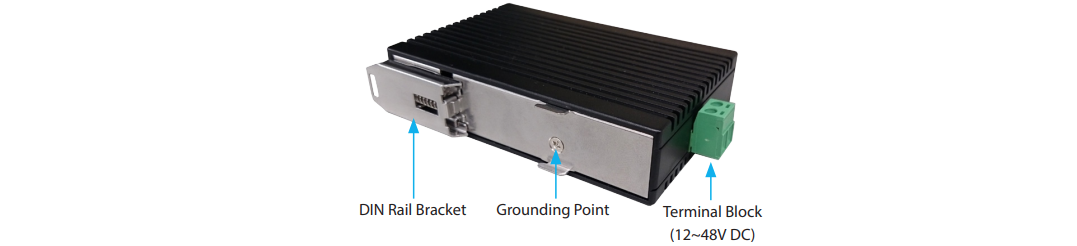

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Performance | |
| Auto-negotiation | Yes |
| Maximum data transfer rate | 200 Mbit/s |
| Maximum cable length | 100 m |
| Buffer size | 56 KB |
| Mean time between failures (MTBF) | 1179133 h |
| Power | |
| Input voltage | 12 - 48 V |
| Power consumption (max) | 2.12 W |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 1179133 h |
| Housing material | Plastic |
| Rack mounting | Yes |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Store-and-forward | Yes |
| Jumbo frames support | No |
| Design | |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Housing material | Plastic |
| Certification | CE, FCC |
| Rack mounting | Yes |
| Regulatory Approvals | EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Weight & dimensions | |
| Width | 25 mm |
| Depth | 70 mm |
| Height | 110 mm |
| Weight | 148 g |
| Packaging data | |
| Package width | 178 mm |
| Pakage depth | 198 mm |
| Package height | 79 mm |
| Package weight | 312 g |
| Manual | Yes |
| Terminal block included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
