| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEHDBOOST4K2 |
| Manufacturer No: | HDBOOST4K2 |
| Delivery: | In Stock: Next Day |
 |
45 ft. (14 m) HDMI Signal Booster - 4K 60Hz
HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.

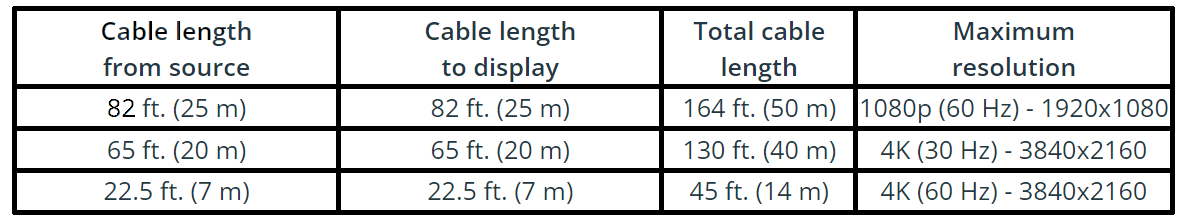

When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).

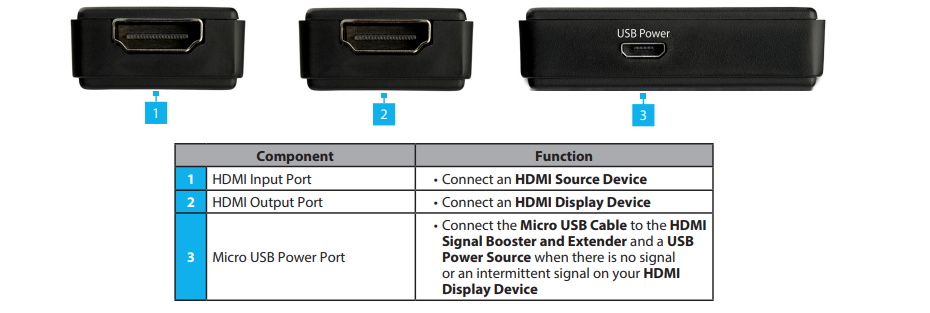

The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.

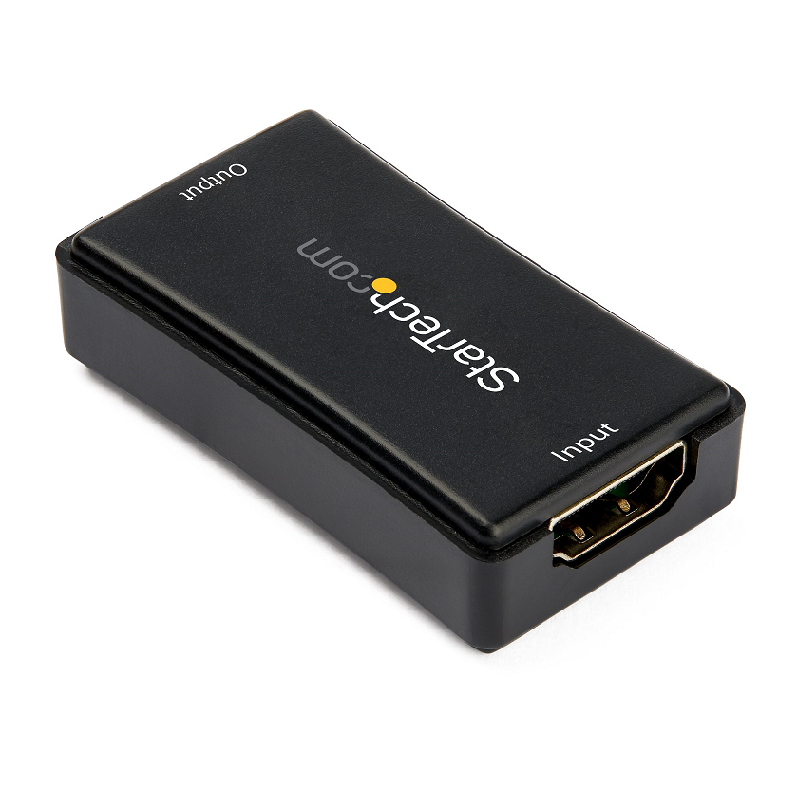

With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.

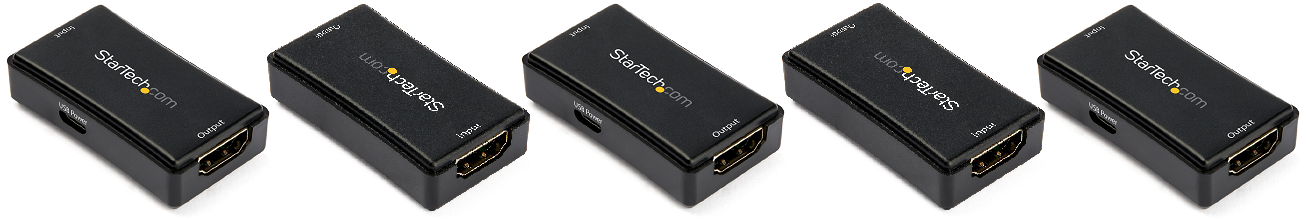

Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
| Technical details | |
| Material | Plastic |
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Daisy chain | No |
| Maximum refresh rate | 60 Hz |
| Certification | REACH, CE, FCC |
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 14 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| HDCP version | 2.2 |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| USB ports quantity | 1 |
| USB connector type | Micro-USB B |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 2.0 |
| Power | |
| Power consumption (typical) | 2.5 W |

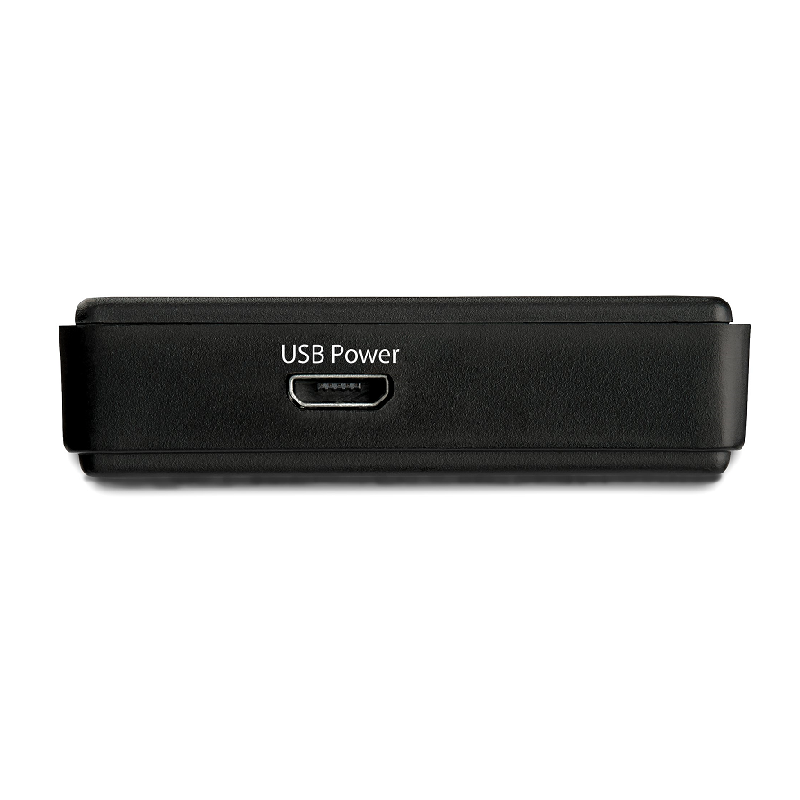

| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 52 mm |
| Height | 13.7 mm |
| Depth | 28.5 mm |
| Weight | 15 g |
| Packaging data | |
| Package width | 140 mm |
| Package height | 30 mm |
| Package depth | 170 mm |
| Package weight | 113 g |
| Quick start guide | Yes |

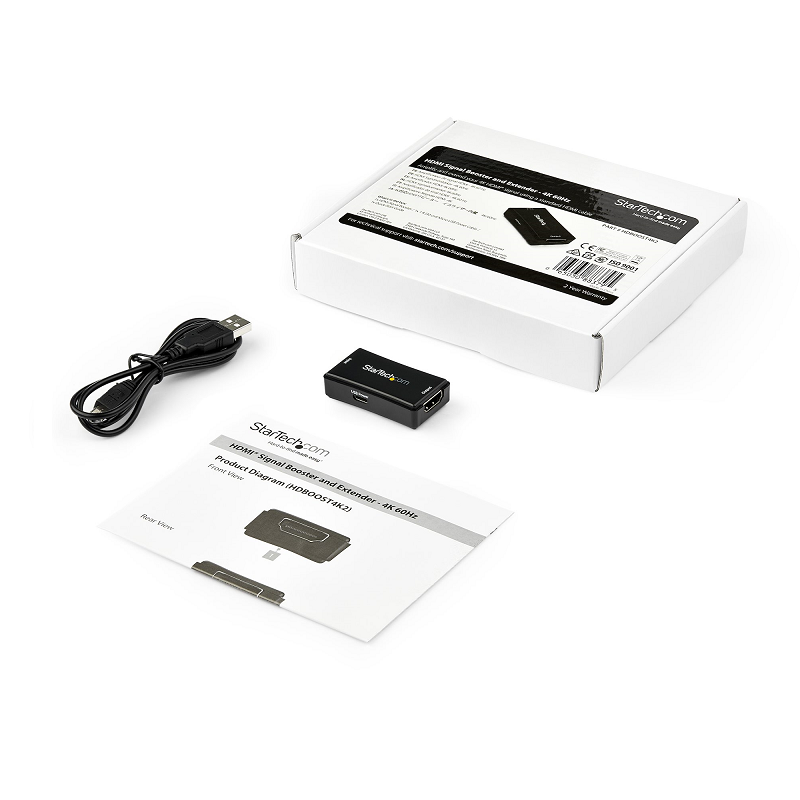

| Cables included | USB |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
45 ft. (14 m) HDMI Signal Booster - 4K 60Hz
HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
| Technical details | |
| Material | Plastic |
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Daisy chain | No |
| Maximum refresh rate | 60 Hz |
| Certification | REACH, CE, FCC |
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 14 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| HDCP version | 2.2 |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| USB ports quantity | 1 |
| USB connector type | Micro-USB B |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 2.0 |
| Power | |
| Power consumption (typical) | 2.5 W |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 52 mm |
| Height | 13.7 mm |
| Depth | 28.5 mm |
| Weight | 15 g |
| Packaging data | |
| Package width | 140 mm |
| Package height | 30 mm |
| Package depth | 170 mm |
| Package weight | 113 g |
| Quick start guide | Yes |
| Cables included | USB |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
