Ceiling TV Mount - 8.2' to 9.8' Long Pole
Display Ceiling Mount | Full Motion | For 32" to 75" Displays

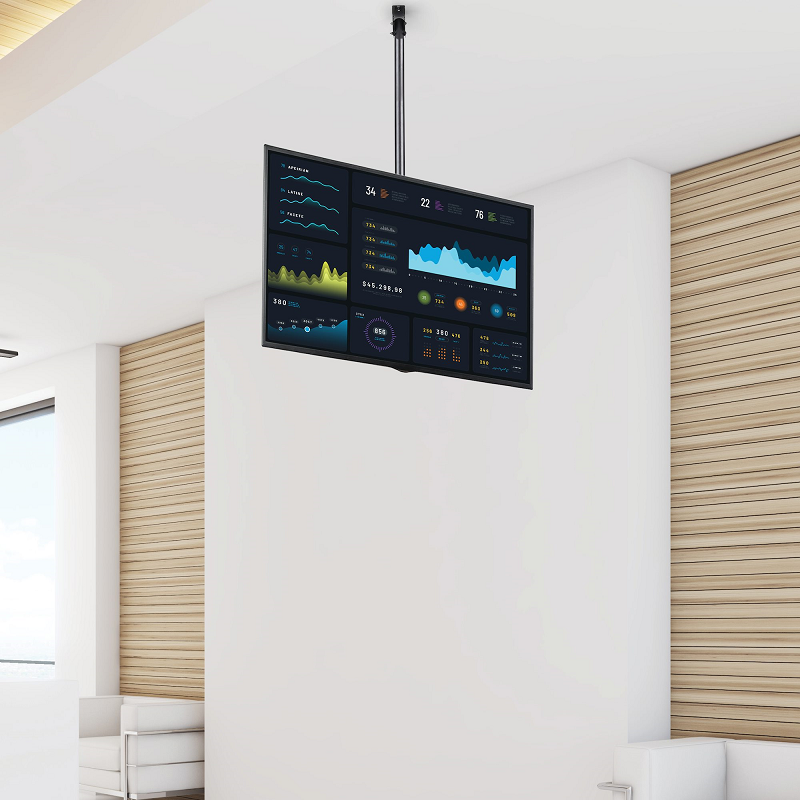

This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

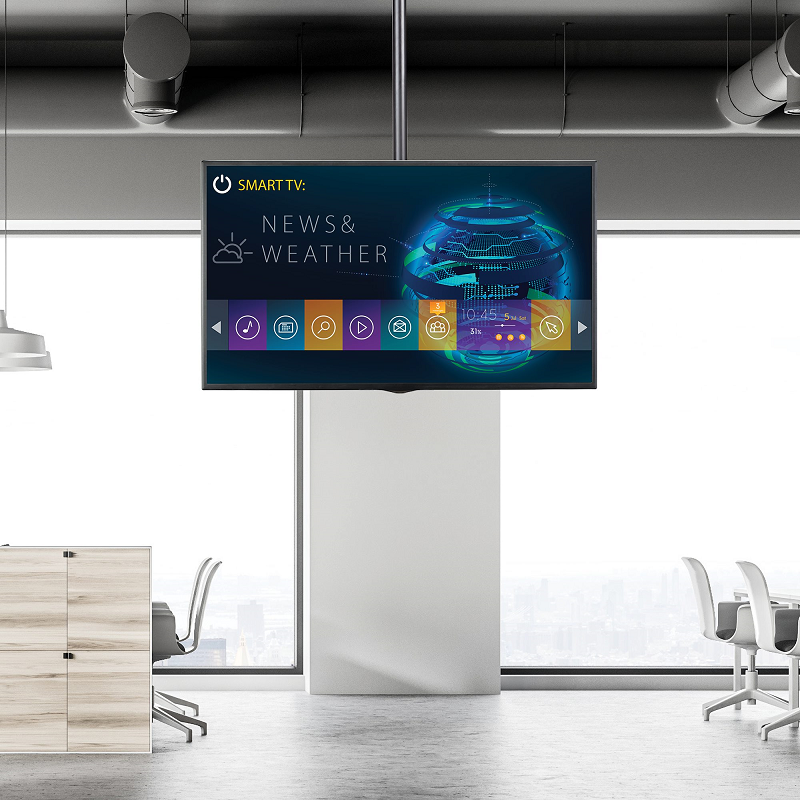

The ceiling mount is ideal for use in lobbies, entrances or other areas with high ceilings.

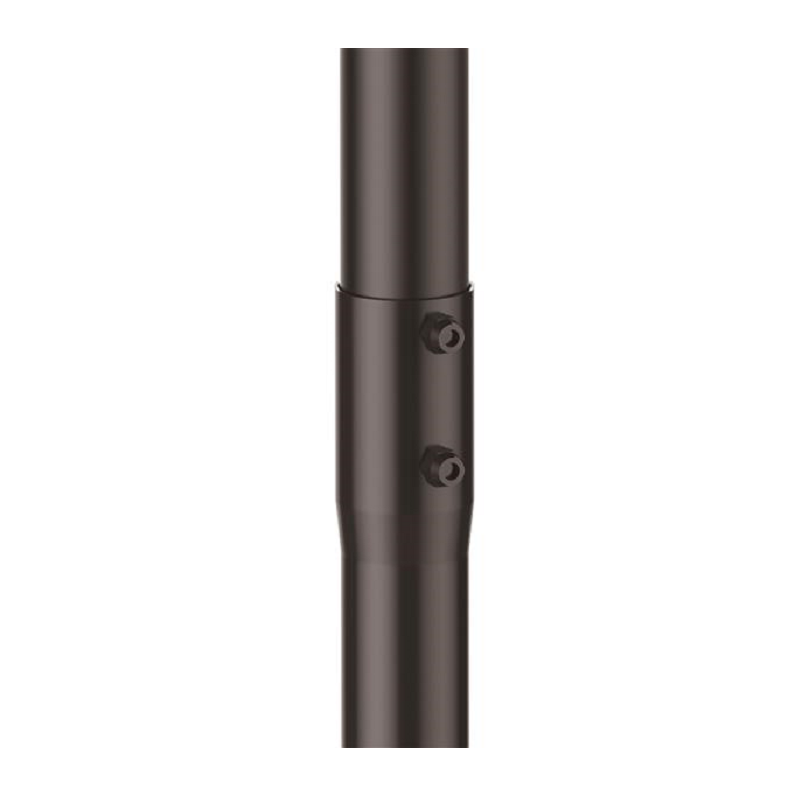

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 8.2 to 9.84 ft. (2.5 to 3 m), with a total lift (height extension) of 19.6" (.5 m).

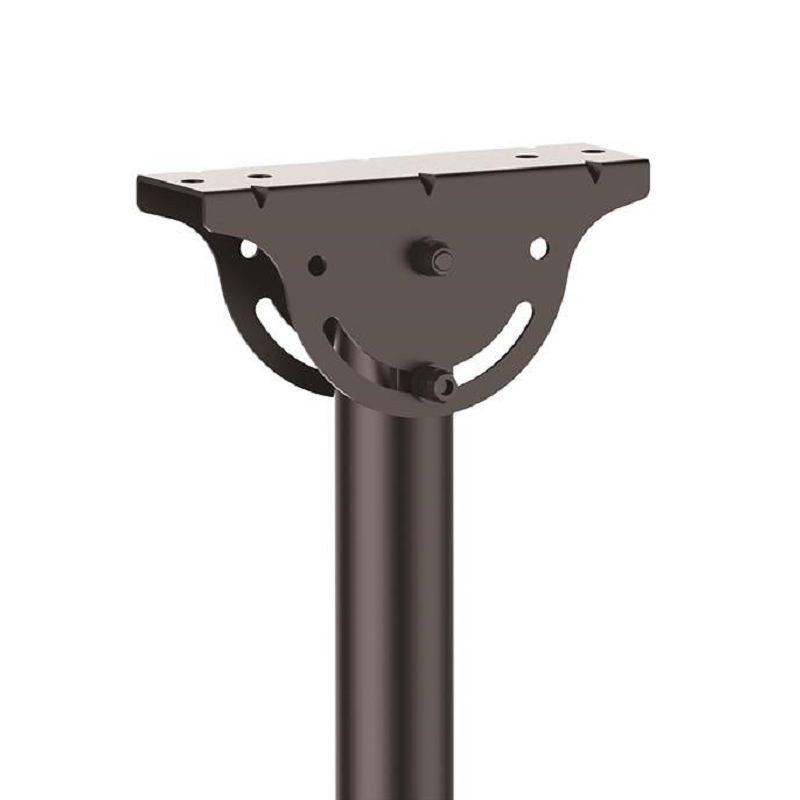

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

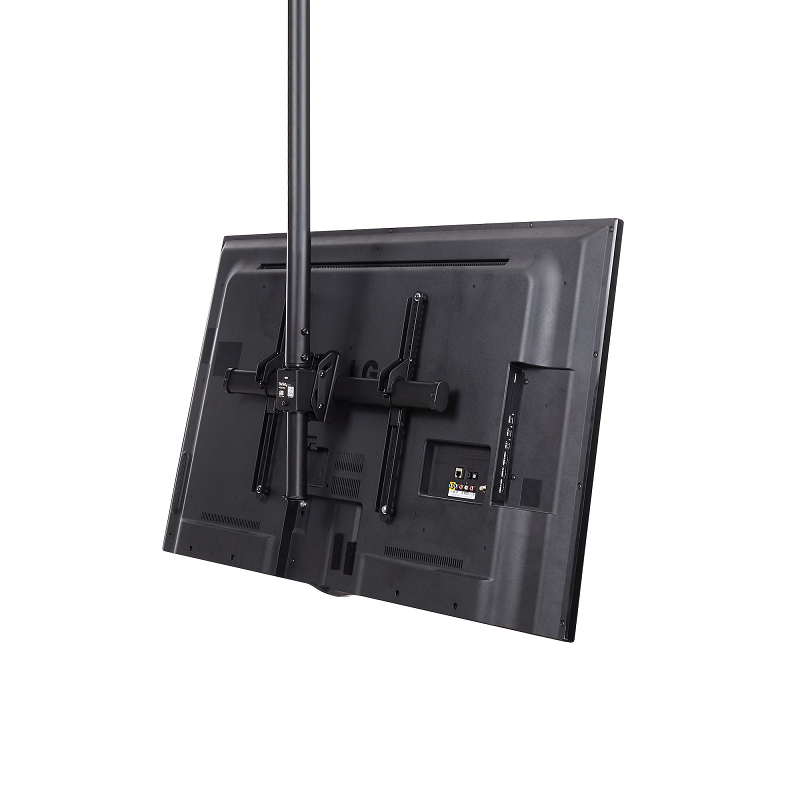

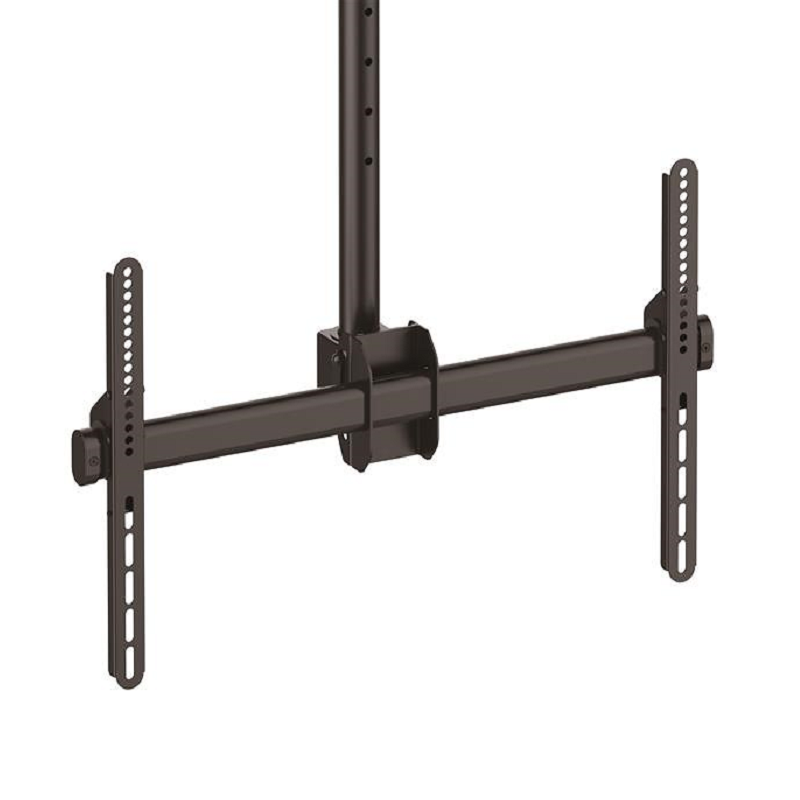

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILPTBLP is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Mounting | |
Minimum screen size | 81.3 cm (32") |
Maximum weight capacity | 50 kg |
Panel mounting interface | 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400 |
Number of displays supported | 2 |
Mounting type | Ceiling |
Minimum VESA mount | 200 x 200 mm |
Maximum VESA mount | 600 x 400 mm |
Maximum screen size | 190.5 cm (75") |
Ergonomics | |
Height adjustment | Yes |
Height adjustment range | 2500 - 3000 mm |
Swivel angle range | -180 - 180 ° |
Tilt angle range | -25 - 0 ° |
Cable management | Yes |
Design | |
Housing material | Steel |
Certification | CE, REACH |
Product colour | Black |
Anti-theft function | No |
Technical details | |
Number of displays supported | 2 |
Mounting type | Ceiling |
Package dimensions (W x D x H) | 320 x 1270 x 115 mm |
Sustainability certificates | RoHS |
Weight & dimensions | |
Width | 435 mm |
Depth | 680 mm |
Height | 3200 mm |
Weight | 10 kg |
Packaging data | |
Package width | 320 mm |
Package depth | 1300 mm |
Package height | 115 mm |
Package weight | 10.8 kg |

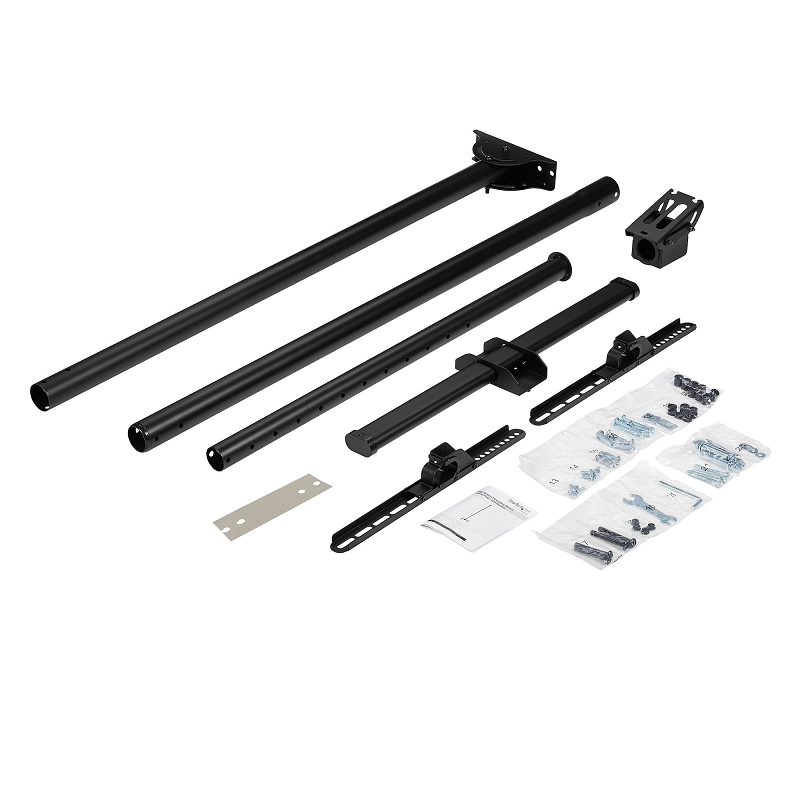

Packaging content | |
Wrench included | Yes |
Washers included | Yes |
Spacer included | Yes |
Screws included | Yes |
Number of washers included | 8 |
Number of spacers included | 16 |
Number of screws | 28 |
Manual | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product drawing can be found in the PDF file
