Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustable Telescopic 3.5' to 5' Pole - Tilt/Swivel/Rotate - VESA Bracket for 32”-75" Displays
Dual Display Mount | Full Motion | For 32" to 75" Displays

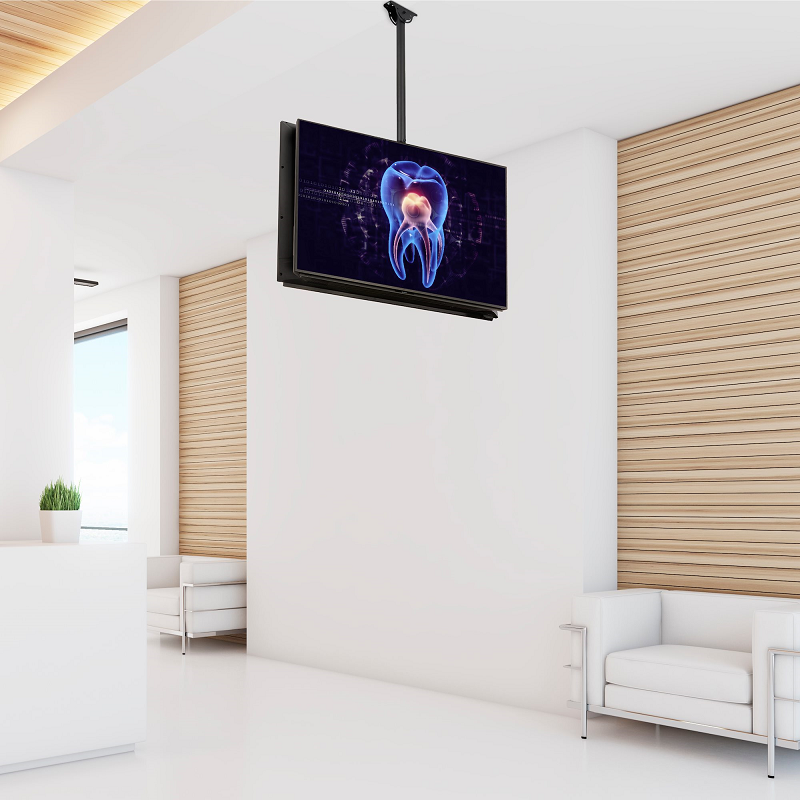

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

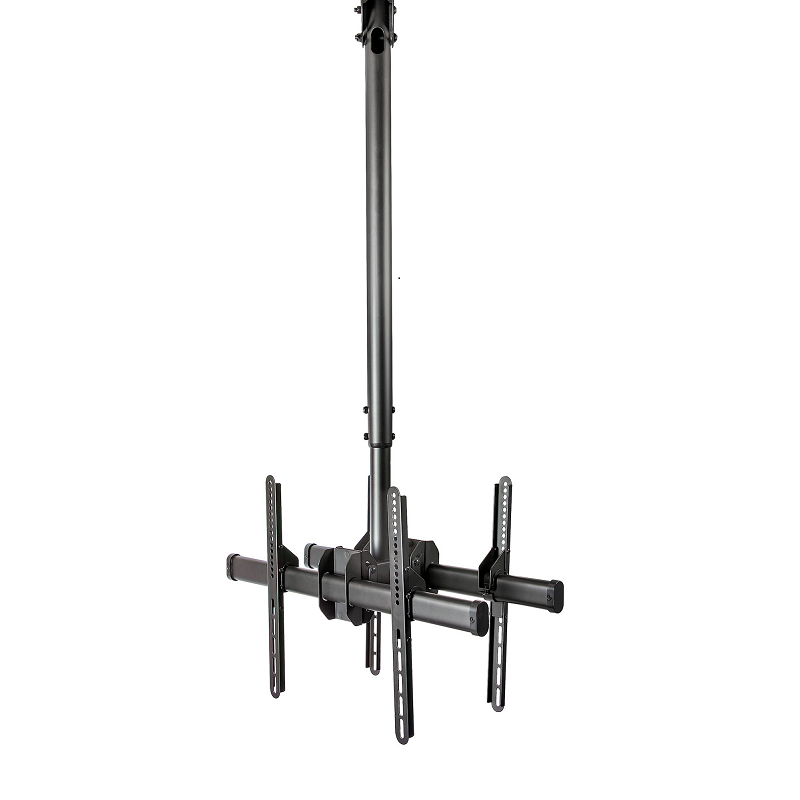

The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.

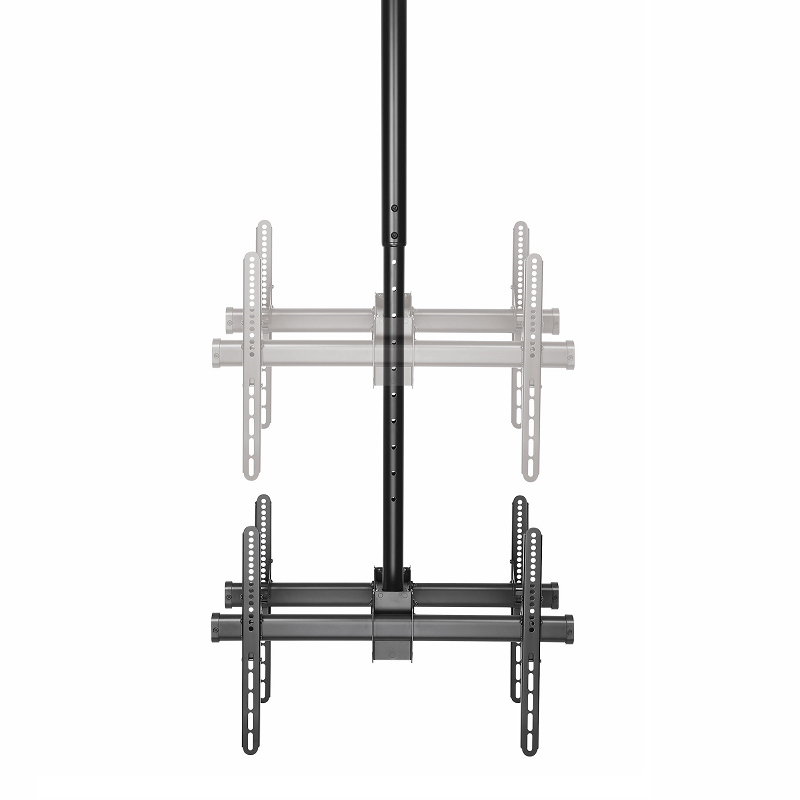

With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).

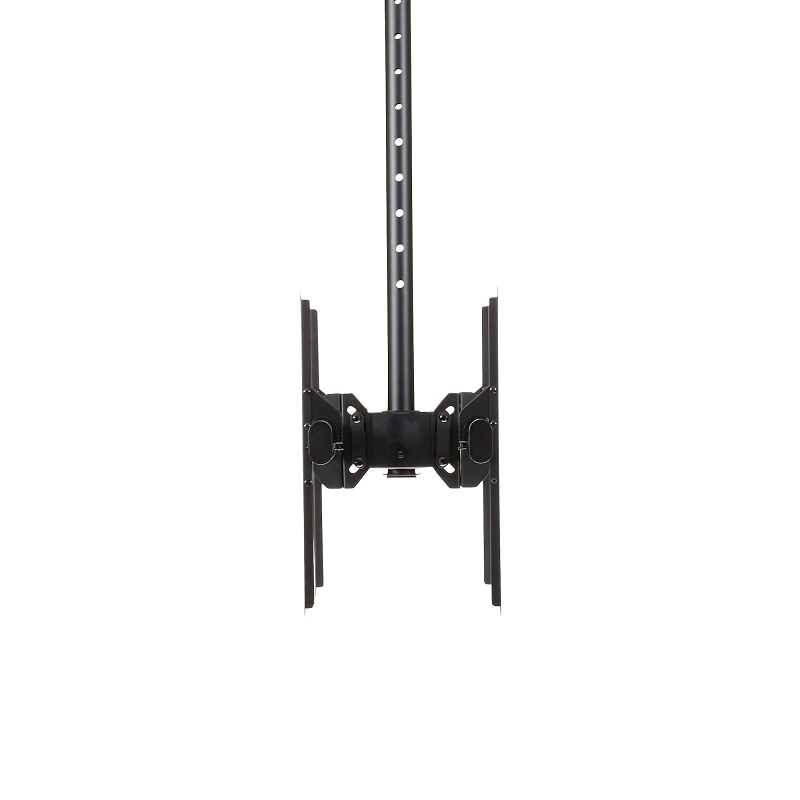

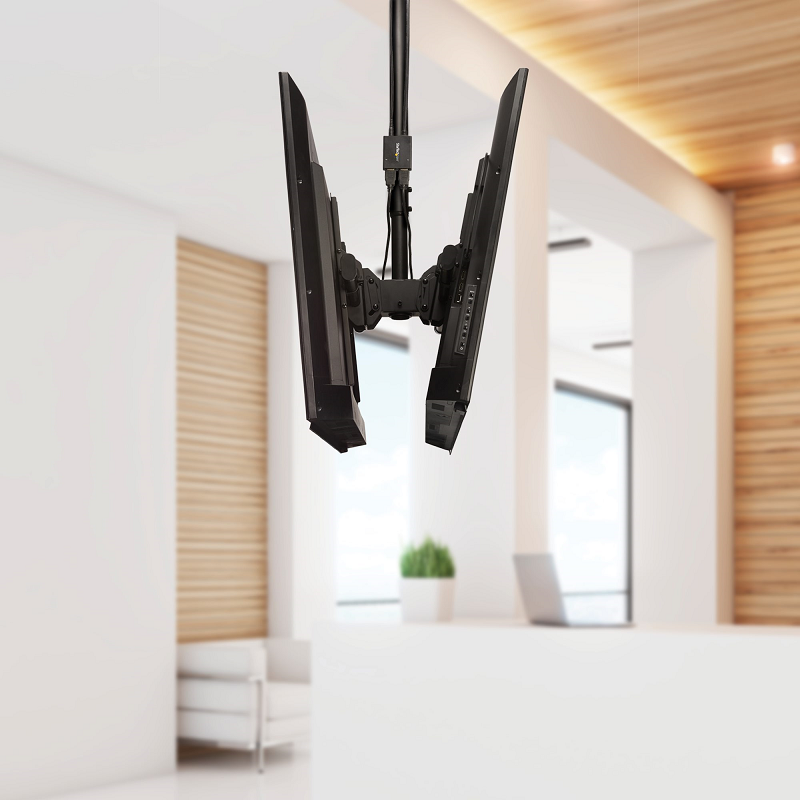

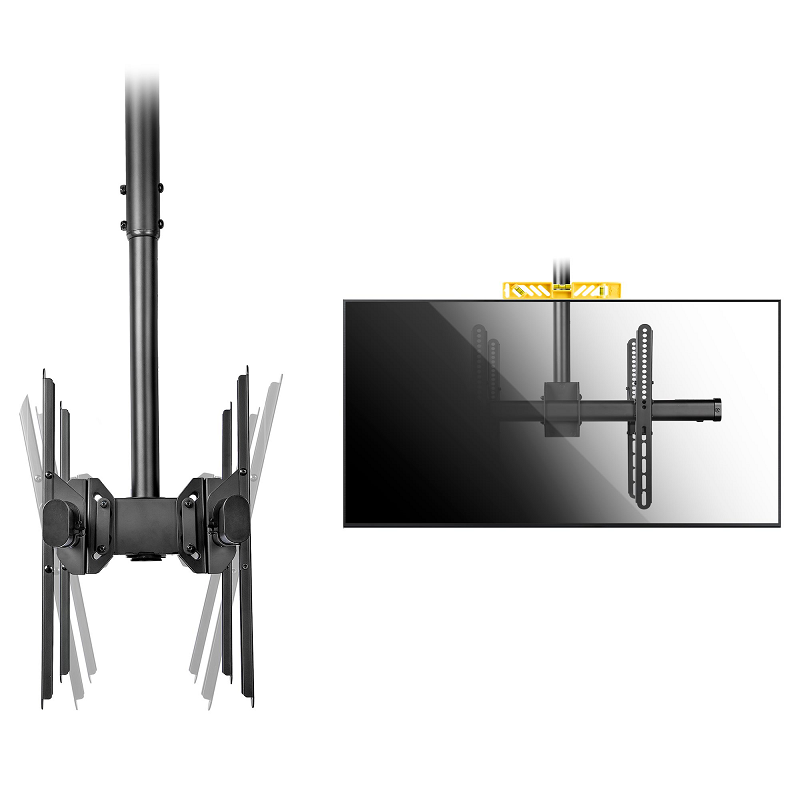

For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

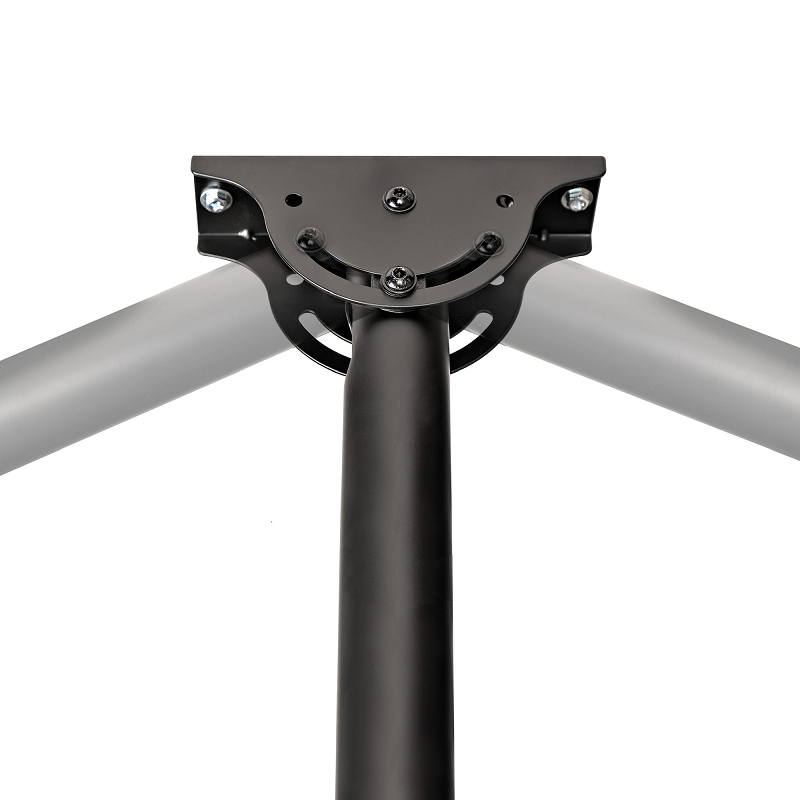

The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.

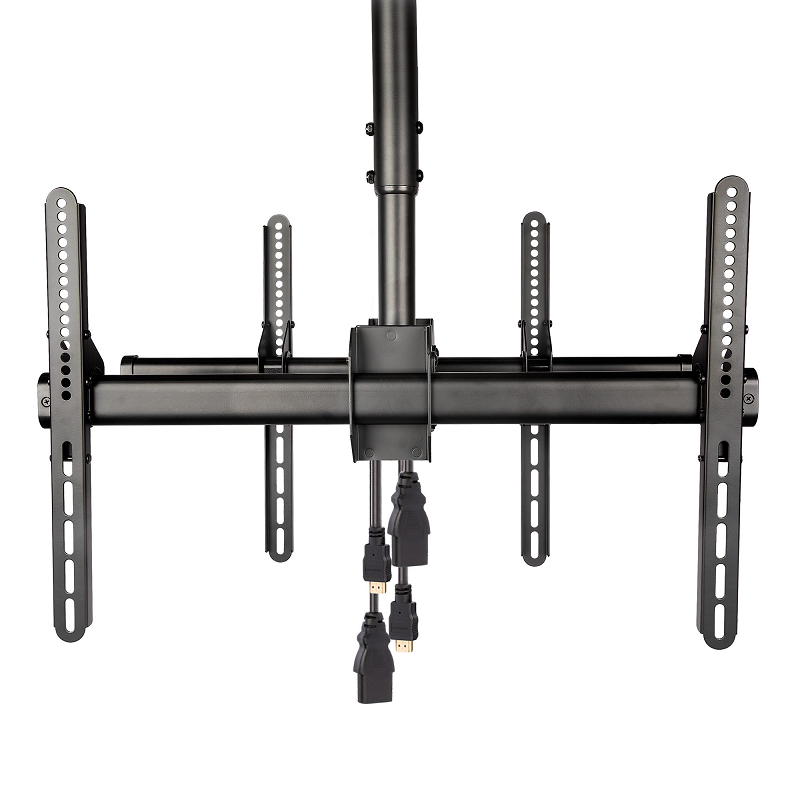

The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Mounting | |
Maximum weight capacity (per display) | 45 kg |
Minimum screen size | 81.3 cm (32") |
Maximumm weight capacity | 90 kg |
Panel mounting interface | 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400 |
Number of displays supported | 2 |
Mounting type | Ceiling |
Minimum VESA mount | 200 x 200 mm |
Maximum VESA mount | 600 x 400 mm |
Maximum screen size | 190.5 cm (75") |
Ergonomics | |
Height adjustment | Yes |
Height adjustment range | 1060 - 1560 mm |
Swivel angle range | -180 - 180 ° |
Tilt angle range | -25 - 5 ° |
Angle of rotation | 360 ° |
Adjustable | Yes |
Design | |
Housing material | Steel |
Certification | CE, REACH |
Product colour | Black |
Anti-theft function | No |
Technical details | |
Angle of rotation | 360 ° |
Number of displays supported | 2 |
Mounting type | Ceiling |
Adjustable | Yes |
Sustainability certificates | RoHS |
Weight & dimensions | |
Width | 165 mm |
Depth | 680 mm |
Height | 835 mm |
Weight | 9.8 kg |
Packaging data | |
Package width | 310 mm |
Package depth | 935 mm |
Package height | 145 mm |
Package weight | 10.8 kg |

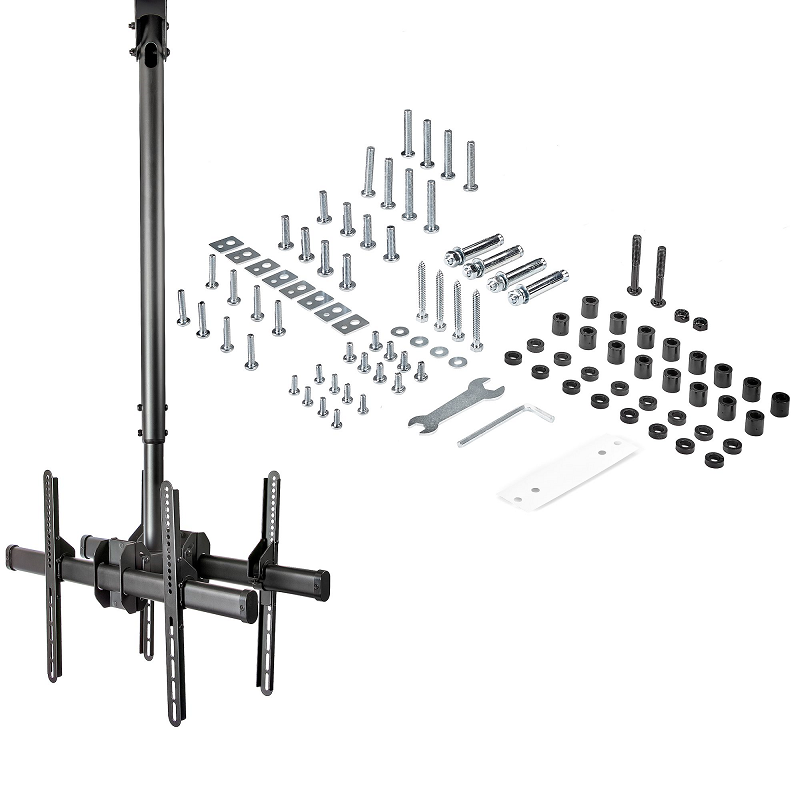

Packaging content | |
Wrench included | Yes |
Washers included | Yes |
Spacer included | Yes |
Screws included | Yes |
Nuts included | Yes |
Number of washers included | 12 |
Number of spacers included | 32 |
Number of screws | 46 |
Number of nuts | 2 |
Manual | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product drawing can be found in the PDF file
