Ceiling TV Mount - 3.5' to 5' Pole
Display Ceiling Mount | Full Motion | For 32" to 75" Displays
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.
The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.

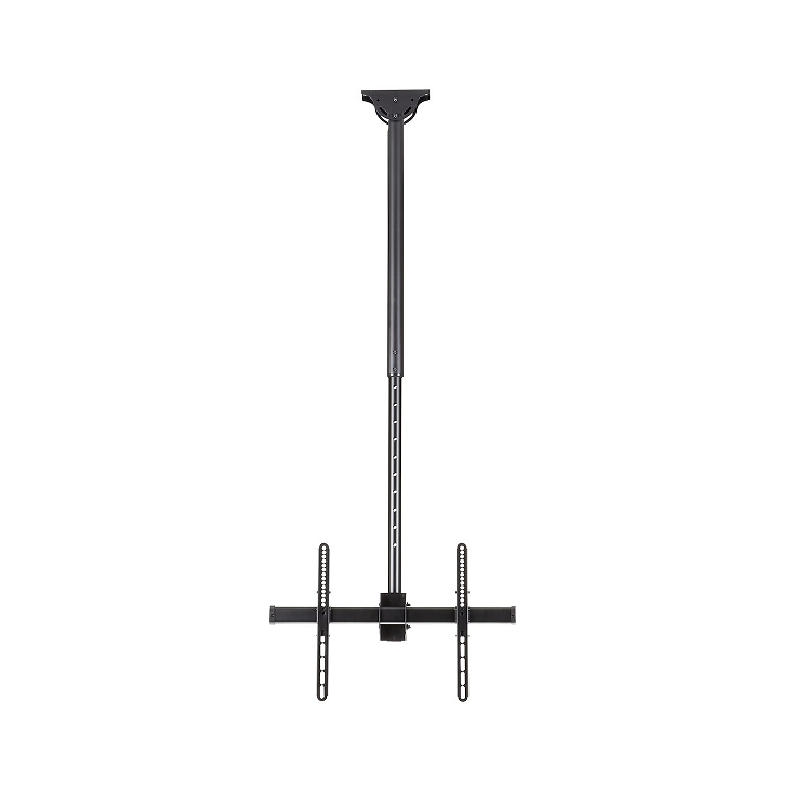

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 42" to 61" (1060 to 1560 mm) , with a total lift (height extension) of 19.7" (500 mm).
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

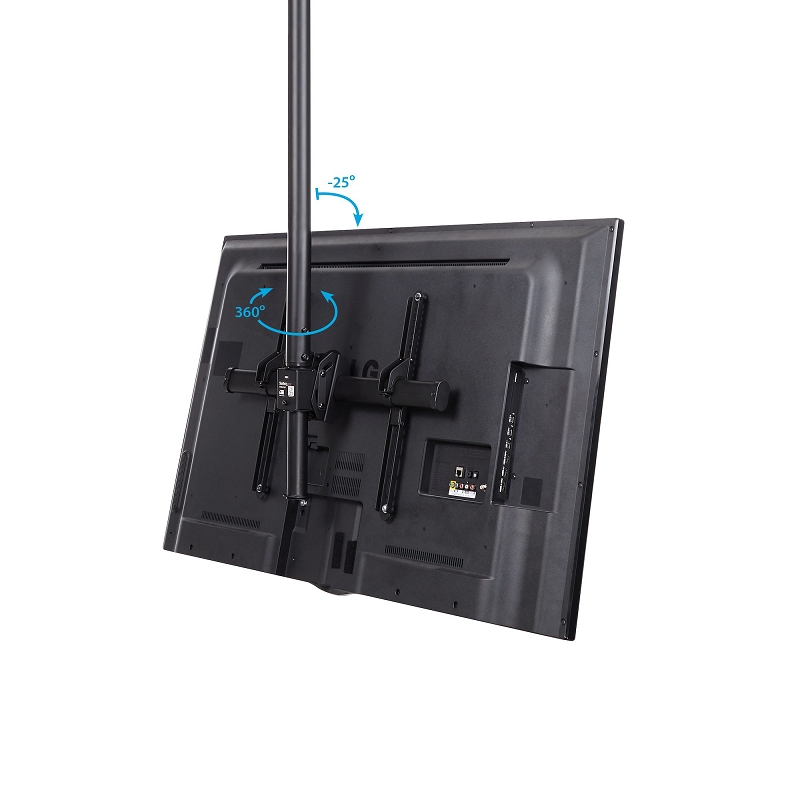

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

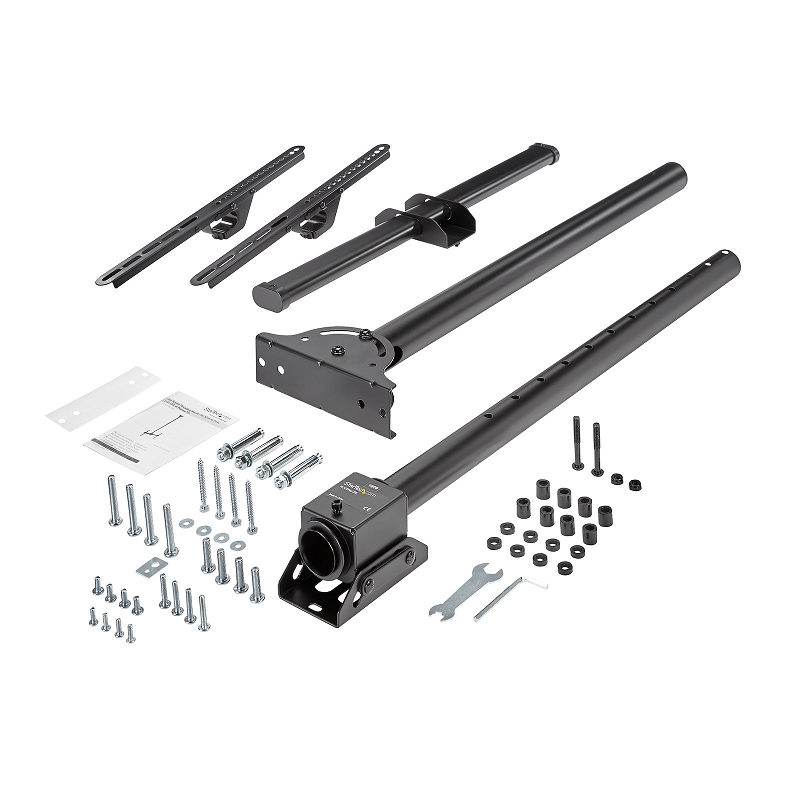

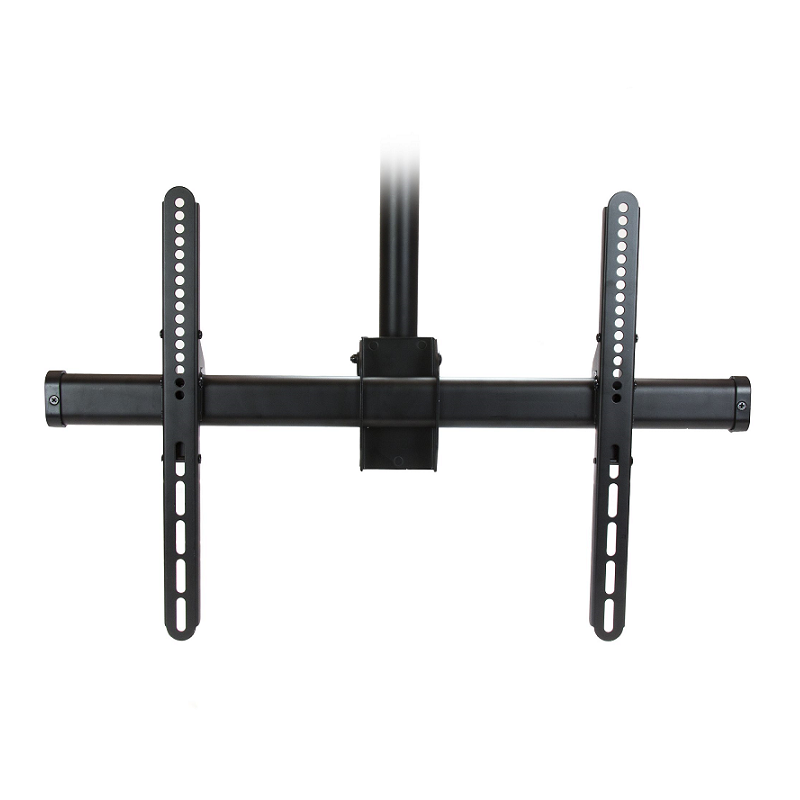

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FLATPNLCEIL is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Mounting | |
Minimum screen size | 81.3 cm (32") |
Maximum weight capacity | 50 kg |
Panel mounting interface | 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400 |
Number of displays supported | 1 |
Mounting type | Ceiling |
Minimum VESA mount | 200 x 200 mm |
Maximum VESA mount | 600 x 400 mm |
Maximum screen size | 190.5 cm (75") |
Ergonomics | |
Height adjustment | Yes |
Height adjustment range | 1100 - 1600 mm |
Swivel angle range | -180 - 180 ° |
Tilt angle range | -25 - 0 ° |
Angle of rotation | 360 ° |
Pivot angle | -180 - 180 ° |
Adjustable | Yes/td> |
Cable management | Yes |
Design | |
Housing material | Steel |
Certification | CE, REACH |
Product colour | Black |
Anti-theft function | No |
Technical details | |
Angle of rotation | 360 ° |
Pivot angle | -180 - 180 ° |
Number of displays supported | 1 |
Mounting type | Ceiling |
Adjustable | Yes |
Sustainability certificates | RoHS |
Weight & dimensions | |
Width | 140 mm |
Depth | 680 mm |
Height | 1800 mm |
Weight | 6 kg |
Packaging data | |
Package width | 312 mm |
Package depth | 942 mm |
Package height | 146 mm |
Package weight | 7.8 kg |
Packaging content | |
Wrench included | Yes |
Washers included | Yes |
Spacer included | Yes |
Screws included | Yes |
Number of washers included | 4 |
Number of spacers included | 16 |
Number of screws | 24 |
Manual | Yes |
Full specification and details can be found in the PDF file
A product drawing can be found in the PDF file
A product drawing can be found in the PDF file
