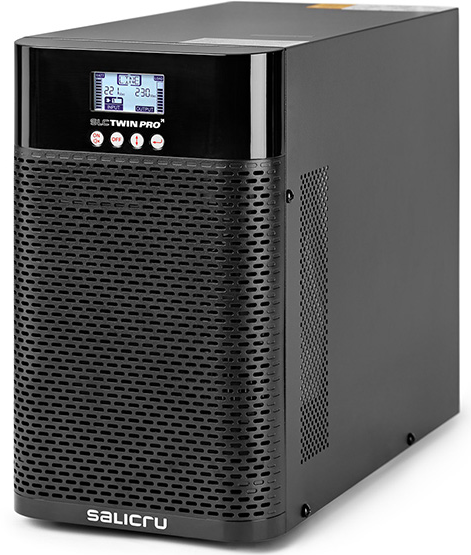

Salicru's SLC 2000 TWIN PRO2 2000VA UPS tower is equipped with on-line double-conversion technology and the latest features to make it an advanced protection system for sensitive and critical loads.
High output power factor (PF=0.9) ensures availability to all types of loads, full control through status information via LCD display and keypad, extensive monitoring and communication options via the built-in USB HID interface, an intelligent slot for SNMP cards or relays and a wide range of software packages. Free monitoring version downloadable for Windows, Linux, Unix or Mac and packages available for multi servers or virtualised systems.
For facilities that require more back-up time, there is a possibility of backup extensions using UPSs with extra charger and additional battery modules. Also notable is the possibility of Eco-mode operation to improve the efficiency of the device, EPO (emergency power off) functions, operation as a frequency converter and built-in battery test.
Features
Applications
Power supply failures in IT systems can cause losses as a result of downtime and the time taken to restore the system to normal operation, and damage to network hardware. Many other disturbances (micro power outages, voltage fluctuations, frequency variations, harmonics, transients, etc.) can also cause IT environments to malfunction.

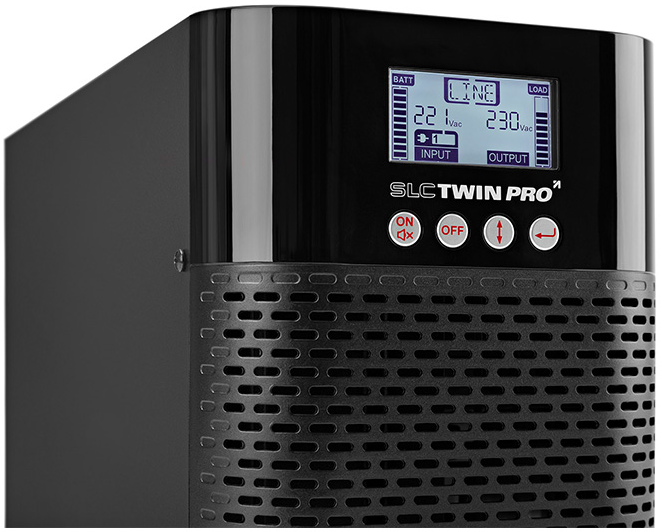

Display
Communications
USB HID UPS: Enables control, parameter configuration and computer shutdown/ hibernation via the USB port. Available with Windows, Linux for Mac. UPS monitoring and management software for closing files/applications in Windows, Linux, Unix and Mac environments. Free and downloadable from Salicru.
Intelligent slot for connecting SNMP or optocoupler cards.
Salicru Warranty
Technical Specification
MODEL | SLC 2000 TWIN PRO2 | ||
UPS Power (VA / W) | 2000 / 1800 | ||
Technology | On-line double-conversion | ||
Format | Tower | ||
Ports | AC outlets | 4 x power IEC 60320 C13 | |
AC outlet type | IEC 60320 C13 | ||
Input | Rated Voltage | 220 / 230 / 240 V | |
Voltage range 100% load | 176 - 300V | ||
Voltage range 40% load | 100 - 300V | ||
Power Factor | ?0.99 | ||
Frequency | 50 / 60 Hz ±10% | ||
Input protection | Resettable breaker | ||
Output | Rated voltage | 220 / 230 / 240 V | |
Voltage accuracy (battery mode) | ±1% | ||
Waveform (battery mode) | Pure sinusoidal | ||
Total harmonic distortion (THDv) | <2% | ||
Synchronous range | ±10% | ||
Battery mode frequency accuracy | ±0.05 Hz | ||
Synchronous speed | 1 Hz/s | ||
Performance | On-line | >89% ÷ 92% | |
Eco-mode | >98% | ||
Admissible overloads |
On-line mode | 105% constant / 130% for 60 s / 150% for 10 s | |
Battery mode | 105% constant / 130% for 10 s / 150% for 1 s | ||
Bypass mode | 130% constant / 180% for 60 s | ||
Battery | Battery type | Pb-Ca sealed, AGM, maintenance-free | |
Protection | Against power surges, undervoltages and alternating current components | ||
Battery test | Manual and/or automatic programmable | ||
Charging | Charge type | I/U (constant current/constant voltage) | |
Recharge time | 4 hours to 90% | ||
Communication | Interface | USB (HID protocol) | |
Slot for SNMP/relays | Yes | ||
Downloadable monitoring software | For Windows, Unix, Linux and Mac | ||
Operating Modes | On-line double-conversion | Yes | |
Eco-mode | Yes | ||
Frequency converter (CVCF) | Yes, Up to 60% of the load | ||
General | Operating temperature | 0ºC - 40ºC | |
Relative humidity | Up to 95%, non-condensing | ||
Noise level at 1 metre | ?49 dB (100% load) / ?41 dB (60% load) | ||
Dimensions (D x W x H mm) | 399 x 190 x 327 | ||
Weight | 18.40Kg | ||
Standards | Safety | EN 62040-1:2008+A1:2013 | |
Electromagnetic compatibility (EMC) | EN 62040-2 | ||
Operation | VFI in accordance with EN 62040-3 | ||
Quality & Environmental Management | ISO-9001 and ISO-14001 |
Salicru's SLC 2000 TWIN PRO2 2000VA UPS tower is equipped with on-line double-conversion technology and the latest features to make it an advanced protection system for sensitive and critical loads.
High output power factor (PF=0.9) ensures availability to all types of loads, full control through status information via LCD display and keypad, extensive monitoring and communication options via the built-in USB HID interface, an intelligent slot for SNMP cards or relays and a wide range of software packages. Free monitoring version downloadable for Windows, Linux, Unix or Mac and packages available for multi servers or virtualised systems.
For facilities that require more back-up time, there is a possibility of backup extensions using UPSs with extra charger and additional battery modules. Also notable is the possibility of Eco-mode operation to improve the efficiency of the device, EPO (emergency power off) functions, operation as a frequency converter and built-in battery test.
Power supply failures in IT systems can cause losses as a result of downtime and the time taken to restore the system to normal operation, and damage to network hardware. Many other disturbances (micropower outages, voltage fluctuations, frequency variations, harmonics, transients, etc.) can also cause IT environments to malfunction.
USB HID UPS: Enables control, parameter configuration and computer shutdown/ hibernation via the USB port. Available with Windows, Linux for Mac. UPS monitoring and management software for closing files/applications in Windows, Linux, Unix and Mac environments. Free and downloadable from Salicru.
