Netgear APM414SD-10000S Expansion module - 10/25 Gigabit SFP28 x 4 + 10/25Gb Ethernet x 2

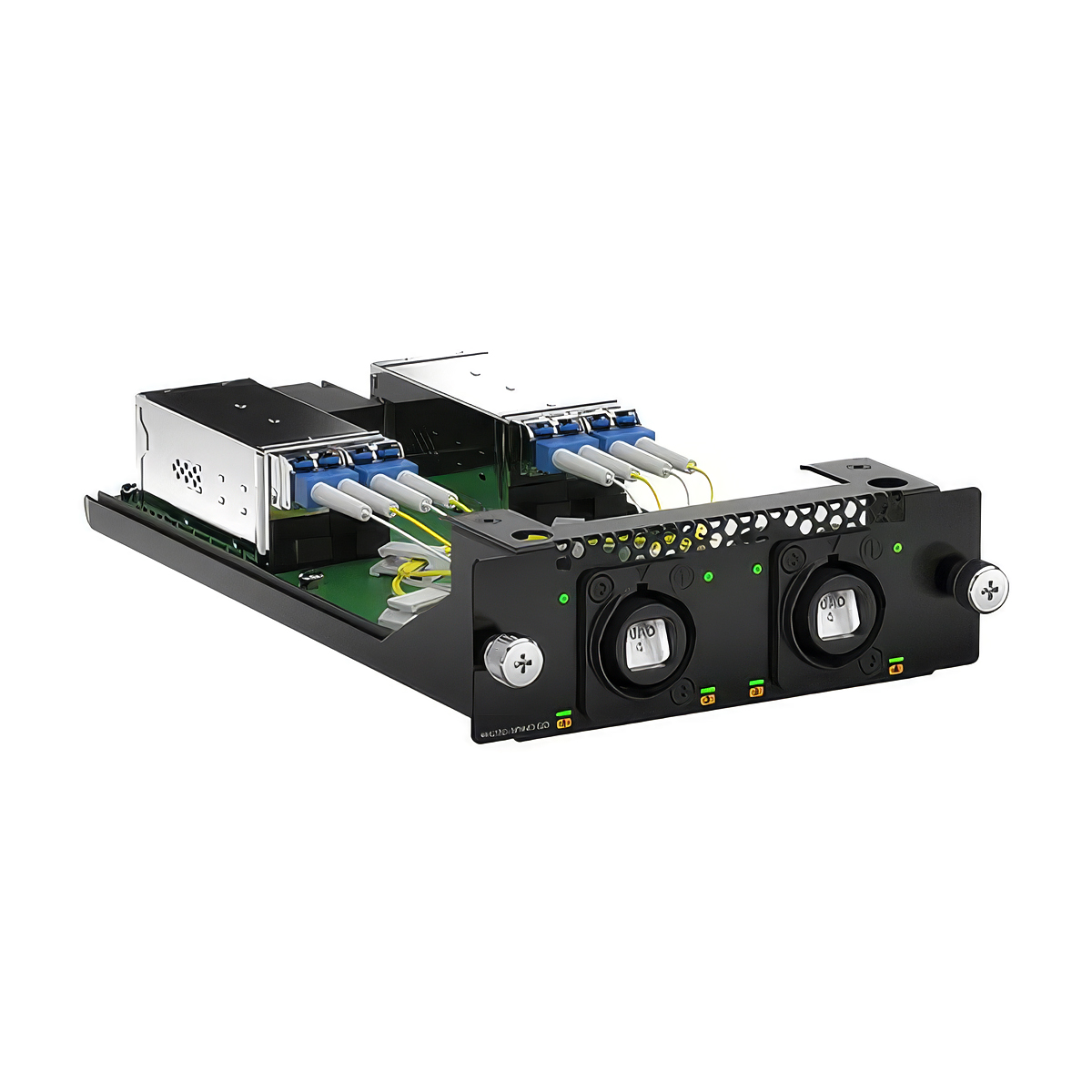

The NETGEAR APM414SD-10000S is a multimode fibre interface card for the NETGEAR M4350-16M4V managed switch. It provides two Neutrik opticalCON QUAD connectors supporting four multimode fibre links, with four internal SFP28 cages compatible with 10G SFP+ or 25G SFP28 multimode transceivers. The card provides a fibre connectivity option for high-speed AV-over-IP and network installations where protected opticalCON QUAD connections are required.

Key Features of NETGEAR APM414SD-10000S

• Two Neutrik opticalCON QUAD fibre connectors
• Four internal SFP28 transceiver cages
• Supports 10G SFP+ multimode transceivers
• Supports 25G SFP28 multimode transceivers
• Supports four multimode fibre links
• Compatible with the NETGEAR M4350-16M4V managed switch
• Optional modular interface card
• Suitable for AV-over-IP and high-speed network connectivity
• 10GbE and 25GbE cannot operate simultaneously on the same card

Multimode Fibre Connectivity

The interface card provides four multimode fibre connections through two Neutrik opticalCON QUAD connectors. It supports compatible 10G SFP+ and 25G SFP28 multimode transceivers installed in the card's internal SFP28 cages.

OpticalCON QUAD Connections

Two Neutrik opticalCON QUAD connectors provide external access to the four multimode fibre links. The connector format is suited to professional AV and network environments where secure and protected fibre connections are required.

10G and 25G Support

The four internal SFP28 cages accept 10G SFP+ or 25G SFP28 multimode transceivers. The card can operate at either 10GbE or 25GbE, but 10G and 25G speeds cannot coexist on the same interface card.

M4350-16M4V Compatibility

The card is an optional modular interface for the NETGEAR M4350-16M4V managed switch. It can be installed in place of other supported interface cards to provide four multimode fibre connections through opticalCON QUAD interfaces.
