Molex Euromod II Module Shielded C6A - White

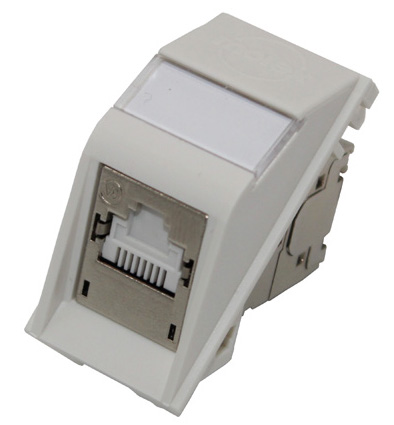

The PowerCat 6A shielded Angled Euromod II Module features the unique DataGate shielded connector. This shielded connector offers superior alien crosstalk suppression, excellent insertion loss, and provides enhanced electromagnetic interference (EMI) protection by utilizing robust die-cast zinc alloy connector body housing.

This shielded connector also features a unique spring loaded shutter that not only protects it from dust and contaminates, but the ingenious spring loaded design also ejects improperly seated patch cords. The shielded connector is dual color coded for either 568A or 568B wiring schedules. The DataGate PowerCat 6A shielded connector is also backwards compatible with shielded C6 and C5e systems.

The shielded Euromod modular system provides a flexible and versatile method of installation, allowing the user the choice of installing as many data outlets as required. The module is compatible with the Euromod range of wall plates and its angled design reduces patch cord bend radius.

Features & Advantages

• 25 x 50mm fascia
• Compatible with UK and European style plates
• Angled design reduces the patch cord bend radius
• Protected labeling feature for clear port labeling
• Accommodates flexible cable routing by allowing 90° or 180° cable entry
• 360° shielded C6A DataGate Jack provides superior alien crosstalk suppression and enhanced electromagnetic interference (EMI) protection
• IDC V-shaped contacts designed to flex, not fatigue when terminated for reliable termination
• Molex DataGate Jacks may accommodate both solid (AWG 22 to AWG 24) and stranded (AWG 26) cables

Technical Information

Connector

• Housing: Zinc Alloy plated Bright Ni/Cu
• Operating Life: Minimum 750 insertion cycles
• Contact Material: Copper Alloy
• Contact Plating: 50µ Gold/ 50µ Nickel minimum
• Contact Force: 100g minimum
• Plug Retention Force: 6.8kg minimum

IDC Connector

• Housing: Thermoplastic, UL94V-0
• Operating Life: Minimum 20 reterminations
• Contact Material: Copper Alloy
• IDC Contact Plating: Matte Tin
• Contact Force: 100g minimum
• Wire Accommodation: 22-24 AWG solid and 26 AWG stranded

Electrical

• Interface Resistance: 20mΩ
• Initial Contact Resistance: 2.5mΩ
• Insulation Resistance: >100MΩ
