Molex Cat6A Shielded DataGate Jack 568A/B Universal Shutter - White
by Molex
See more product details
Part No:
MO-KSJ-00096-02
Manufacturer No:
KSJ-00096-02
Delivery:
In Stock: Next Day
Delivery to UK Mainland on orders placed before 4:30pm Mon-Fri currently estimated 1-2 Working Days due to current service disruption. Additional charges may apply dependant on location, floor standing cabinets and other heavy/bulky items.
Molex Cat6A Shielded DataGate Jack 568A/B Universal Shutter - White
The Category 6A DataGate Shielded Jack is a key component of the PowerCat 6A shielded end-to-end solution.
The PowerCat 6A DataGate jack offers superior alien crosstalk suppression, excellent insertion loss, and provides enhanced electromagnetic interference (EMI) protection by utilizing robust die cast zinc alloy jack body housing. This shielded jack also features a unique spring loaded shutter that not only protects it from dust and contaminates, but the ingenious spring loaded design also ejects improperly seated patch cords.
The shielded jack is dual colour coded for either 568A or 568B wiring schedules. The Molex C6A DataGate RJ45 360° shielded jack accommodates flexible cable routing by allowing 90° or 180° cable entry.
The PowerCat 6A DataGate Shielded Jack was specifically designed for highspeed 10GB data transmission. This unique modular jack is also backwards compatible with Shielded C6 and C5e systems.
Molex recommends that the full range of PowerCat 6A Shielded products be used in an end-to-end system to maximize cabling performance. This system is compliant with the ISO/IEC 11801 Amd 1 and ANSI/TIA-568.2-D requirements for the support of 10GBASE-T transmission.
Features & Advantages
Robust die cast zinc alloy housing
360° Shielded

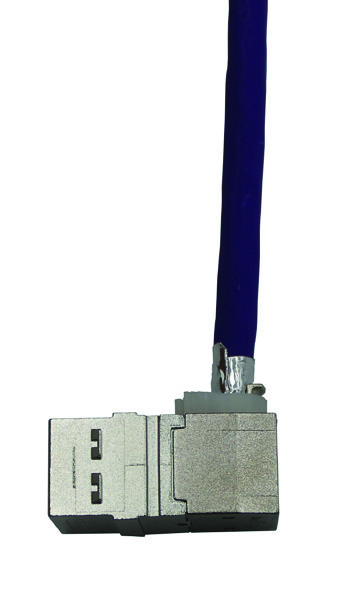

Accommodates flexible cable routing by allowing 90° or 180° cable entry
Dual Color coding allows 568A/B wiring
Patented IDC (insulation displacement contact) V-shaped contacts that flex not fatigue when terminated
Spring-Loaded Shutter
Accepts color coded port identification labels
Category 6A performance when installed as a complete PowerCat Shielded System
Spring loaded cable/drain wire clamp

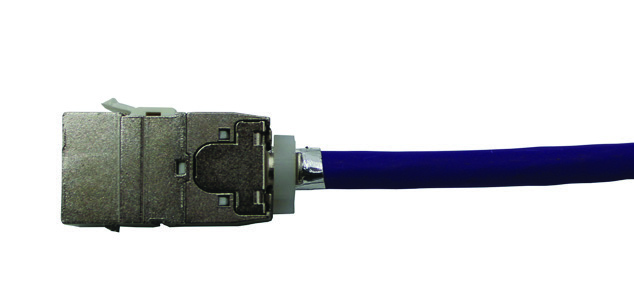

Cable can be terminated in 3 directions - Straight, on left or right side of jack
Complies with ISO/IEC 11801 and TIA Cat 6A channel and PL requirements
Jack can be terminated with 4 Pair Termination Tool or standard IDC Punch Down Tool
RoHS Compliant
Molex DataGate jacks may accommodate both solid (AWG22 to AWG24) and stranded (AWG26) cables
Technical Information
RJ45 Connector
Connector Housing: Zinc Alloy plated bright
Ni/Cu
Operating Life: Minimum 750 insertion cycles
Contact Material: Copper Alloy
Contact Plating: 50µ Gold/ 50µ Nickel minimum
Contact Force: 100g minimum
Plug Retention Force: 6.8kg minimum
IDC Connector
Housing: Thermoplastic, UL94V-0
Operating Life: Minimum 20
reterminations
Contact Material: Copper Alloy
IDC Contact Plating: Matte Tin
Contact Force: 100g minimum
Wire Accommodation: 22-24 AWG solid and 26 AWG stranded
Electrical
Interface Resistance: 20m?
Initial Contact Resistance: 2.5m?
Insulation Resistance: >100M?
The Category 6A DataGate Shielded Jack is a key component of the PowerCat 6A shielded end-to-end solution.
The PowerCat 6A DataGate jack offers superior alien crosstalk suppression, excellent insertion loss, and provides enhanced electromagnetic interference (EMI) protection by utilizing robust die cast zinc alloy jack body housing. This shielded jack also features a unique spring loaded shutter that not only protects it from dust and contaminates, but the ingenious spring loaded design also ejects improperly seated patch cords.
The shielded jack is dual colour coded for either 568A or 568B wiring schedules. The Molex C6A DataGate RJ45 360° shielded jack accommodates flexible cable routing by allowing 90° or 180° cable entry.
The PowerCat 6A DataGate Shielded Jack was specifically designed for highspeed 10GB data transmission. This unique modular jack is also backwards compatible with Shielded C6 and C5e systems.
Molex recommends that the full range of PowerCat 6A Shielded products be used in an end-to-end system to maximize cabling performance. This system is compliant with the ISO/IEC 11801 Amd 1 and ANSI/TIA-568.2-D requirements for the support of 10GBASE-T transmission.
Features & Advantages
Robust die cast zinc alloy housing
360° Shielded
Accommodates flexible cable routing by allowing 90° or 180° cable entry
Dual Color coding allows 568A/B wiring
Patented IDC (insulation displacement contact) V-shaped contacts that flex not fatigue when terminated
Spring-Loaded Shutter
Accepts color coded port identification labels
Category 6A performance when installed as a complete PowerCat Shielded System
Spring loaded cable/drain wire clamp
Cable can be terminated in 3 directions - Straight, on left or right side of jack
Complies with ISO/IEC 11801 and TIA Cat 6A channel and PL requirements
Jack can be terminated with 4 Pair Termination Tool or standard IDC Punch Down Tool
RoHS Compliant
Molex DataGate jacks may accommodate both solid (AWG22 to AWG24) and stranded (AWG26) cables
Technical Information
RJ45 Connector
Connector Housing: Zinc Alloy plated bright
Ni/Cu
Operating Life: Minimum 750 insertion cycles
Contact Material: Copper Alloy
Contact Plating: 50µ Gold/ 50µ Nickel minimum
Contact Force: 100g minimum
Plug Retention Force: 6.8kg minimum
IDC Connector
Housing: Thermoplastic, UL94V-0
Operating Life: Minimum 20
reterminations
Contact Material: Copper Alloy
IDC Contact Plating: Matte Tin
Contact Force: 100g minimum
Wire Accommodation: 22-24 AWG solid and 26 AWG stranded
Electrical
Interface Resistance: 20m?
Initial Contact Resistance: 2.5m?
Insulation Resistance: >100M?
