| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
Length: |
| Part No: | LIN36195 |
| Manufacturer No: | 36195 |
| Delivery: | In Stock: Next Day |
 |

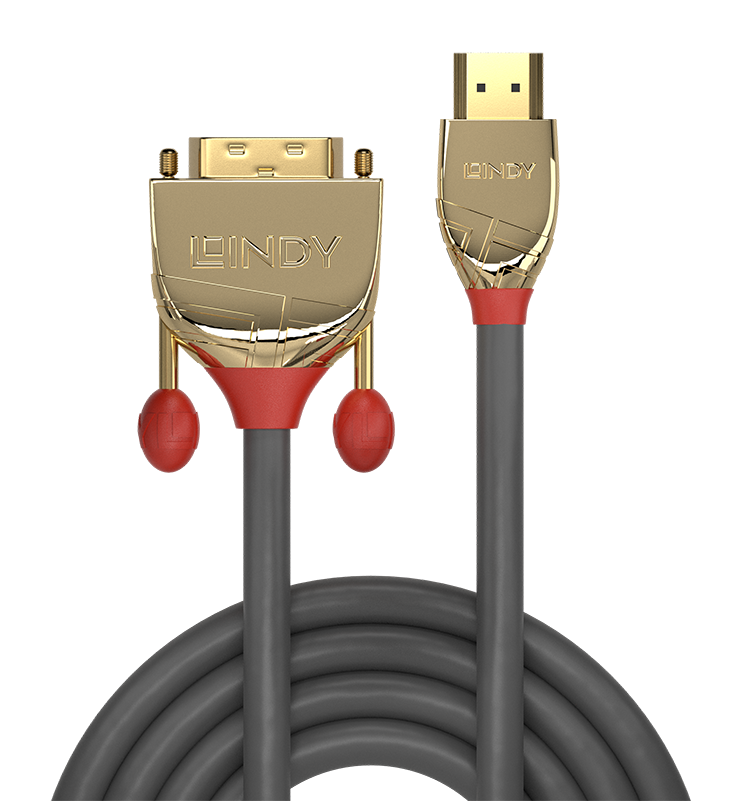

From the Lines cable connectivity concept developed by Lindy, Gold Line HDMI to DVI-D cables are the no compromise, high performance connection solution for use in the most demanding professional environments.
Gold Line HDMI to DVI-D cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contracts and connectors maintain optimal signal integrity and maximum reliability.
Gold Line HDMI to DVI-D cables support DVI resolutions up to 1920x1200@60Hz including HD resolutions up to 1080p.
These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.
Gold Line HDMI to DVI-D cables are available in lengths of 0.5m to 15m.
Features
| Connectors | |
| Connector A | HDMI Type A Male |
| Connector B | DVI-D Male (Single Link) |
| Housing Material | 24K Gold Plated Metal |
| Pin Construction | Phosphor Bronze |
| Pin Plating | 24K Gold 15µm |
| Connector Plating | 3µ Gold |
|
Dimensions WxDxH (approx.) |
HDMI Connector: 20x39x11.2mm (0.78x1.42x0.44in) DVI Connector: 39.5x44.5x16.5mm (1.55x1.73x0.65in) |
| Cable Construction | |
| Lengths Available | 0.5m, 1m, 2m, 3m, 5m, 10m and 15m |
| Colour | Grey |
| Standard | DVI-D Single Link |
| Jacket Diameter | 9mm (0.35in) |
| Jacket Material | PVC |
| Conductor Material | OFC Copper |
| Conductor Gauge | 24AWG |
| Type | Round |
| Shielding | Copper Braid 85% |
| Specifications | |
| Supported Bandwidth | 4.95 Gbps |
| Maximum Resolution | 1920x1200@60Hz |
| Nominal Attenuation | 1-825MHz < 8db |
| Minimum Bend Radius | 126mm (4.96in) |
| Operating Temperature | 20°C - 80°C |
| Storage Temperature | -25°C - 85°C |
