| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | LEG311352 |
| Manufacturer No: | 311352 |
| Delivery: | In Stock: 5-7 Days |
 |

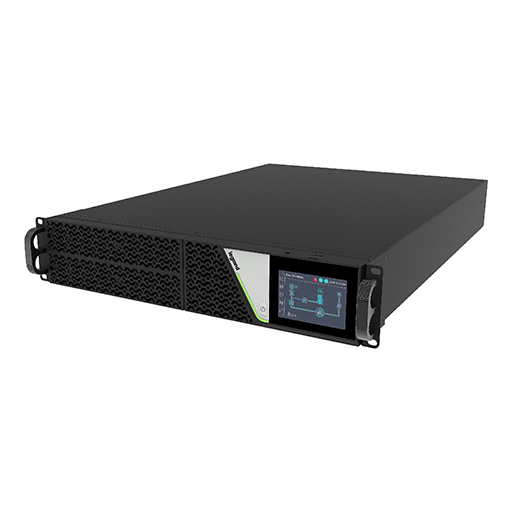

The Legrand Keor DK is a high-performance online uninterruptible power supply designed for environments where electrical stability is critical. Built on double conversion on-line technology with high-frequency PWM, it delivers consistent, clean power while maintaining a compact 2U rack format. This model operates without internal batteries and is intended for use with external battery cabinets, allowing flexible runtime configuration.
The Keor DK uses double conversion on-line technology to continuously regenerate output power, isolating connected equipment from voltage fluctuations, frequency variations, and electrical disturbances. With an output power factor of 1, it ensures full utilization of available power.
Designed for single-phase applications, the UPS supports an input voltage range of 176–280 V and operates across a wide frequency window of 45–65 Hz. Output voltage is regulated between 200–240 V with minimal distortion, delivering stable AC power at 50–60 Hz.
With an overall efficiency of 96% and up to 99% efficiency in eco-mode, the Keor DK minimizes energy losses and reduces operational overhead. Low power consumption during operation supports energy-conscious installations without compromising performance.
This model does not include internal batteries, enabling direct connection to one or more external battery cabinets with valve-regulated, hermetically sealed accumulator batteries. This approach allows scalable autonomy based on application requirements.
Integrated USB, RS-232, and SNMP interfaces enable seamless monitoring and integration into network management systems. Potential-free switch contacts and automatic shutdown functionality support controlled system management during power events.
Housed in a compact 2U chassis, the Keor DK measures 88 mm in height, 440 mm in width, and 700 mm in depth, with a total weight of 18.2 kg. The rack-optimized form factor makes it suitable for space-constrained data and IT environments.
The UPS is designed for reliable operation within a temperature range of 0–40 °C and storage conditions between –10–50 °C. With a sound level of just 45 dB and IP20 protection, it is well-suited for controlled indoor installations.
The Legrand Keor DK is a high-performance online uninterruptible power supply designed for environments where electrical stability is critical. Built on double conversion on-line technology with high-frequency PWM, it delivers consistent, clean power while maintaining a compact 2U rack format. This model operates without internal batteries and is intended for use with external battery cabinets, allowing flexible runtime configuration.
The Keor DK uses double conversion on-line technology to continuously regenerate output power, isolating connected equipment from voltage fluctuations, frequency variations, and electrical disturbances. With an output power factor of 1, it ensures full utilization of available power.
Designed for single-phase applications, the UPS supports an input voltage range of 176–280 V and operates across a wide frequency window of 45–65 Hz. Output voltage is regulated between 200–240 V with minimal distortion, delivering stable AC power at 50–60 Hz.
With an overall efficiency of 96% and up to 99% efficiency in eco-mode, the Keor DK minimizes energy losses and reduces operational overhead. Low power consumption during operation supports energy-conscious installations without compromising performance.
This model does not include internal batteries, enabling direct connection to one or more external battery cabinets with valve-regulated, hermetically sealed accumulator batteries. This approach allows scalable autonomy based on application requirements.
Integrated USB, RS-232, and SNMP interfaces enable seamless monitoring and integration into network management systems. Potential-free switch contacts and automatic shutdown functionality support controlled system management during power events.
Housed in a compact 2U chassis, the Keor DK measures 88 mm in height, 440 mm in width, and 700 mm in depth, with a total weight of 18.2 kg. The rack-optimized form factor makes it suitable for space-constrained data and IT environments.
The UPS is designed for reliable operation within a temperature range of 0–40 °C and storage conditions between –10–50 °C. With a sound level of just 45 dB and IP20 protection, it is well-suited for controlled indoor installations.
