| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | LEG311351 |
| Manufacturer No: | 311351 |
| Delivery: | In Stock: 5-7 Days |
 |

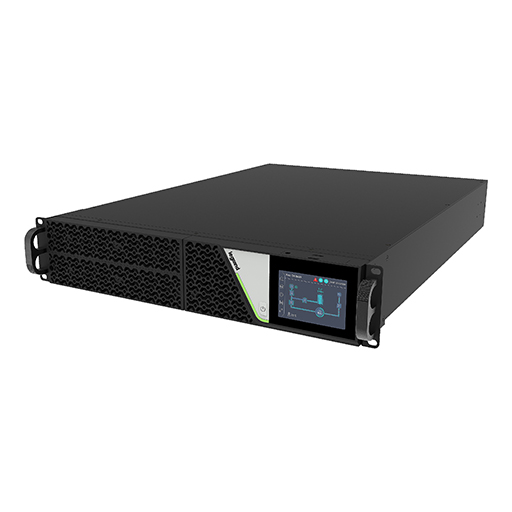

The Legrand Keor DK UPS is a high-performance online uninterruptible power supply designed for critical applications requiring continuous, stable power. Built with high-frequency PWM technology and Double Conversion On-Line architecture, it delivers consistent output with a power factor of 1, ensuring maximum efficiency and reliability in professional IT and industrial environments.
The Keor DK uses Online Double Conversion technology, ensuring complete isolation between input and output power. This design protects connected equipment from voltage fluctuations, frequency variations, and electrical disturbances at all times.
With an effective and apparent output power of 6000 W / 6000 VA and a unity power factor, the UPS maximizes usable power capacity. Output voltage ranges from 200 to 240 V with minimal distortion, maintaining voltage distortion as low as 2% under linear load conditions.
The unit supports a wide input voltage range of 176–280 V and operates across primary frequencies from 45–65 Hz. It delivers a stable output frequency between 50–60 Hz, making it suitable for diverse power environments.
This model does not include internal batteries, allowing flexible scalability through external battery cabinets. It supports valve-regulated, hermetically sealed accumulator batteries to extend runtime as required.
The Keor DK achieves an overall efficiency of 95.1% during online operation and up to 99% in eco-mode. Power consumption remains low at 101 W, contributing to reduced operational costs.
Integrated USB, RS-232, and SNMP interfaces enable advanced monitoring and network management. The UPS is suitable for remote supervision and supports automated shutdown functions for connected systems.
Housed in a compact 2U rack-mounted chassis, the UPS measures 88 mm in height, 440 mm in width, and 700 mm in depth. With a weight of 16.2 kg, it is optimized for data center and rack installations.
The system operates reliably within a temperature range of 0–40 °C and can be stored between -10–50 °C. Sound output is limited to 45 dB, supporting quieter operational environments.
The UPS features a fixed input and output connection with one fixed output terminal. It does not include socket outlets, making it suitable for hardwired professional installations requiring secure and permanent connections.
Rated at IP20, the Keor DK is designed for indoor use. It includes potential-free switch contacts, terminal marking indication, and automatic shutdown functionality to support safe and controlled power management.
The Legrand Keor DK UPS is a high-performance online uninterruptible power supply designed for critical applications requiring continuous, stable power. Built with high-frequency PWM technology and Double Conversion On-Line architecture, it delivers consistent output with a power factor of 1, ensuring maximum efficiency and reliability in professional IT and industrial environments.
The Keor DK uses Online Double Conversion technology, ensuring complete isolation between input and output power. This design protects connected equipment from voltage fluctuations, frequency variations, and electrical disturbances at all times.
With an effective and apparent output power of 6000 W / 6000 VA and a unity power factor, the UPS maximizes usable power capacity. Output voltage ranges from 200 to 240 V with minimal distortion, maintaining voltage distortion as low as 2% under linear load conditions.
The unit supports a wide input voltage range of 176–280 V and operates across primary frequencies from 45–65 Hz. It delivers a stable output frequency between 50–60 Hz, making it suitable for diverse power environments.
This model does not include internal batteries, allowing flexible scalability through external battery cabinets. It supports valve-regulated, hermetically sealed accumulator batteries to extend runtime as required.
The Keor DK achieves an overall efficiency of 95.1% during online operation and up to 99% in eco-mode. Power consumption remains low at 101 W, contributing to reduced operational costs.
Integrated USB, RS-232, and SNMP interfaces enable advanced monitoring and network management. The UPS is suitable for remote supervision and supports automated shutdown functions for connected systems.
Housed in a compact 2U rack-mounted chassis, the UPS measures 88 mm in height, 440 mm in width, and 700 mm in depth. With a weight of 16.2 kg, it is optimized for data center and rack installations.
The system operates reliably within a temperature range of 0–40 °C and can be stored between -10–50 °C. Sound output is limited to 45 dB, supporting quieter operational environments.
The UPS features a fixed input and output connection with one fixed output terminal. It does not include socket outlets, making it suitable for hardwired professional installations requiring secure and permanent connections.
Rated at IP20, the Keor DK is designed for indoor use. It includes potential-free switch contacts, terminal marking indication, and automatic shutdown functionality to support safe and controlled power management.
