LC Multimode Connectors

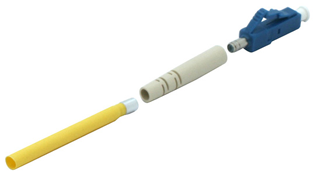

The LC connector features a 1.25mm Zirconia ferrule  in a small form factor (SFF) fibre optic connector housing with a snag free latch which gives an audible click upon engaging for reliable and high density connections.

A range of pigtail, simplex and duplex LC connectors are manufactured including Low Loss and High Performance Grades which are suitable for various applications.

The LC connectors are available for singlemode UPC with white or blue boots, for  APC with green boots and for multimode PC with white, red or black boots suitable for 900µm or 3mm cable diameters or with heatshrink and crimp cable retention method for 2mm cable diameters (white and yellow for duplex and yellow for simplex).

The LC connector is available in simplex and duplex (with clips) in standard colours  including  blue (singlemode) , green (singlemode APC) and beige (multimode).

Features

• Complies with IEC 61754-20 and TIA 604-10-B, FOCIS-10 for intermateability
• Low insertion loss and back reflection capability
• Compact SFF design with snag free latch for easy insertion and consistent connection
• Connector housing and duplex clip available in different colours for easy identification
• Zirconia ceramic ferrule available in several performance grades
• RoHS materials, REACH SvHC compliant
• Individual parts packed in bulk package

Applications

• Datacentre applications
• Telecommunication networks
• LAN, MAN and WAN application
• Data processing networks
• CATV - Cable television
• Fibre-To-The-Home (FTTH)
• Premises distribution

Required:

Epoxy glue
Polishing
