| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | KINKSM64R52BD4-96HM |
| Manufacturer No: | KSM64R52BD4-96HM |
| Delivery: | Out Of Stock |
 |

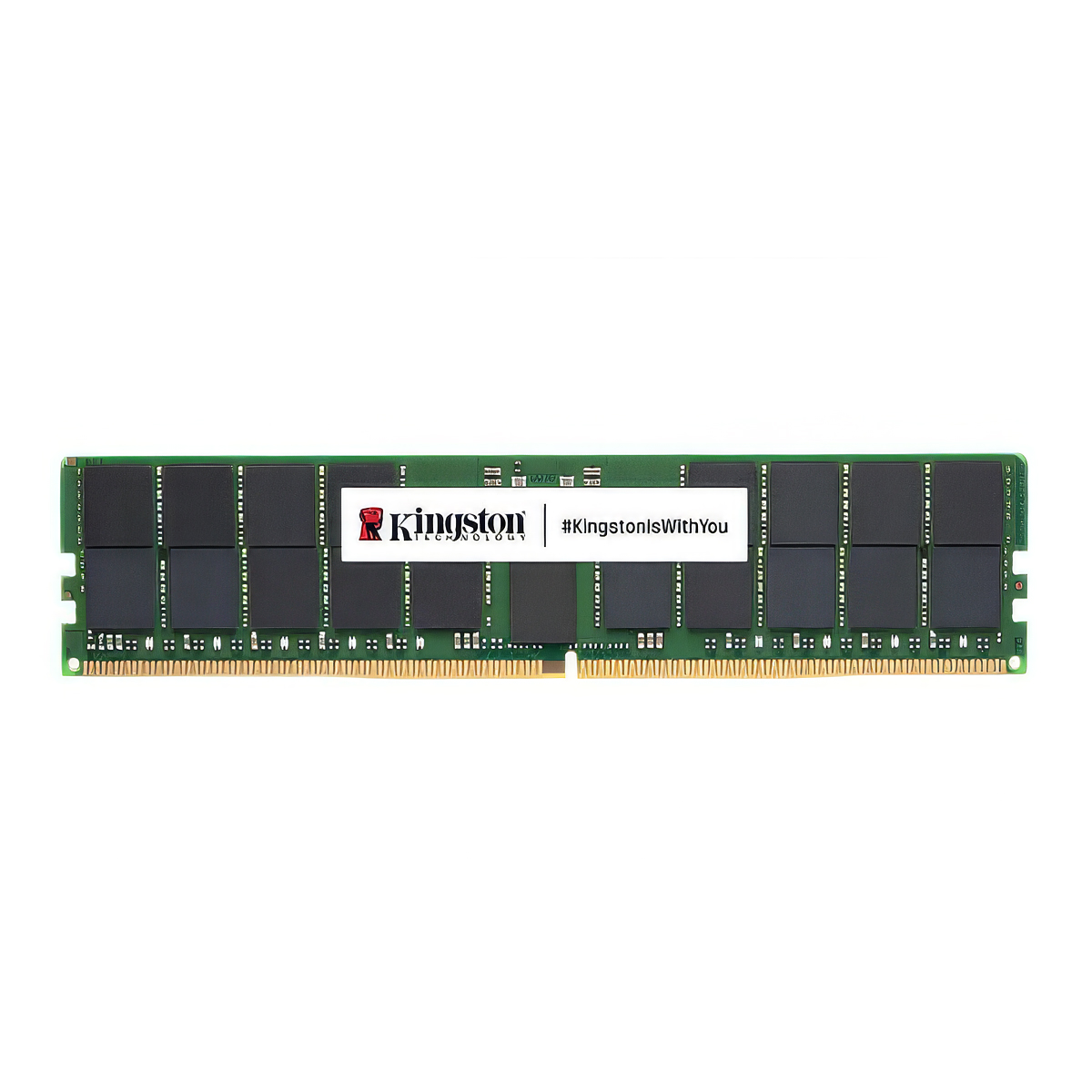

The Kingston KSM64R52BD4-96HM is a 96GB DDR5 ECC Registered DIMM with a 6400MT/s data transfer rate and CL52 latency. The 288-pin module uses a 2Rx4 dual-rank configuration with 24Gbit Hynix M-Die DRAM and operates at 1.1V. It provides x80 ECC and is intended for compatible server platforms requiring high-capacity registered DDR5 memory.
The 96GB capacity provides a high-memory option for compatible server systems using DDR5 ECC Registered DIMMs. The 2Rx4 dual-rank configuration uses 24Gbit DRAM components to provide the module's total capacity.
The module operates at a DDR5-6400 data transfer rate with CL52 latency. Its JEDEC memory profile uses 52-52-52 timings at 1.1V, providing a standard operating profile for compatible DDR5 memory controllers.
The Registered DIMM format provides buffered memory operation for compatible server platforms. On-die ECC provides error checking within the DDR5 memory components, while the x80 ECC configuration includes two independent I/O subchannels.
The module uses a 2Rx4 dual-rank configuration with 24Gbit DRAM density. The 288-pin DIMM features gold contact fingers and a PCB height of 31.25mm for installation in compatible DDR5 memory slots.
The memory module uses Hynix M-Die DRAM with a 24Gbit density. The M-Die configuration provides the DRAM component arrangement used for this 96GB registered ECC DIMM.
The module supports 32 internal banks, hard and soft post-package repair, and sideband access through I3C/I2C. It operates from 0°C to +95°C and has a storage temperature range of -55°C to +100°C, with RoHS-compliant and halogen-free construction.
*Images used for illustrative purposes only; product may differ in appearance
The Kingston KSM64R52BD4-96HM is a 96GB DDR5 ECC Registered DIMM with a 6400MT/s data transfer rate and CL52 latency. The 288-pin module uses a 2Rx4 dual-rank configuration with 24Gbit Hynix M-Die DRAM and operates at 1.1V. It provides x80 ECC and is intended for compatible server platforms requiring high-capacity registered DDR5 memory.
The 96GB capacity provides a high-memory option for compatible server systems using DDR5 ECC Registered DIMMs. The 2Rx4 dual-rank configuration uses 24Gbit DRAM components to provide the module's total capacity.
The module operates at a DDR5-6400 data transfer rate with CL52 latency. Its JEDEC memory profile uses 52-52-52 timings at 1.1V, providing a standard operating profile for compatible DDR5 memory controllers.
The Registered DIMM format provides buffered memory operation for compatible server platforms. On-die ECC provides error checking within the DDR5 memory components, while the x80 ECC configuration includes two independent I/O subchannels.
The module uses a 2Rx4 dual-rank configuration with 24Gbit DRAM density. The 288-pin DIMM features gold contact fingers and a PCB height of 31.25mm for installation in compatible DDR5 memory slots.
The memory module uses Hynix M-Die DRAM with a 24Gbit density. The M-Die configuration provides the DRAM component arrangement used for this 96GB registered ECC DIMM.
The module supports 32 internal banks, hard and soft post-package repair, and sideband access through I3C/I2C. It operates from 0°C to +95°C and has a storage temperature range of -55°C to +100°C, with RoHS-compliant and halogen-free construction.
*Images used for illustrative purposes only; product may differ in appearance
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
