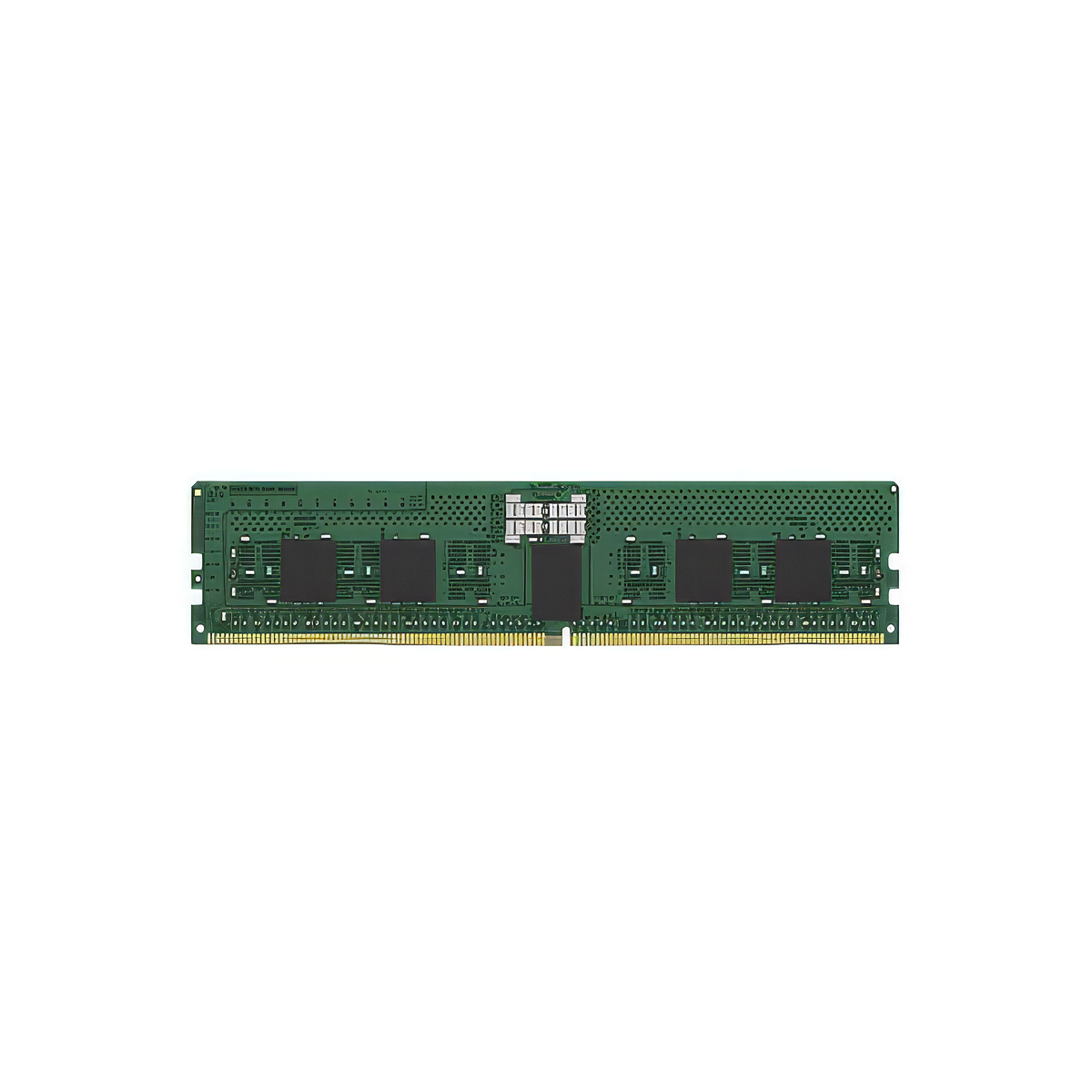

Kingston KSM56R46BS8-16MH 16GB 5600MT/s DDR5 ECC Reg CL46 DIMM 1Rx8 Micron H

The Kingston KSM56R46BS8-16MH is a 16GB DDR5 ECC Registered DIMM with a 5600MT/s data transfer rate and CL46 latency. The 288-pin module uses a single-rank 1Rx8 configuration with 16Gbit Micron H-DIE DRAM, x80 ECC and 46-45-45 timings at 1.1V. On-die ECC, registered memory operation and two independent I/O subchannels provide error-checking capabilities for compatible server platforms.

Key Features of Kingston KSM56R46BS8-16MH

• PC5-5600 memory standard
• CL46 latency
• ECC Registered DIMM
• 1Rx8 single-rank configuration
• 288-pin DIMM form factor
• 46-45-45 timings at 1.1V
• 16Gbit DRAM density
• Micron H-DIE DRAM

16GB DDR5 Memory Capacity

The 16GB capacity provides a memory option for compatible server platforms supporting DDR5 ECC Registered DIMMs. The single-rank 1Rx8 configuration uses 16Gbit DRAM components and provides an x80 data path with ECC functionality.

5600MT/s DDR5 Performance

The module operates at a DDR5-5600 data transfer rate with CL46 latency. Its SPD is programmed to the JEDEC standard DDR5-5600 timing of 46-45-45 at 1.1V, providing a standard memory profile for compatible systems.

ECC Registered Memory

The Registered DIMM format provides buffered memory operation for compatible server platforms, while on-die ECC provides error checking within the DDR5 memory components. The x80 ECC configuration uses two independent I/O subchannels for the memory data path.

1Rx8 Memory Organisation

The module uses a single-rank 1Rx8 configuration with ten 2G x 8-bit FBGA components. The 288-pin DIMM uses gold contact fingers and provides a standard physical format for compatible DDR5 server memory slots.

Micron H-DIE DRAM

The module uses Micron H-DIE DRAM with a 16Gbit density. This memory configuration provides the component arrangement and capacity required for the 16GB registered ECC DIMM.
