HPE P79814-425 ProLiant DL145 Gen11 8024P PS EMEA Rack Server

The HPE ProLiant Gen11 Server Rack is a compact yet powerful server tailored for small offices and branch locations. It offers enterprise-class performance, security, and expandability in a space-saving design, making it an ideal choice for businesses seeking reliable on-premises or hybrid cloud solutions.

Key Features

• Supports Intel® Xeon® E-2400 and Pentium® Gold processors for enhanced compute performance.
• Up to 128 GB DDR5 memory capacity with four 4400 MT/s UDIMMs.
• Two PCIe 5.0 expansion slots for increased flexibility.
• Optional M.2 slot for fast OS boot (available with dedicated HPE iLO/M.2/serial port kit).
• Standard support for HPE iLO6, enabling remote server management without additional modules or activation keys.

What's New

• Introduction of modern Intel Xeon E-2400 and Pentium Gold processors.
• Enhanced memory support with four 4400 MT/s DDR5 UDIMMs.
• Inclusion of two PCIe 5.0 expansion slots for improved scalability.
• Optional M.2 slot for rapid OS boot capabilities.
• Standard integration of HPE iLO6 for streamlined remote management.

Flexible Deployment Options

The MicroServer Gen11's mini tower design allows for versatile placement—flat, vertical, or wall-mounted—adapting seamlessly to various office environments.

Enterprise-Class Security

Equipped with HPE iLO silicon root of trust, the server ensures robust security, safeguarding your business data against potential threats.

Scalable Storage Solutions

With support for four large form factor (LFF) non-hot-plug drives, the MicroServer Gen11 offers ample storage capacity to accommodate growing business needs.

Energy-Efficient Performance

The server's 180W external power supply and efficient design contribute to reduced energy consumption, aligning with sustainability goals.

Comprehensive Warranty and Support

Backed by HPE's comprehensive warranty, the ProLiant MicroServer Gen11 ensures peace of mind with reliable support and service options.

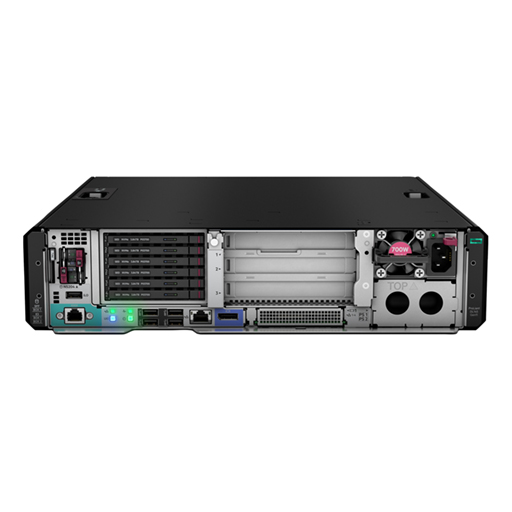

I/O Diagram (Front)

Key	Component
1	Quick Removal Access Panel
2	Slot 1: PCIe 5.0 x16 Full Height Full Length (Optional) Slot 2: PCIe 5.0 x16 Full Height Full Length (Optional) Slot 3: PCIe 5.0 x16 Full Height Half Length Base Riser
3	Flex-Slot Power Supply 1 Flex-Slot Power Supply 2 (Optional)
4	Slot 21 OCP 3.0 PCIe 5.0 x16
5	Display Port
6	iLO Management Port
7	USB 3.2 Gen1 Ports
8	Health LED
9	Power On/Standby Button and System Power LED
10	Unit ID Button/LED
11	NIC Status LED
12	Optional: Serial Port
13	Drive Support Label
14	iLO Service Port
15	Serial Number/iLO Information Pull Tab
16	Optional: NS204i-u Boot Device
17	Drive Bays Option 1: Up to 2SFF HDD/SSD SAS/SATA/NVMe Option 2: Up to 6EDSFF E3.S EC1 NVMe (shown)

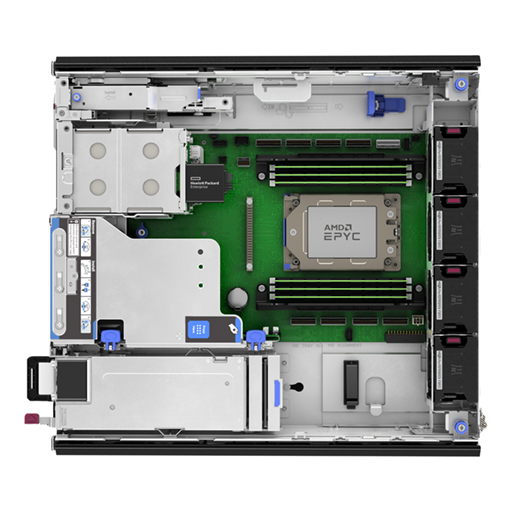

I/O Diagram (Side)

Key	Component
1	Chassis Intrusion Detection Switch
2	4 Hot Pluggable 2U Standard Fans. Optional: 2U Performance Fans.
3	Processor is shown with 2U Heat Sink (Default) Optional 1U Heat
4	6 DDR5 DIMM Slots

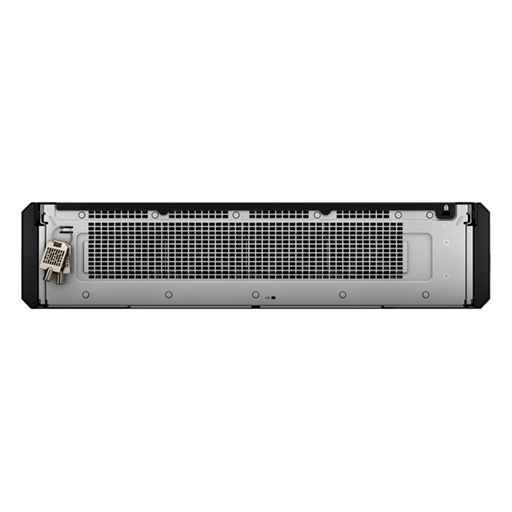

I/O Diagram (Back)

Key	Component
1	Access Panel Keys
2	Kensington Lock
