HPE P79815-425 ProLiant DL145 Gen11 8124P PS EMEA Rack Server

The HPE ProLiant ML30 Gen11 is a robust yet cost-effective tower server designed for small to medium-sized businesses. It delivers enterprise-grade performance, security, and expandability, making it ideal for on-premises and hybrid cloud environments.

Key Features

• Supports Intel® Xeon® E-2400 series processors for enhanced performance.
• Up to 128 GB DDR5 memory capacity with four 4400 MT/s UDIMMs.
• Flexible storage options: up to 4 LFF or 8 SFF hot-plug HDDs/SSDs.
• Two PCIe Gen5 slots for increased expansion capabilities.
• Embedded HPE iLO 6 for comprehensive remote management.

What's New

• Integration of Intel Xeon E-2400 series processors.
• Enhanced memory support with DDR5 technology.
• Introduction of PCIe Gen5 slots for improved scalability.
• Standard inclusion of HPE iLO 6 for streamlined remote management.

Versatile Deployment Options

The ML30 Gen11's tower form factor allows for flexible deployment in various office environments, accommodating space constraints and infrastructure setups.

Enhanced Security Features

Equipped with HPE iLO silicon root of trust and Trusted Platform Module (TPM) 2.0, the server ensures robust security, protecting your business data against potential threats.

Scalable Storage Solutions

With support for up to 4 large form factor (LFF) or 8 small form factor (SFF) hot-plug drives, the ML30 Gen11 offers ample storage capacity to accommodate growing business needs.

Energy-Efficient Performance

The server's efficient design contributes to reduced energy consumption, aligning with sustainability goals and lowering operational costs.

Comprehensive Warranty and Support

Backed by HPE's comprehensive warranty, the ProLiant ML30 Gen11 ensures peace of mind with reliable support and service options.

I/O Diagram (Front)

Key	Component
1	Quick Removal Access Panel
2	Slot 1: PCIe 5.0 x16 Full Height Full Length (Optional) Slot 2: PCIe 5.0 x16 Full Height Full Length (Optional) Slot 3: PCIe 5.0 x16 Full Height Half Length Base Riser
3	Flex-Slot Power Supply 1 Flex-Slot Power Supply 2 (Optional)
4	Slot 21 OCP 3.0 PCIe 5.0 x16
5	Display Port
6	iLO Management Port
7	USB 3.2 Gen1 Ports
8	Health LED
9	Power On/Standby Button and System Power LED
10	Unit ID Button/LED
11	NIC Status LED
12	Optional: Serial Port
13	Drive Support Label
14	iLO Service Port
15	Serial Number/iLO Information Pull Tab
16	Optional: NS204i-u Boot Device
17	Drive Bays Option 1: Up to 2SFF HDD/SSD SAS/SATA/NVMe Option 2: Up to 6EDSFF E3.S EC1 NVMe (shown)

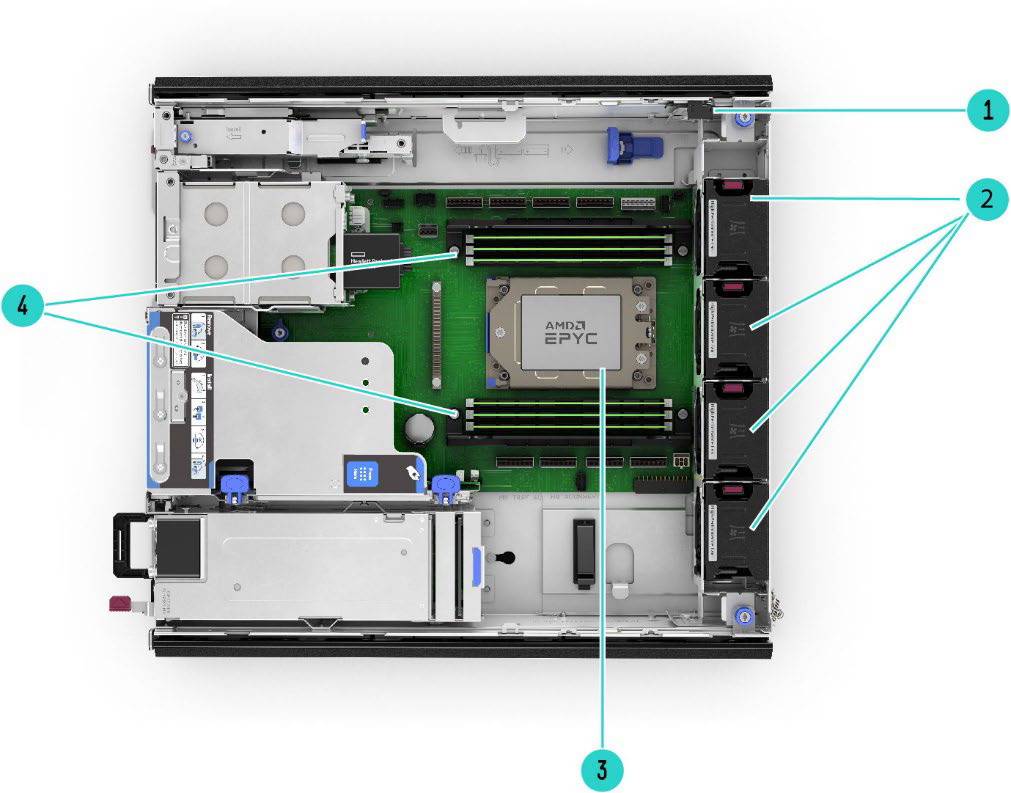

I/O Diagram (Side)

Key	Component
1	Chassis Intrusion Detection Switch
2	4 Hot Pluggable 2U Standard Fans. Optional: 2U Performance Fans.
3	Processor is shown with 2U Heat Sink (Default) Optional 1U Heat
4	6 DDR5 DIMM Slots

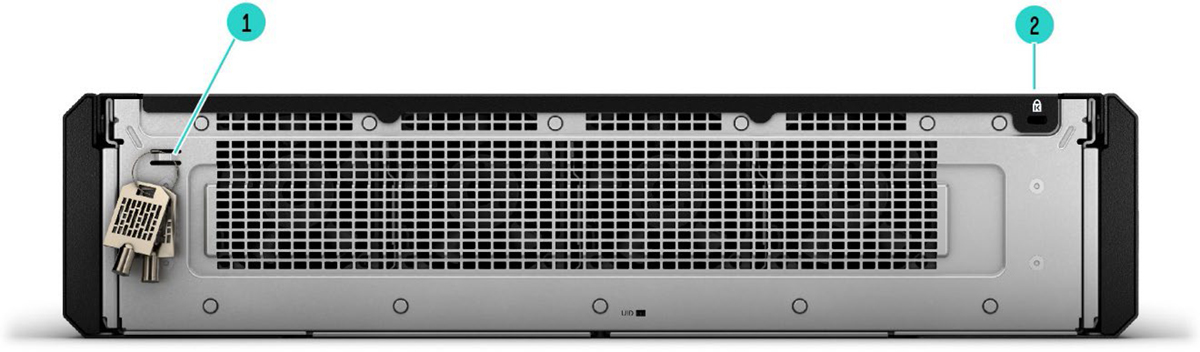

I/O Diagram (Back)

Key	Component
1	Access Panel Keys
2	Kensington Lock
