| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | HPP78087-425 |
| Manufacturer No: | P78087-425 |
| Delivery: | In Stock: Next Day |
 |
The HPE ProLiant DL20 Gen11 (Model:P78087-425) features a powerful Intel Xeon E-2434 processor running at 3.4 GHz with a boost frequency up to 5 GHz, delivering 4 high-performance cores and 12 MB of cache for efficient multitasking and processing power. Equipped with 32 GB of DDR5 memory clocked at 4800 MHz in a single slot, this server supports fast, reliable data handling suited for demanding edge workloads.
Powered by the Intel Xeon E-2434 processor, this DL20 Gen11 server delivers strong single-thread and multi-thread performance with 4 cores and up to 5 GHz turbo frequency. Its 32 GB DDR5 memory ensures fast data throughput, enabling smooth execution of business-critical edge applications.
The server includes two 480 GB SATA SSDs configured with RAID support for redundancy and improved data protection. The Trusted Platform Module (TPM) enhances security by safeguarding cryptographic keys and system integrity.
With four Gigabit Ethernet LAN ports powered by the Broadcom BCM5719 controller, the DL20 Gen11 ensures robust network connectivity. Its compact 1U rack chassis fits standard racks, making it ideal for space-constrained environments.

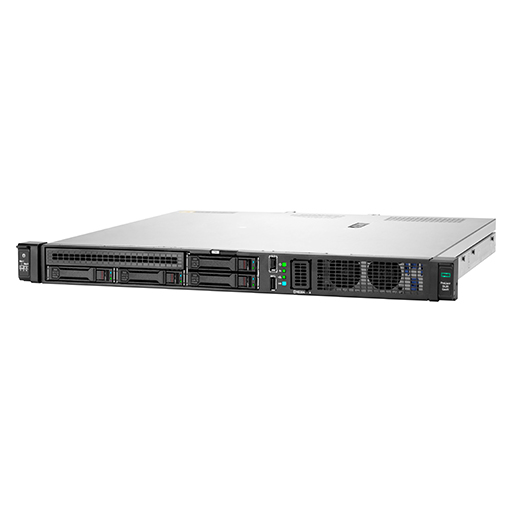

| Key | Component |
|---|---|
| 1 | Access Panel |
| 2 | Optical drive bay |
| 3 | Serial number/iLO information pull tab |
| 4 | iLO Service Port (USB) |
| 5 | System Power button/LED |
| 6 | NS204i-u device bay (optional) |
| 7 | Front Fan Assembly |
| 8 | Health LED |
| 9 | NIC Status LED1 |
| 10 | UID button/LED |
| 11 | USB 3.2 Gen 1 Port |
| 12 | Four-bay SFF hot-plug drive bays |
1. Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

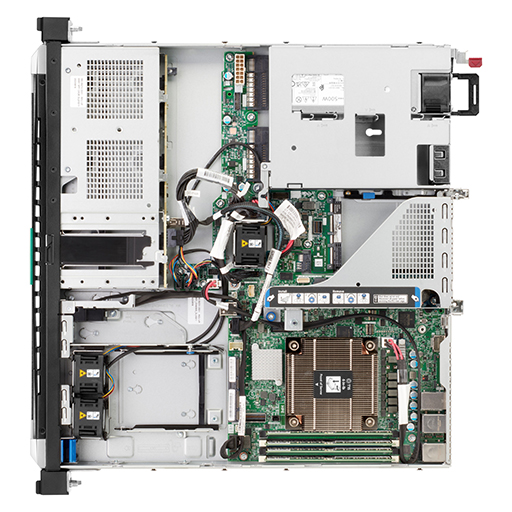

| Key | Component |
|---|---|
| 1 | Power Supply (1x500W shown) |
| 2 | M.2 Slot (Supports the iLO/M.2 Cable Kit option) |
| 3 | PCIe Riser |
| 4 | 4-pin processor power connector |
| 5 | 4 DDR5 DIMM slots |
| 6 | Processor shown with heatsink |
| 7 | Chassis intrusion detection switch connector |
| 8 | SlimSAS x8 port |
| 9 | Front I/O & USB 3.2 Gen 1 & iLO service port connector |
| 10 | Fan cage shown with 2 fans |
| 11 | Central fan assembly (3rd fan) |

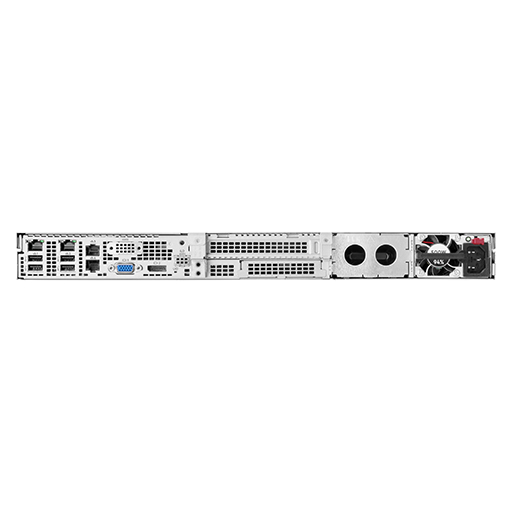

| Key | Component |
|---|---|
| 1 | NIC ports (1Gb) NIC port 1 - iLO and production data shared port |
| 2 | Serial Port (optional) |
| 3 | Slot 1 PCIe 5.0 |
| 4 | Redundant Power Supplies (2nd power supply not shown) |
| 5 | OCP 3.0 Slot |
| 6 | iLO dedicated network port (optional) |
| 7 | Display Port |
| 8 | VGA Port |
| 9 | USB 3.2 Gen1 ports |
1. Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
The HPE ProLiant DL20 Gen11 (Model:P78087-425) features a powerful Intel Xeon E-2434 processor running at 3.4 GHz with a boost frequency up to 5 GHz, delivering 4 high-performance cores and 12 MB of cache for efficient multitasking and processing power. Equipped with 32 GB of DDR5 memory clocked at 4800 MHz in a single slot, this server supports fast, reliable data handling suited for demanding edge workloads.
Powered by the Intel Xeon E-2434 processor, this DL20 Gen11 server delivers strong single-thread and multi-thread performance with 4 cores and up to 5 GHz turbo frequency. Its 32 GB DDR5 memory ensures fast data throughput, enabling smooth execution of business-critical edge applications.
The server includes two 480 GB SATA SSDs configured with RAID support for redundancy and improved data protection. The Trusted Platform Module (TPM) enhances security by safeguarding cryptographic keys and system integrity.
With four Gigabit Ethernet LAN ports powered by the Broadcom BCM5719 controller, the DL20 Gen11 ensures robust network connectivity. Its compact 1U rack chassis fits standard racks, making it ideal for space-constrained environments.
| Key | Component |
|---|---|
| 1 | Access Panel |
| 2 | Optical drive bay |
| 3 | Serial number/iLO information pull tab |
| 4 | iLO Service Port (USB) |
| 5 | System Power button/LED |
| 6 | NS204i-u device bay (optional) |
| 7 | Front Fan Assembly |
| 8 | Health LED |
| 9 | NIC Status LED1 |
| 10 | UID button/LED |
| 11 | USB 3.2 Gen 1 Port |
| 12 | Four-bay SFF hot-plug drive bays |
1. Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
| Key | Component |
|---|---|
| 1 | Power Supply (1x500W shown) |
| 2 | M.2 Slot (Supports the iLO/M.2 Cable Kit option) |
| 3 | PCIe Riser |
| 4 | 4-pin processor power connector |
| 5 | 4 DDR5 DIMM slots |
| 6 | Processor shown with heatsink |
| 7 | Chassis intrusion detection switch connector |
| 8 | SlimSAS x8 port |
| 9 | Front I/O & USB 3.2 Gen 1 & iLO service port connector |
| 10 | Fan cage shown with 2 fans |
| 11 | Central fan assembly (3rd fan) |
| Key | Component |
|---|---|
| 1 | NIC ports (1Gb) NIC port 1 - iLO and production data shared port |
| 2 | Serial Port (optional) |
| 3 | Slot 1 PCIe 5.0 |
| 4 | Redundant Power Supplies (2nd power supply not shown) |
| 5 | OCP 3.0 Slot |
| 6 | iLO dedicated network port (optional) |
| 7 | Display Port |
| 8 | VGA Port |
| 9 | USB 3.2 Gen1 ports |
1. Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
